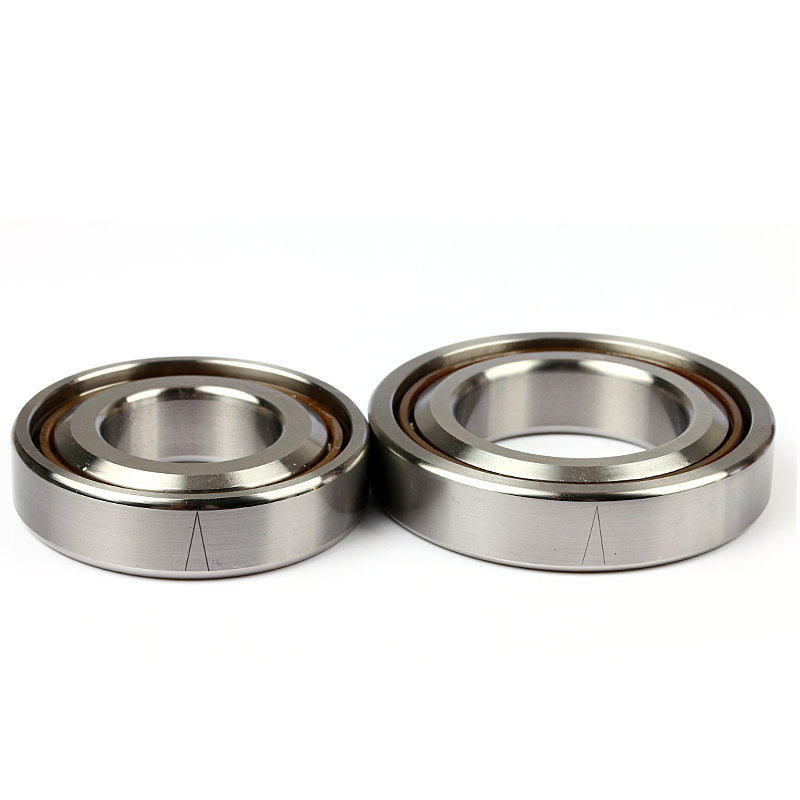

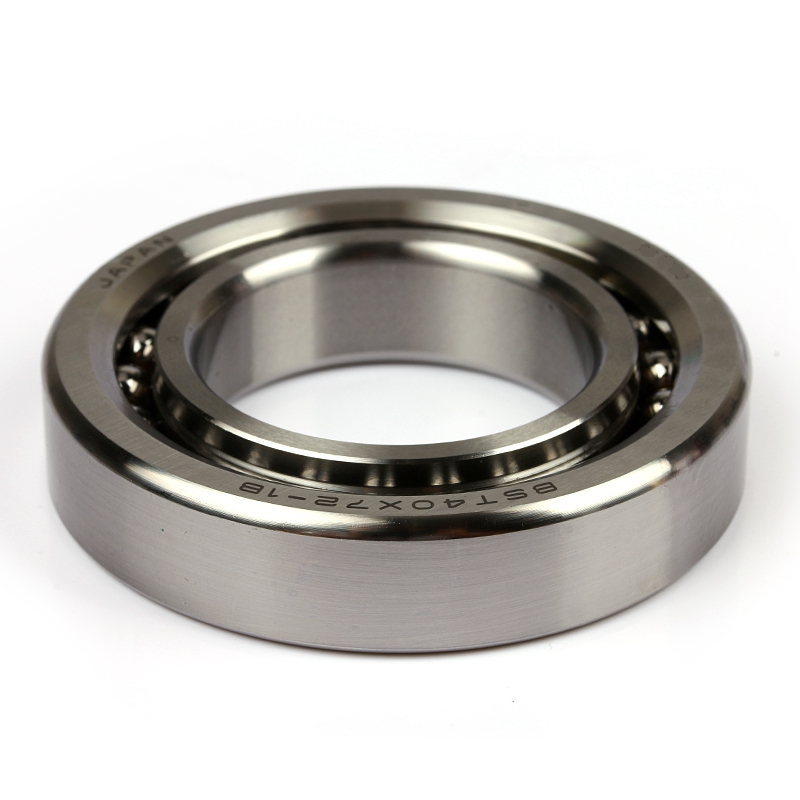

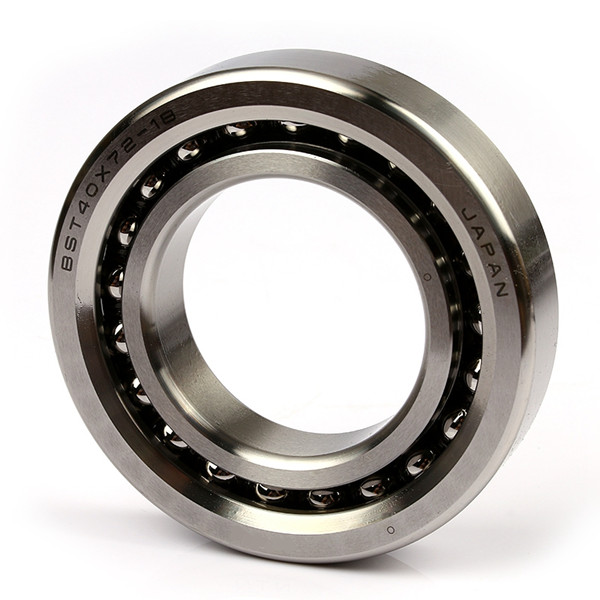

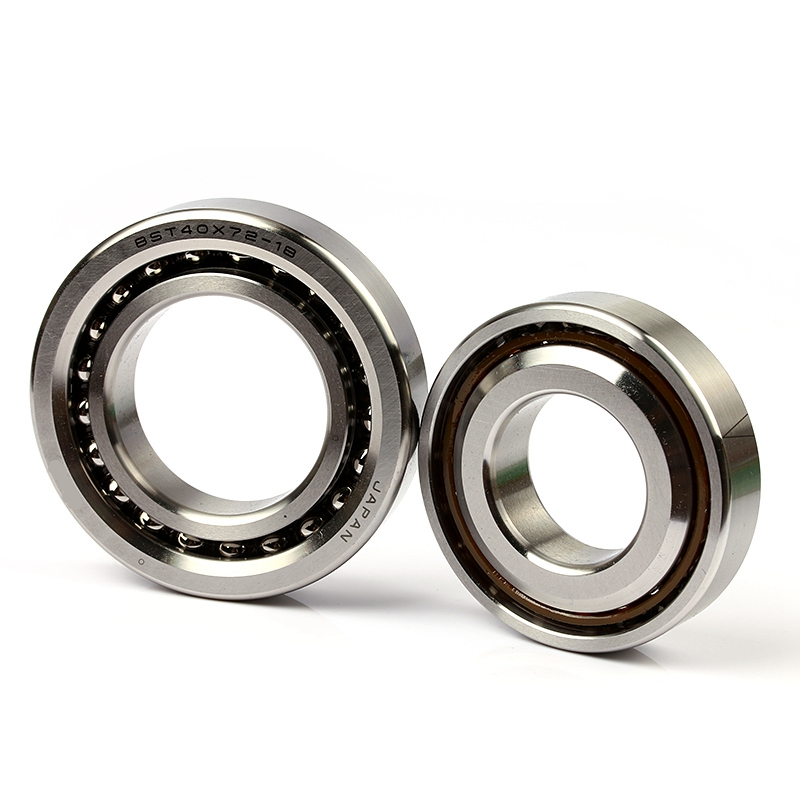

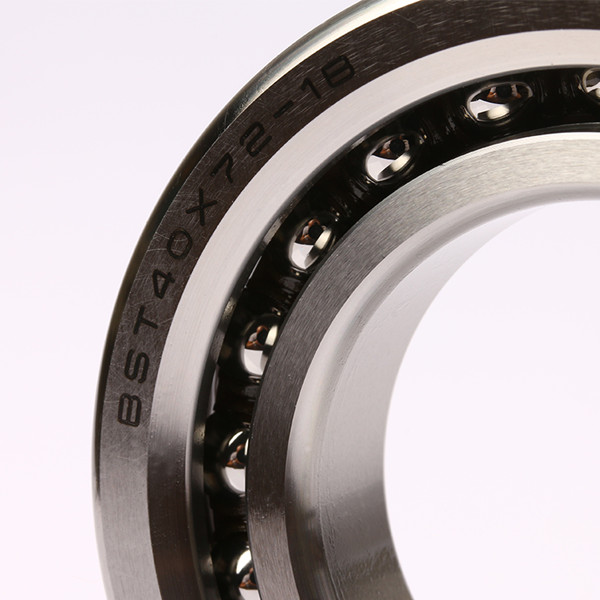

40TAB07DB back to back face to face paired bearing cnc angular contact ball ball screw support bearing 40TAB07 20TAC47

product information:

Internal diameter:17mm

External diameter:40mm

Width:17.5mm

Size: 17*40*17.5mm

Clearance:C0,C2,C3,C1,C4,C5,C6

application:vertical electric motor bearing

surface:Smooth and Antrust

Lubrication:Oil/grease dry

Material:Chrome steel/GCr15/Stainless steel/ceramic

Is customized: Yes (Drawings required)

Wholesale and freight: To provide you with accurate solutions

model	model	d(mm)	D(mm)	B(mm)
3200	5200	10	30	14.3
3201	5201	12	32	15.9
3202	5202	15	35	15.9
3302	5302	15	42	19
3203	5203	17	40	17.5
3303	5303	17	47	22.2
3204	5204	20	47	20.6
3304	5304	20	52	25.4
3205	5205	25	52	20.6
3305	5305	25	62	25.4
3206	5206	30	62	23.8
3306	5306	30	72	30.2
3207	5207	35	72	27
3307	5307	35	80	34.9
3208	5208	40	80	30.2
3308	5308	40	90	36.5
3209	5209	45	85	30.2
3309	5309	45	100	39.7
3210	5210	50	90	30.2
3310	5310	50	110	44.4



model	model	d(mm)	D(mm)	B(mm)
3211	5211	55	100	33.3
3311	5311	55	120	49.2
3212	5212	60	110	36.5
3312	5312	60	130	54
3213	5213	65	120	38.1
3313	5313	65	140	58.7
3214	5214	70	125	39.7
3314	5314	70	150	63.5
3215	5215	75	130	41.3
3315	5315	75	160	68.3
3216	5216	80	140	44.4
3217	5316	80	170	68.3
3218	5217	85	150	49.2
3219	5317	85	130	73
3220	5218	90	160	52.4







Product name	angular contact Ball Bearing
Brand name	YWS or OEM Brands
ID size	Standard and non-standard sizes available
Material	Chrome Steel
Closures	Open, metal Sealed, rubber sealed, Nylon sealed
Types	Open,Z,ZZ,RS,2RS,RZ,2RZ. For non standard bearing, there are many different types with various sizes for our clients. We also can design or develop customized products as the samples or drawings provided by our clients.
Delivery date	7-25 days
Payment terms	A: 30% T/T in advance .70% against copy of B/L B.30% T/T in advance .70% against L/C at sight C.Western union D.Paypal
About us	Established in 2004, Jinan Henghui bearing Co., Ltd. is a sino-japanese joint ventured company
Package	A.Polybag +Box+Carton B.Tube+Box+Carton C.As the customer's request

Sincerely welcome to send enquiry to us!!!
