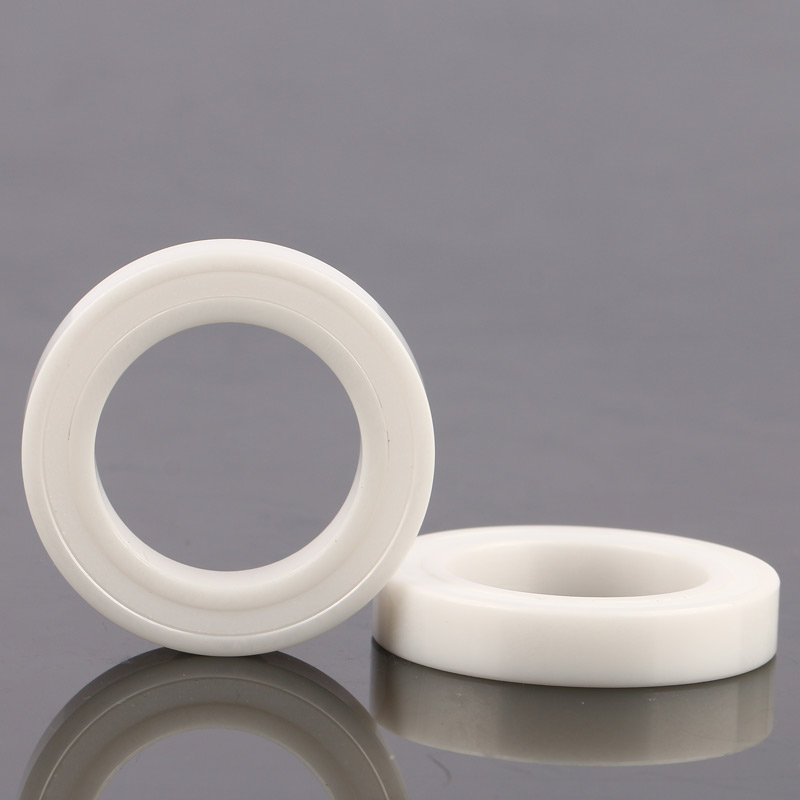

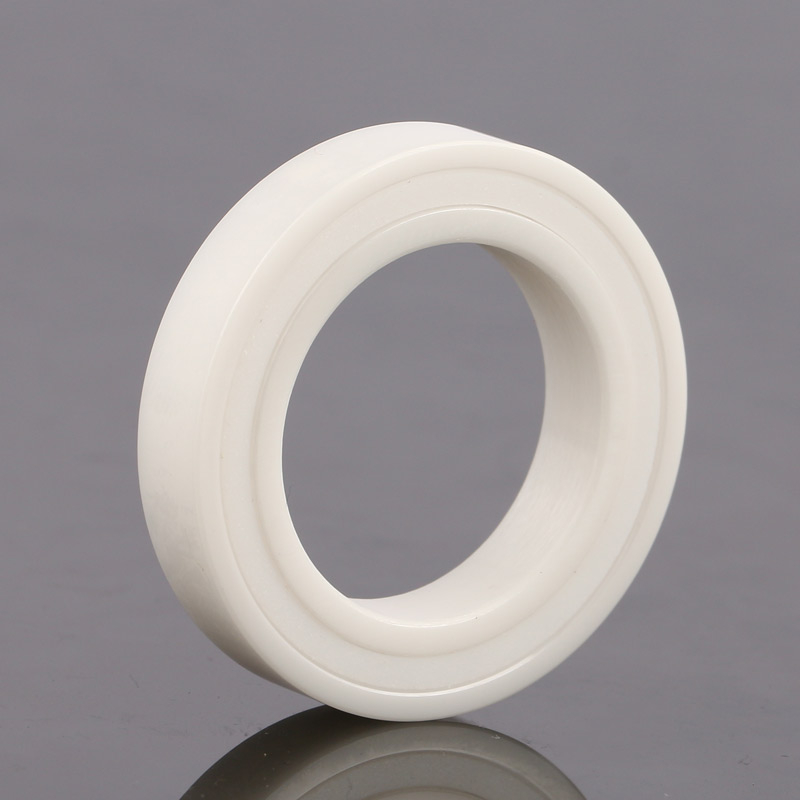

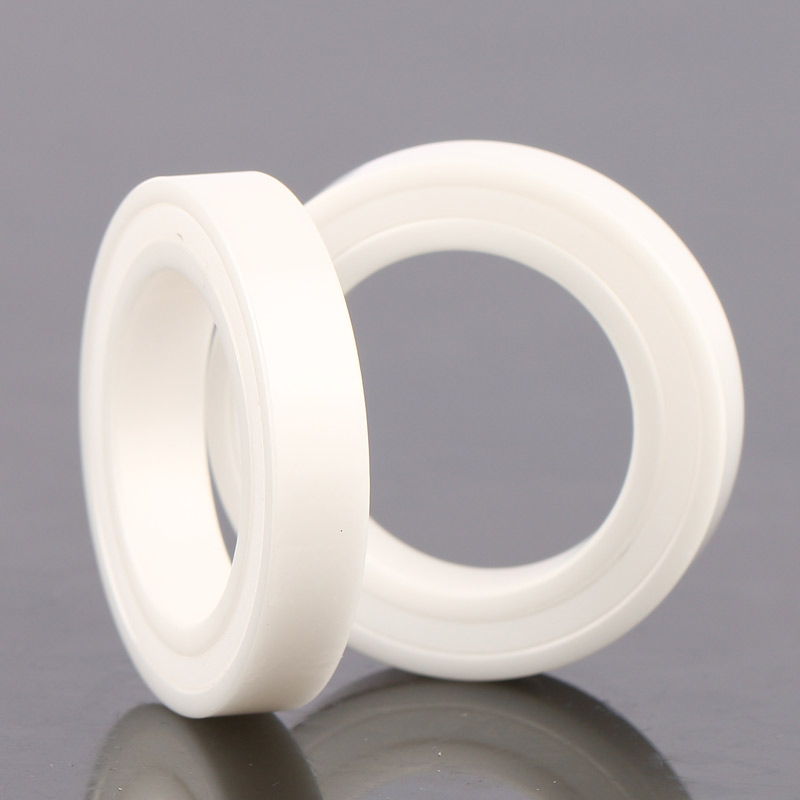

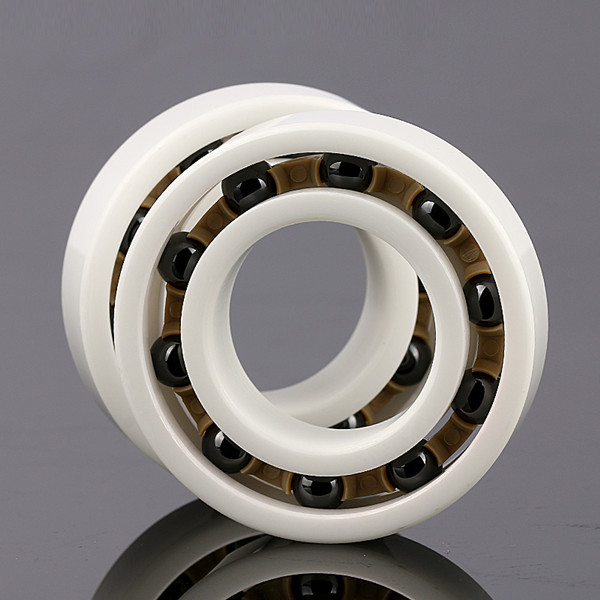

7005
YWS or OEM
OEM Customized Services
Product Details
product information:
Structure:Deep Groove
Type:Ball, ball bearing
Brand Name:YWS
Internal diameter:25mm
External diameter:47mm
Width:12mm
size:25×47×12mm
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：
The bearing has durability and resistance to deformation under heavy loads. The 20 degree contact angle of the ball relative to the raceway gives the bearing greater capacity to support the thrust load on the bearing with a standard contact angle of zero degrees. Rubber seals on both sides of the bearing prevent contamination such as dust and dirt and maintain the lubricant used in manufacturing. The bearing cage prevents the balls from coming into contact with each other during use, reducing friction, vibration and noise. Bearings have a normal axial internal clearance name for applications where load and speed do not cause thermal expansion. This gap provides latitude for automatic rearrangement and compensates for static and dynamic alignment errors. The angular contact ball bearings are used in commercial and industrial applications, including pumps and compressors, automotive drives, gearboxes and printing presses.
Product features：
Double row angular contact ball bearings for combined radial and bidirectional thrust loads
The ball contact angle is 20 degrees with respect to the inner and outer races, increasing the thrust load capacity.

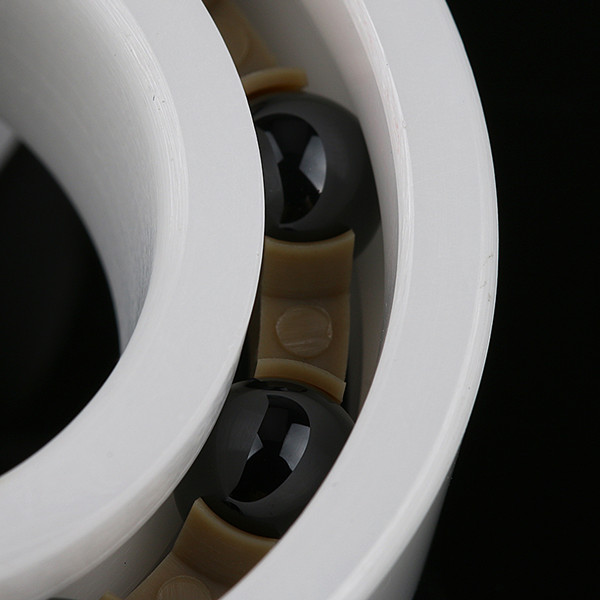

The cage evenly separates the balls to reduce friction, vibration and noise
Normal axial internal clearance is suitable for applications where thermal expansion is not a factor
Specifications:
Features and specification of YWS bearing | |
Ring Material | Bearing steel CHROME STEEL |
Cage | Gcr15 |
Quality standard | ISO9001:2000 |
Precision | P0, P3,P4,P6,P5 |
Clearance | C0,CM,C2, C3, C4 |
Vibration & Noisy | Z1,Z2,Z3 V1,V2,V3,V4 |
Delivery date | Depend On Your Quantity |
Payment Term 1 | 30% T/T in advance, 70% T/T against copy of B/L |
Payment Term 2 | 100% L/C at sight |
service | OEM |
Packing | According to the buyer requests for packaging |
Application | Home appliances, low noise and high speed electric motor |
| automotive components, pumps, machinery. |
part number
Angular contact ball bearings product catalogue |
706C , B706C series | 706C 707C 708C 709C B706C B707C B708C B709C |
724C series | 724C 725C 726C 727C 728C 729C | |
7000C series | 7000 7001 7002 7003 7004 7005 7006 7007 7008 7009 7010 7011 7012 7013 7014 7015 7016 7017 7018 7019 7020 7021 7022 7024 7026 7028 7030 7032 7034 7036 7038 7040 | |
7200C series | 7200 7201 7202 7203 7204 7205 7206 7207 7208 7209 7210 7211 7212 7213 7214 7215 7216 7217 7218 7219 7220 7221 7222 7224 7226 7228 7230 7232 7234 7236 7240 7244 7248 | |
7303C series | 7303 7304 7305 7306 7307 7308 7309 7310 7311 7312 7313 7314 7315 7316 7317 7318 7319 7320 7322 7324 7328 7330 7332 7336 7340 | |
7406 series | 7406 7407 7408 7409 7410 7411 7412 7413 7414 7415 7416 7418 | |
71900 series | 71900 71901 71902 71903 71904 71905 71906 71907 71908 71909 71910 719011 71912 71913 71914 71915 71916 71917 71918 71919 71920 71922 71924 71926 71928 71930 71932 71934 71936 71938 71940 | |
3200/5200 series | 3200 3201 3202 3203 3204 3205 3206 3207 3208 3209 3210 3211 3212 3213 3214 3216 3218 3219 | |
3302/5302 series | 3302 3303 3304 3305 3306 3307 3308 3309 3310 3311 3312 3313 3314 3315 3316 | |
QJ208 series | QJ208 QJ212 QJ215 QJ219 QJ220 QJ222 QJ224 QJ226 QJ230 QJ232 QJ234 QJ236 | |
QJ307 | QJ307 QJ313 QJ314 QJ315 QJ316 QJ317 QJ318 QJ319 QJ320 QJ322 QJ324 QJ326 QJ328 |
