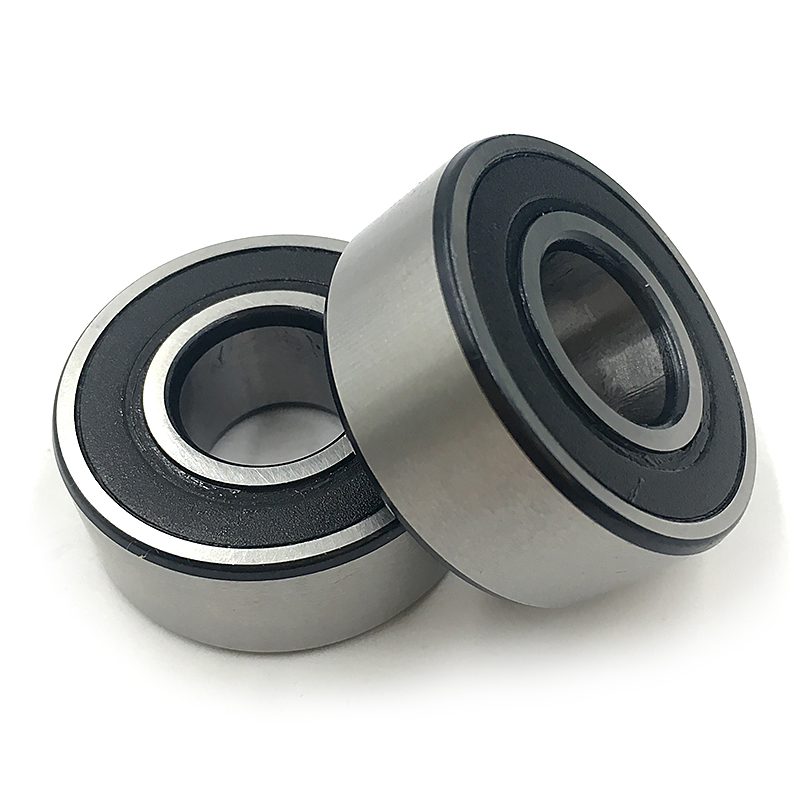

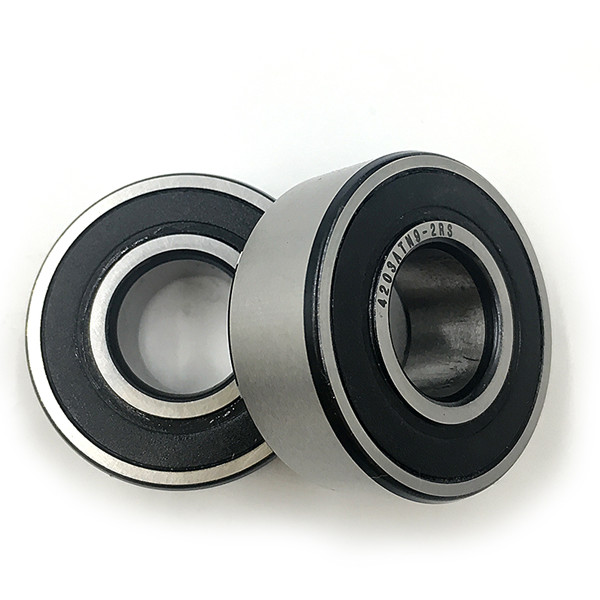

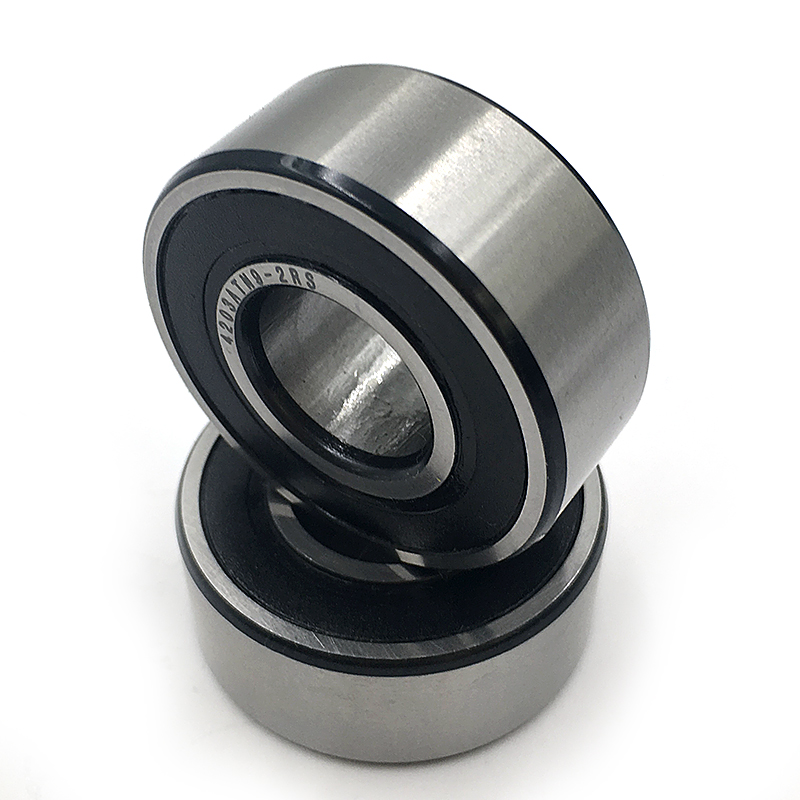

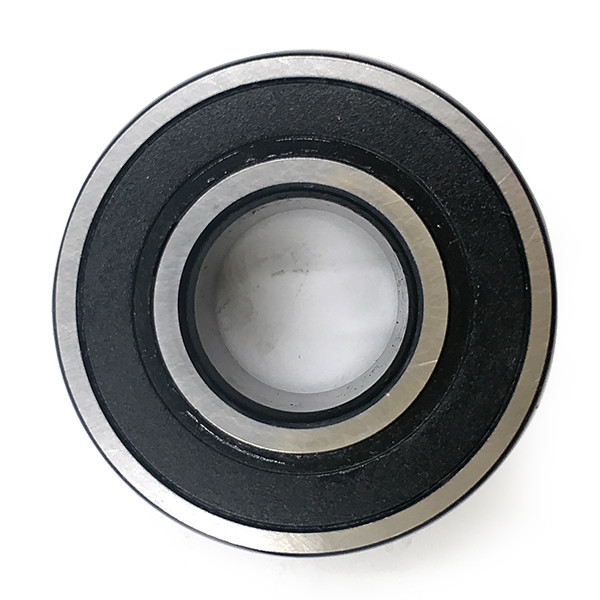

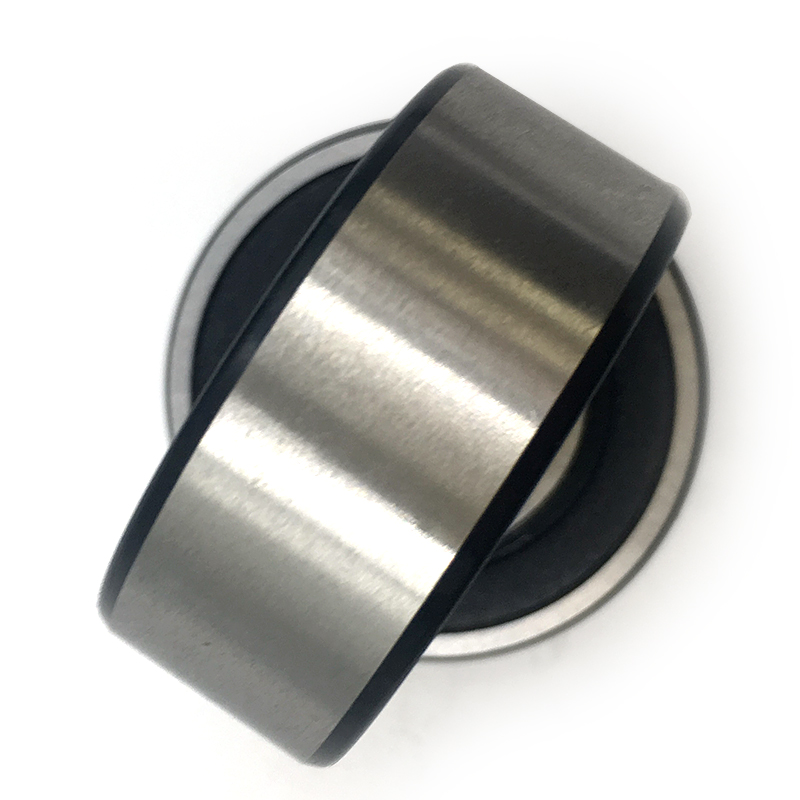

double row angular contact ball bearing 3304-2rs

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 3304-2rs

  • YWS or OEM

  • OEM Customized Services

Availability:
Inquire

Product Details

double row angular contact ball bearing 3304-2rs


product information:


Structure:angular contact

Type:angular contact ball bearing

Brand Name:YWS

Internal diameter:20mm

External diameter:52mm

Width:22.2mm

size:20x52x22.2mm

Weight:0.22kg

Load Rating(Cr):18400 N

Load Rating(Cor):11400 N

Grease r/mim:8400

Oil r/min:10000

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.



Product description：



General

Double row angular contact ball bearings provide the function of a pair of single row angular contact ball bearings, arranged back-to-back, but requiring less space.

Double row angular contact bearings provide very stiff, rigid bearing arrangements. They are also able to accommodate combined loads and are very suitable in supporting tilting moments.

Misalignment

Double row angular contact ball bearings must not be exposed to any misalignment.

Minimum Load

Bearings require a minimum load under all operating conditions to ensure kinematically correct rolling element function.

For double row angular contact ball bearings the minimum load must be 1% of the dynamic load rating.

Pruduct Applications

Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy-Duty Precision Boring Spindle, Six-Spindle Automatic Screw Machine, Ultra Precision Grinding Work-head, Precision Tool-room Surface Grinder Spindle, etc.


The Application:


3304 bearing is widely used in automobiles, tractors, machine tools, motors, pumps, agricultural machinery, textile machinery, etc.


The 32/33 series double row angular contact ball bearing models and sizes:


ModelsID mmOD mmWidth mmRsmin mmCr NCor NGrease r/mimOil r/minWeight (kg)
3200103014.30.66200340016000190000.054
3201123215.90.68200450014000170000.058
3202153515.90.69000540013000160000.066
33021542190.613500820010600126000.13
3203174017.50.611500710011000130000.1
3303174722.20.618000108009400110000.18
3204204720.6116700108009400110000.16
3304205222.21.118400114008400100000.22
3205255220.6118200126008400100000.18
3305256225.41.12740018400710084000.35
3206306223.812500018000710084000.29
3306307230.21.13500024700600071000.53
32073572271.13330024700600071000.44
3307358030.21.14350030500530063000.53
3208408030.21.13800029200530063000.58
3308409036.51.55300038700470056000.95
3209458530.21.14320033000500060000.63
33094510039.71.56400048200420050001.4
3210509032.21.14260035100450053000.66
33105011044.427690085000380045001.95
32115510033.31.55140047000420050001.05
33115512049.228560073000330040002.55
32126011036.51.56480052600380045001.4
331260130542.110050085000320038003.25
32136512038.11.57010065200350042001.75
33136514058.72.111500098000300035004.1
32147012539.71.57010065200320038001.9
33147015063.52.1121000103000250032005.05
32157513041.31.57500072400320038002.1

Sincerely welcome to send enquiry to us!!!
