F10-18M
YWS or OEM
OEM Customized Services
Product Description
product information:
Structure:thrust ball bearing
Type:thrust ball bearing
Brand Name:YWS
Internal diameter:10mm
External diameter:18mm
Width:5.5mm
size:10x18x5.5 mm
weight:0.194 ounces
Material:Chrome steel/GCr15/Stainless steel/ceramic/ZrO2
Is customized: Yes (Drawings required)
Wholesale and freight: To provide you with accurate solutions
Tips: Please contact us for details of the required products.
Product description：
The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.

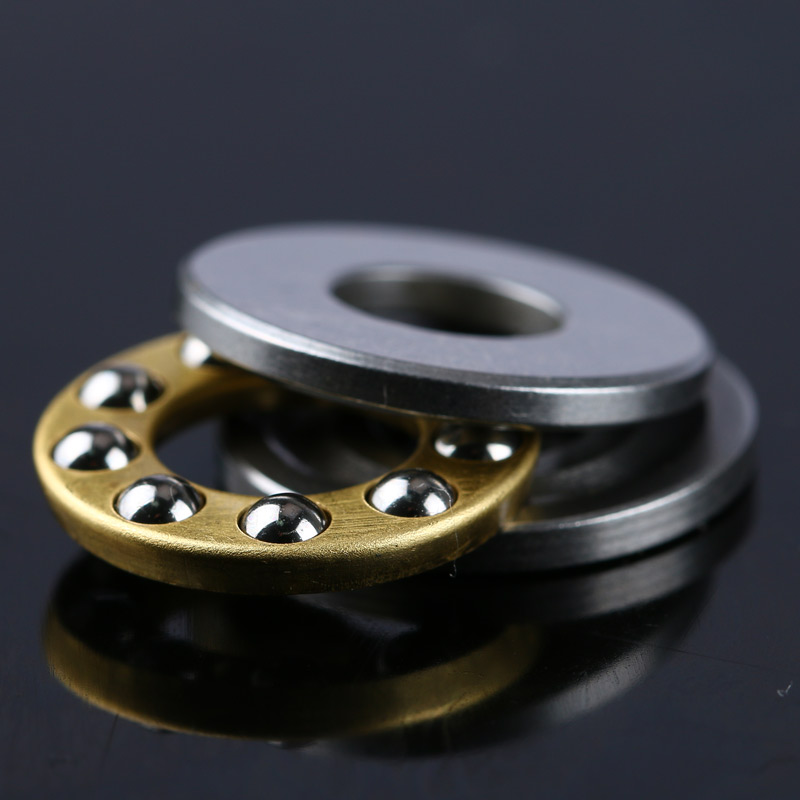

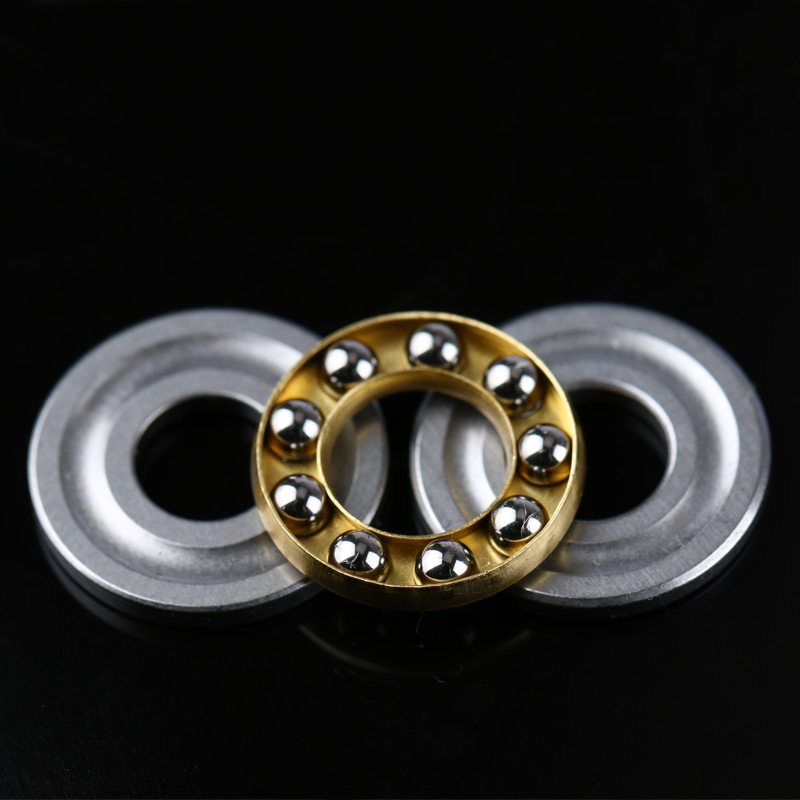

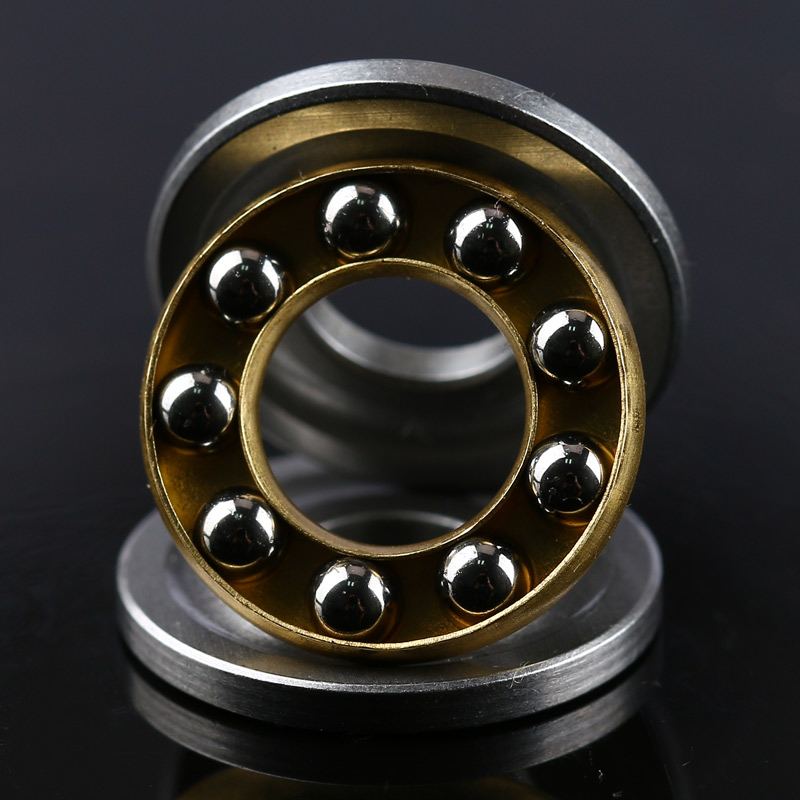

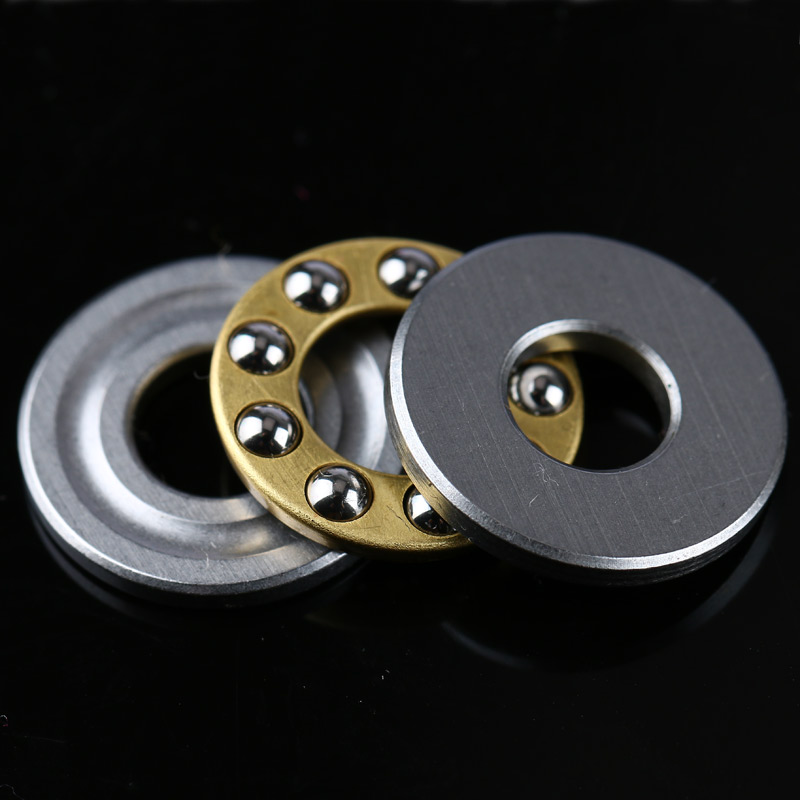

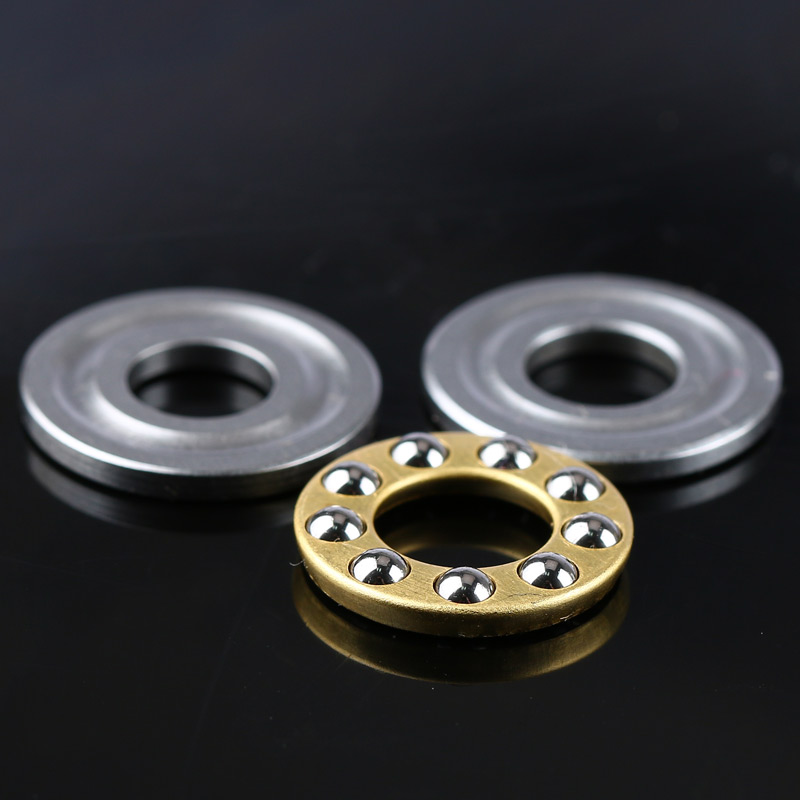

Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.
They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.
Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.
Product features：
High precision, fast speed, long life, uniformly load distributed, can withstand high thrust loads.
High performance, low noise, long life, adopts hydrogen nitriding process, high tensile strength.
Suitable for the general usage of meter machine, pipeline system, mold mold production.
| Size | stell balls | Weight | RPM r/min | load | ||||||
| Model number | ID | OD | H | balls quantity | Diameter | KG | grease | Oil | Co(KN) | C(KN) |
| F2.5-6 | 2.5 | 6 | 3 | 6 | 1.2 | 0.0007 | 16000 | 17500 | 0.6 | 85 |
| F3-8 | 3 | 8 | 3.5 | 7 | 1.588 | 0.001 | 9100 | 11700 | 0.72 | 0.9 |
| F4-9 | 4 | 9 | 4 | 8 | 1.588 | 0.0012 | 8800 | 11400 | 0.72 | 0.84 |
| F4-10 | 4 | 10 | 4 | 9 | 1.588 | 0.0016 | 8800 | 11400 | 0.72 | 0.84 |
| F5-10 | 5 | 10 | 4 | 9 | 1.588 | 0.0015 | 8500 | 11100 | 0.72 | 0.79 |
| F5-11 | 5 | 11 | 4.5 | 9 | 1.588 | 0.0021 | 8500 | 11100 | 1.7 | 1.81 |
| F5-12 | 5 | 12 | 4 | 9 | 1.58 | 0.0022 | 8500 | 11100 | 0.79 | 0.72 |
| F6-11 | 6 | 11 | 4.5 | 9 | 1.588 | 0.002 | 8500 | 11100 | 1.7 | 1.81 |
| F6-12 | 6 | 12 | 4.5 | 9 | 2 | 0.0024 | 5000 | 7000 | 1.9 | 1.96 |
| F6-14 | 6 | 14 | 5 | 5 | 2.381 | 0.0036 | 4000 | 7000 | 1.9 | 1.96 |
| F7-13 | 7 | 13 | 4.5 | 9 | 2 | 0.0025 | 4000 | 7000 | 1.9 | 1.96 |
| F7-15 | 7 | 15 | 5 | 8 | 3 | 0.004 | 3600 | 7000 | 1.91 | 1.975 |
| F7-15 | 7 | 15 | 5.5 | 9 | 2.381 | 0.004 | 3600 | 7100 | 1.91 | 1.974 |
| F7-17 | 7 | 17 | 6 | 6 | 3 | 0.006 | 3500 | 7100 | 2.56 | 3.15 |
| F8-16 | 8 | 16 | 5 | 9 | 3 | 0.004 | 4000 | 7000 | 1.88 | 1.943 |
| F8-19 | 8 | 19 | 7 | 10 | 3.175 | 0.009 | 3000 | 8000 | 3.5 | 3.85 |
| F9-17 | 9 | 17 | 5 | 10 | 3 | 0.0045 | 3400 | 5000 | 1.898 | 1.75 |
| F9-20 | 9 | 20 | 7 | 7 | 3.175 | 0.0089 | 2500 | 4500 | 3.5 | 3.85 |
| F10-18 | 10 | 18 | 5.5 | 10 | 3.175 | 0.006 | 2500 | 4500 | 2.56 | 3.15 |
| F12-21 | 12 | 21 | 5 | 11 | 3 | 0.006 | 1800 | 3000 | 2.1 | 2.6 |
| F12-23 | 12 | 23 | 7.5 | 11 | 3 | 0.013 | 1800 | 3000 | 3.605 | 3.9 |
| 2805 | 11.1 | 22.2 | 6.35 | 11 | 3 | 0.01 | 1800 | 3000 | 2.35 | 2.9 |
