6003 2rs
YWS or OEM
OEM Customized Services
Product Details

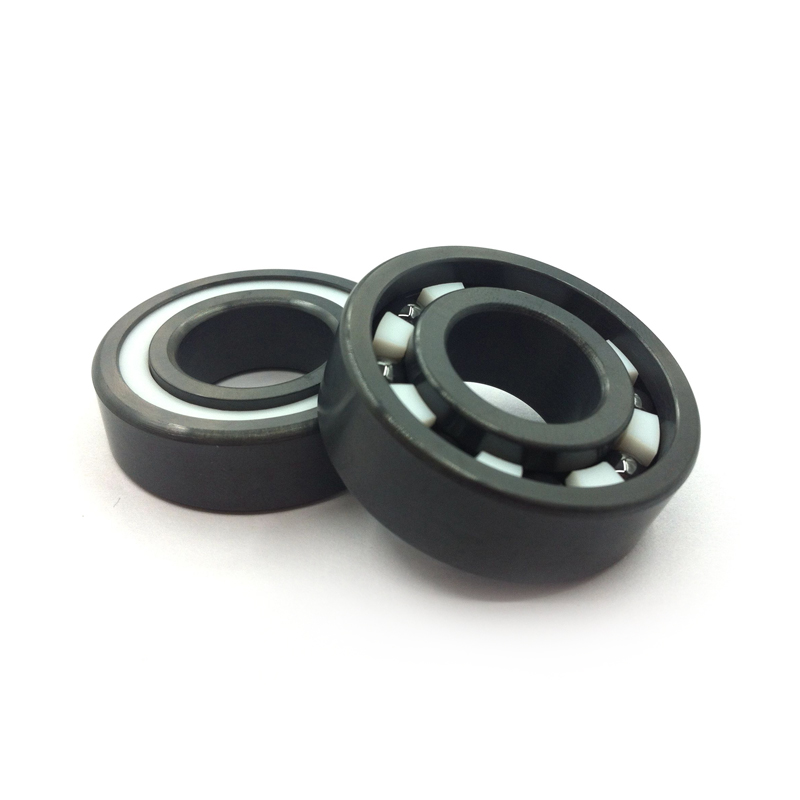

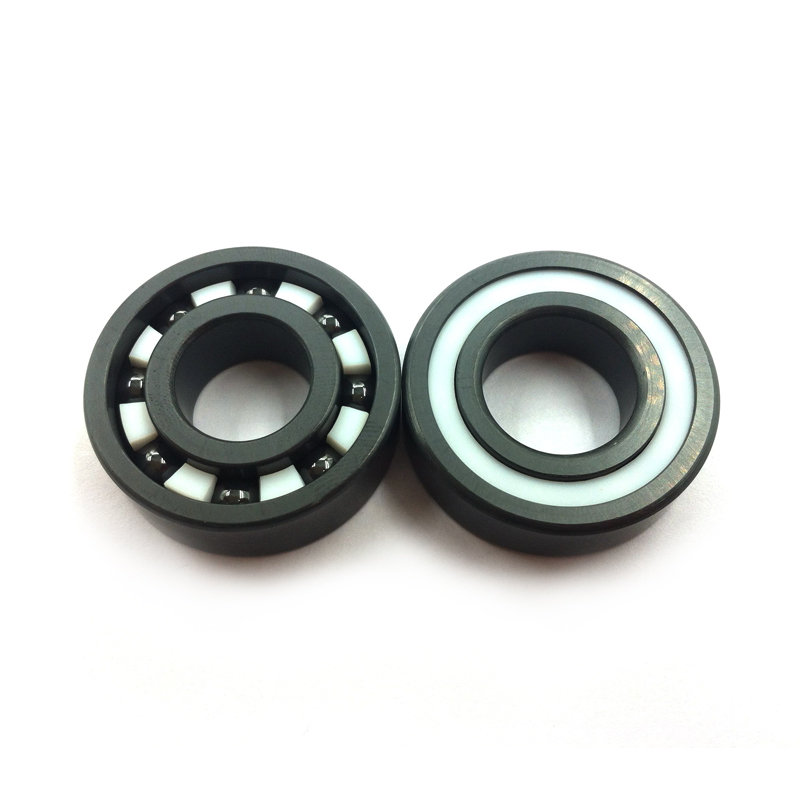

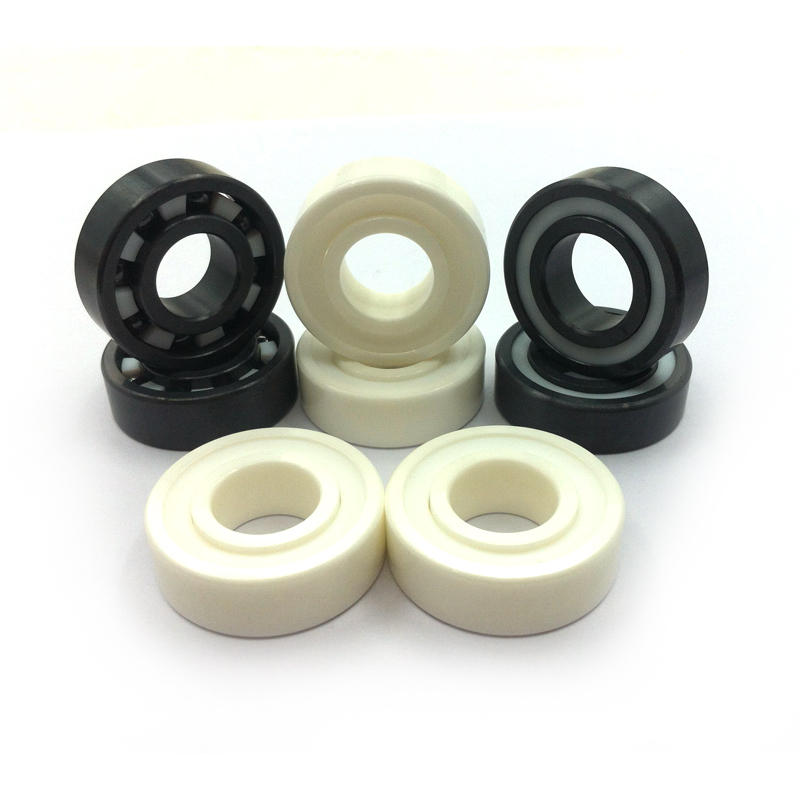

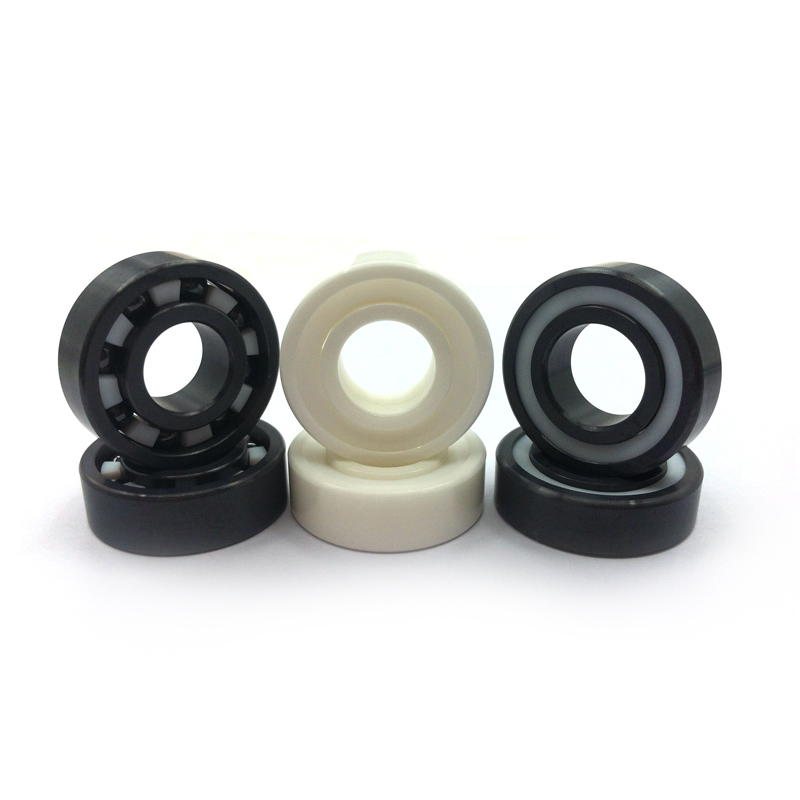

6003 2rs si3n4 ceramic ball bearing ceramic ring bearing
product information:
Structure:Deep Groove
Type:Ball, ball bearing
Brand Name:YWS
Internal diameter:17mm
External diameter:35mm
Width:10mm
size:17×35×10mm
Weight:0.036kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：
Single row radial ball bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads. This design permits precision tolerances even at high speed operation. Shielded bearings are protected on one, or both sides (suffixes Z and ZZ, respectively) by metal shields fastened to the outer ring. This close clearance labyrinth seal retains the lubricant and prevents the entrance of foreign matter. The sealed bearing is rubber-sealed and securely fastened in the groove on the outer ring.Contact with the inner ring is by sealing lip (Contact Suffix LLU). Or, non-contact with the inner ring is by labyrinth seal (Non-contact Suffix LLB) to provide positive sealing at all times.
Product features：
Deep groove geometry for high speeds
Single row for supporting radial loads
Shields on both sides to keep lubricant in and contaminants out
CN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision
High quality hot sale deep groove ball bearing:
1.Deep groove ball bearing
2.Long life and low noise
3.Good stock guarantee
4.Perfect service
5.Good price
Deep Groove Ball Bearing Manufacturer From Shandong,China, with more than 10 years' experience.
No.1: Our Product Range: ball bearing
No.2: Ball Bearing Specification:
some bearings size:
Item No. | d | B | D | rs | cr | cor | weight | ball no. | ball size |
| (mm) | (mm) | (mm) |
| (kn) | (kn) | (kg) |
| (mm) |
6200zz | 10 | 30 | 9 | 0.6 | 5.1 | 2.39 | 0.032 | 8 | 4.763 |
6201zz | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 0.037 | 7 | 5.953 |
6202zz | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 0.045 | 8 | 5.953 |
6203zz | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 0.066 | 8 | 6.747 |
6204zz | 20 | 47 | 14 | 1.0 | 12.8 | 6.65 | 0.106 | 8 | 7.938 |
6205zz | 25 | 52 | 15 | 1.0 | 14 | 7.85 | 0.128 | 9 | 7.938 |
6206zz | 30 | 62 | 16 | 1.0 | 19.5 | 11.3 | 0.199 | 9 | 9.525 |
6207zz | 35 | 72 | 17 | 1.1 | 25.7 | 15.3 | 0.288 | 9 | 11.112 |
6208zz | 40 | 80 | 18 | 1.1 | 29.1 | 17.8 | 0.366 | 9 | 12.0 |
6209zz | 45 | 85 | 19 | 1.1 | 32.5 | 20.4 | 0.398 | 10 | 12.0 |
6210zz | 50 | 90 | 20 | 1.1 | 35.0 | 23.2 | 0.454 | 10 | 12.7 |
NO.3 Applications:
Power Tools
Fans
Washing Machines
Pumps
Electric Motors
Sport Apparaus
Textile Machined
Skateboard,Skates
Sincerely welcome to send enquiry to us!!!
