8*22*7mm full zro2 Zirconia ceramic ball bearing 608 2rs zirconia ceramic

8*22*7mm full zro2 Zirconia ceramic ball bearing 608 2rs zirconia ceramic

product information:

Structure:Deep Groove

Type:Ball, ball bearing

Brand Name:YWS

Internal diameter:8mm

External diameter:22mm

Width:7mm

size:8×22×7mm

weight：0.0012kg

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Product description：

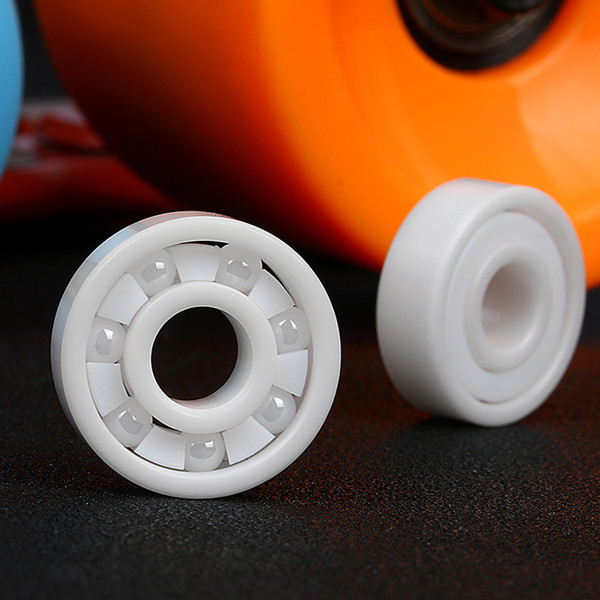

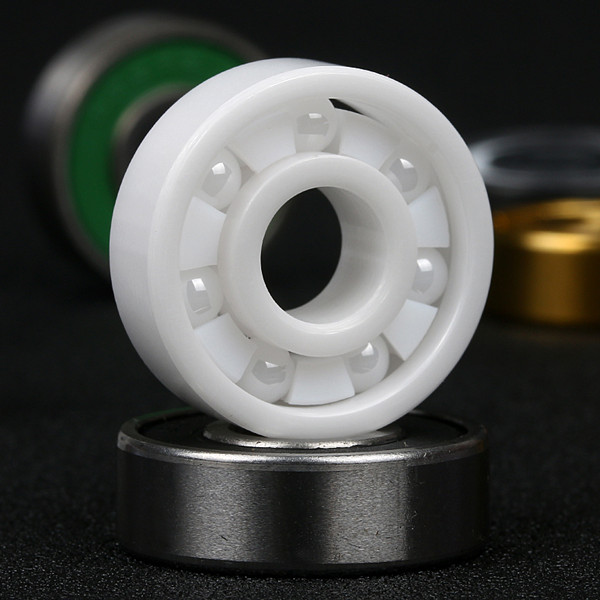

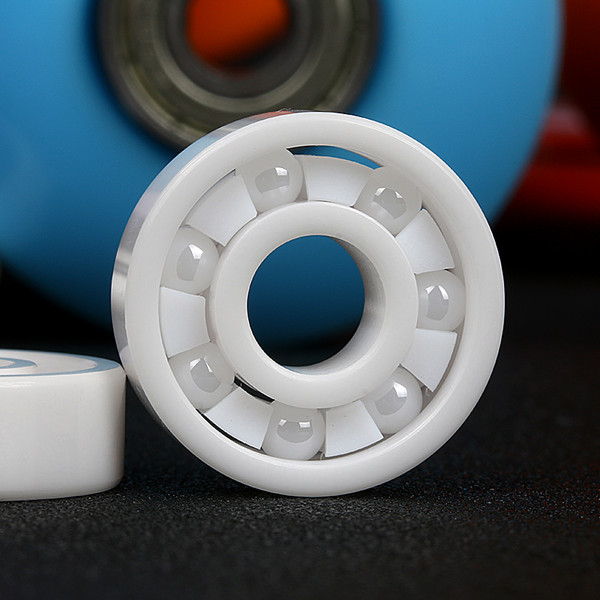

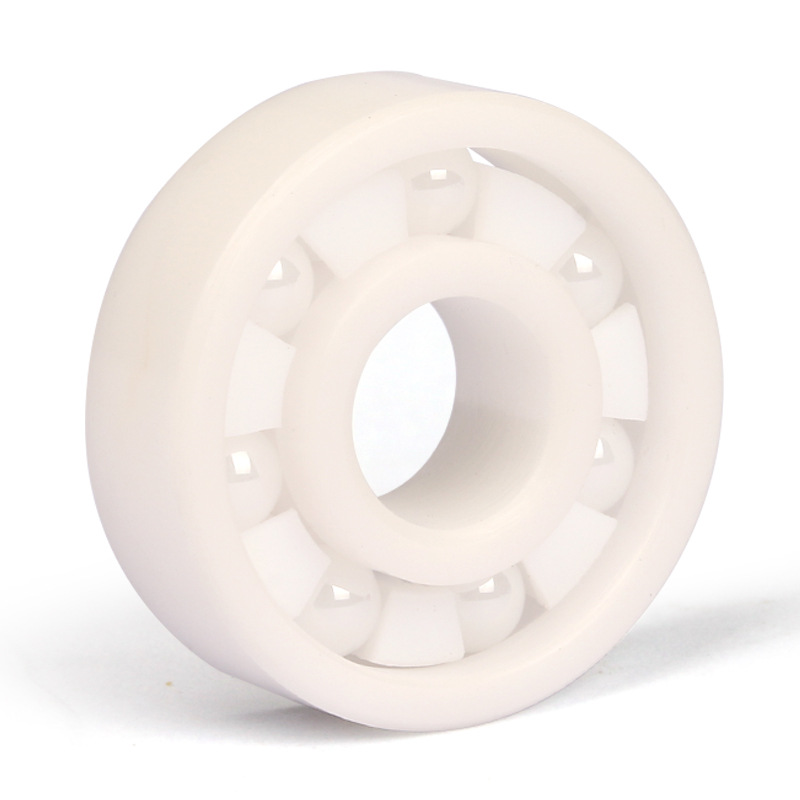

This 608 ball bearing has races made of zirconium oxide, balls made of silicon nitride ceramic, and a cage made of PTFE. It has an 8 mm inside diameter, a 22 mm outside diameter, and a 7 mm depth. The bearing has deep groove geometry for supporting both radial and axial loads and high speeds. The races are made of zirconium oxide ceramic for durability and resistance to corrosion and high temperatures. The bearing is open on both sides for lubricating in place. The ball is made of silicon nitride ceramic for resistance to shock, corrosion, and high temperatures. A one-piece polytetrafluoroethylene (PTFE) cage spaces the balls for even load distribution and prevents contact to reduce friction, vibration, and noise. This deep groove ball bearing is used in applications such as skateboards and rollerblades, among others.

Product features：

Deep groove geometry for supporting both radial and axial loads and high speeds

Zirconium oxide ceramic for durability and resistance to corrosion and high temperatures

Open on both sides for lubricating in place

Silicon nitride ceramic balls for resistance to shock, corrosion, and high temperatures

Kind:

Other series:

6000 series: 6000 to 6028  OPEN,ZZ and 2RS TYPE
6200 series: 6200 to 6232  OPEN,ZZ and 2RS TYPE
6300 series: 6301 to 6328  OPEN,ZZ and 2RS TYPE
6400 series: 6403 to 6428  OPEN,ZZ and 2RS TYPE
Bearings Miniature series:  603,604,605,607,608,606,609,623,624,625,626,628,629,616,
673,674,675,676,678,679
681,682,683,684,685,686,687,688,689, 691,692,693,694,695,696,697,698,699,
6700 series  OPEN,ZZ and 2RS TYPE
6800 series  OPEN,ZZ and 2RS TYPE
6900 series  OPEN,ZZ and 2RS TYPE
1600 series  OPEN,ZZ and 2RS TYPE
16000 series  OPEN,ZZ and 2RS TYPE
Bearings R SERIES : R6,R8,R10,R12,R14,R16,R18,R20,R22,R244
Bearings RLS series: RLS4, RLS5,RLS6,RLS7,RLS8,RLS9,RLS10RLS11,RLS12
MR83,MR85,MR105, ETC

some size:

Applications:

• Power Tools

• Fans

• Washing Machines

• Pumps

• Electric Motors

• Sport Apparaus

• Textile Machined

• Skateboard,Skates

Advantage of the deep groove ball bearing:

• Sustain radial,acial,or compasite load.

• Provide both high-running accuracy &high-speed operation

• Can replace high speed angular contact ball bearings.

Sincerely welcome to send enquiry to us!!!
