Supplier 35x72x17mm 6207 high performance ceramic bearings

product information：

Specifications Model: 6207-2RS  6207 ZZ

External Design: Double Seal

Bore Diameter: 35 mm

Outer Diameter: 72 mm

Thickness: 17 mm

Single Weight: 0.3 Kg

Type: Bearing / Ball bearings / Deep Groove Ball Bearings / Single Row / Double Seal.

Specifications

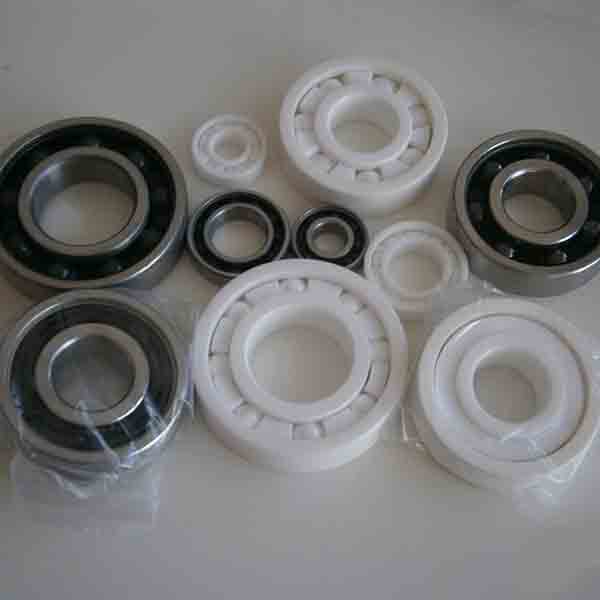

High performance ceramic bearings:
1.Number of Row: Single Row
2.Seals Type: OPEN.2RS.ZZ
3.Precision Rating: P0 P6 P5

Product features：

Single-row deep groove geometry for high speeds and supporting both radial and axial loads

Normal radial internal clearance for applications that do not involve thermal expansion or atypical precision

Conforms to ABEC 1 precision standard

Open bearing for lubrication in place

"Light" bearing structure for use in limited space applications or for average loads

Product description：

This 6207 deep groove ball bearing is unsealed, has a standard cage, and has CN internal clearance. It has a 35mm ID, a 72mm OD, and a 17mm width. This single-row ball bearing has deep groove geometry for supporting radial and axial loads at high speeds. The CN (normal) radial internal clearance designation indicates it is for use in applications not involving thermal expansion or atypical precision. This bearing conforms to the Annular Bearing Engineering Committee (ABEC) 1 precision standard for performance within a narrow range of variation. It is open on both sides for lubricating in place This bearing has a Light bearing design for light loads in limited spaces or for average loads in unrestricted spaces. The standard cage balances the load distribution by spacing the balls evenly and also prevents the balls from coming into contact with one another during use, reducing friction, vibration, and noise. This single-row deep groove ball bearing is suitable for use in applications including, but not limited to, transmissions, motors, and pumps, among others.

1. We can change the rubber seal color according to your actual requirements.
2. Customized the marks based on your requirements.
3. Choose the different package to your needs.
