699 2rs
YWS or OEM
OEM Customized Services
Product Details
Internal diameter:9mm
External diameter:20mm
Width:6mm
Size: 9×20×6mm
Type: deep groove ball bearing
Material:Chrome steel/GCr15/Stainless steel/ceramic
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：

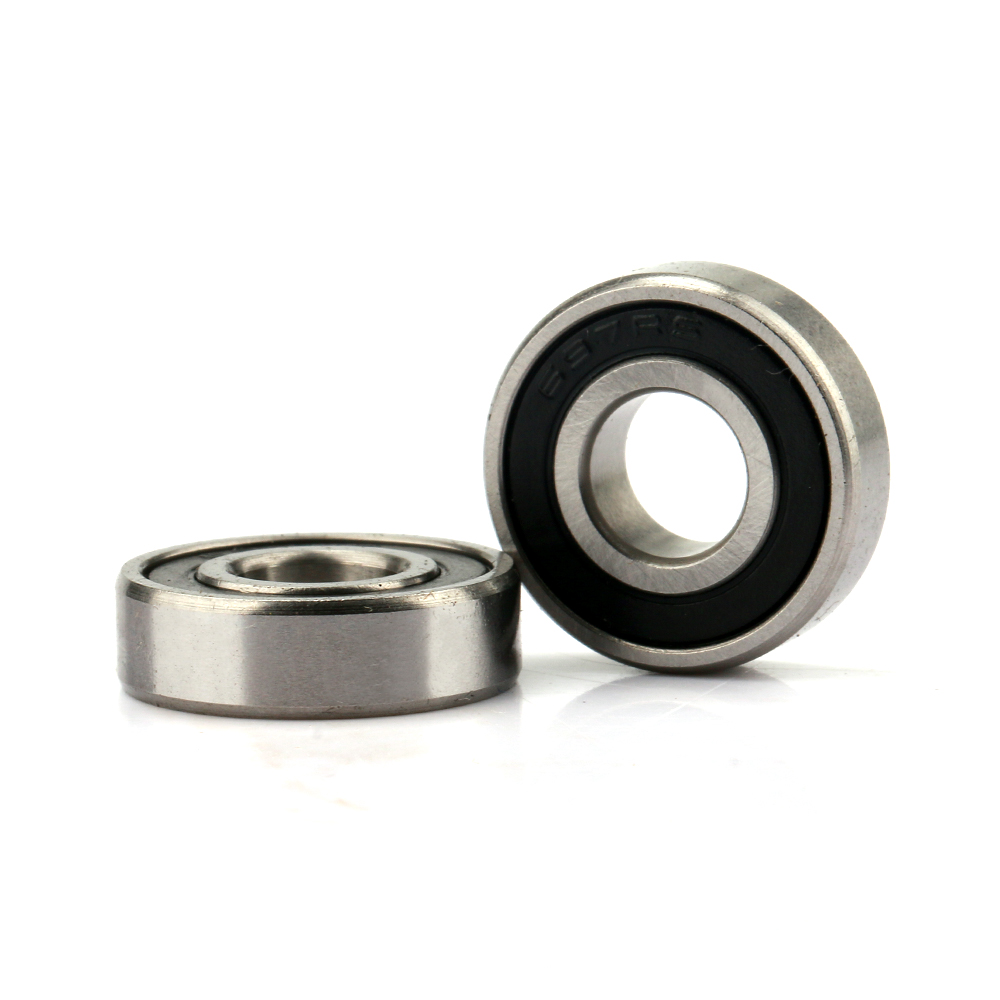

This 696-2RS 9x20x6-millimeter sealed miniature ball bearing has deep groove geometry for high speeds and supporting both radial and axial loads. It has rubber seals on both sides of the bearing to keep lubricant in and contaminants out. It comes pre-lubricated from the manufacturer so that no additional lubrication is required. This deep-groove sealed ball bearing is suitable for use in electric motor applications.
product features：
Deep groove geometry for high speeds and supporting both radial and axial loads
Chrome steel for durability and resistance to deformity under heavy loads
Rubber seals on both sides of the bearing to keep lubricant in and contaminants out
Lubricated at manufacturer for no additional lubrication required
Suitable for use in electric motor applications
Model & Size
MOD | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 693 | 3 | 8 | 3 | 0.15 | 0.56 | 0.18 | 44000 | 52000 | 0.0006 |
| 694 | 4 | 11 | 4 | 0.15 | 0.715 | 0.276 | 38000 | 47000 | 0.0018 |
| 695 | 5 | 13 | 4 | 0.2 | 1.08 | 0.43 | 34000 | 43000 | 0.0024 |
| 696 | 6 | 15 | 5 | 0.2 | 1.35 | 0.53 | 32000 | 40000 | 0.0038 |
| 697 | 7 | 17 | 5 | 0.3 | 1.61 | 0.715 | 30000 | 38000 | 0.0052 |
| 698 | 8 | 19 | 6 | 0.3 | 1.99 | 0.865 | 28000 | 36000 | 0.0073 |
| 699 | 9 | 20 | 6 | 0.3 | 2.48 | 1.09 | 27000 | 34000 | 0.0082 |
| 6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 25000 | 32000 | 0.009 |
| 6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 20000 | 28000 | 0.011 |
| 6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 19000 | 26000 | 0.016 |
| 6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 18000 | 24000 | 0.018 |
| 6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 17000 | 22000 | 0.036 |
| 6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 14000 | 18000 | 0.042 |
| 6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 12000 | 16000 | 0.048 |
| 6907 | 35 | 55 | 10 | 0.3 | 9.55 | 6.85 | 10000 | 14000 | 0.074 |
