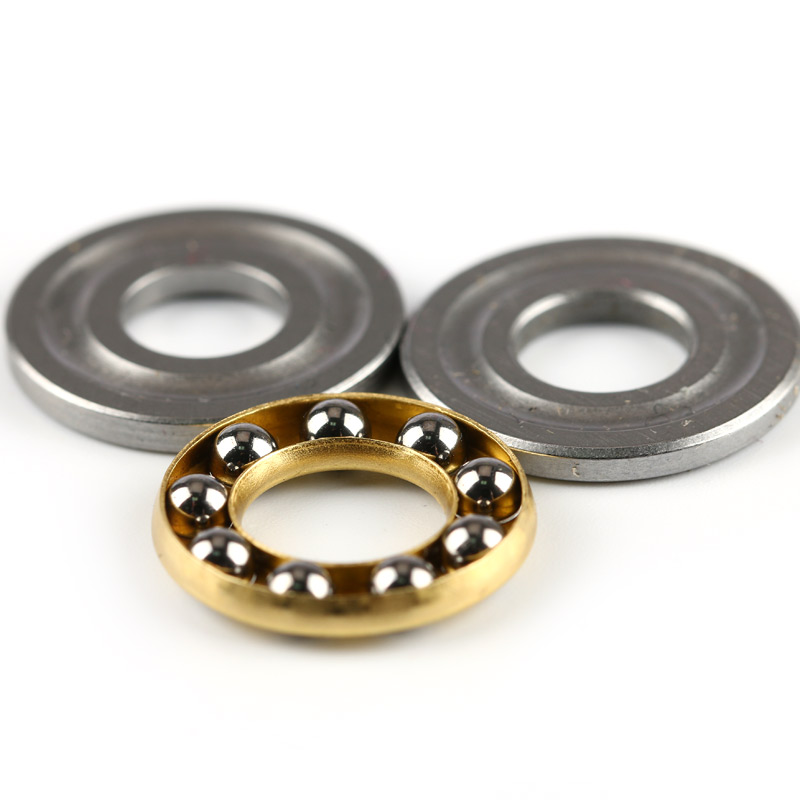

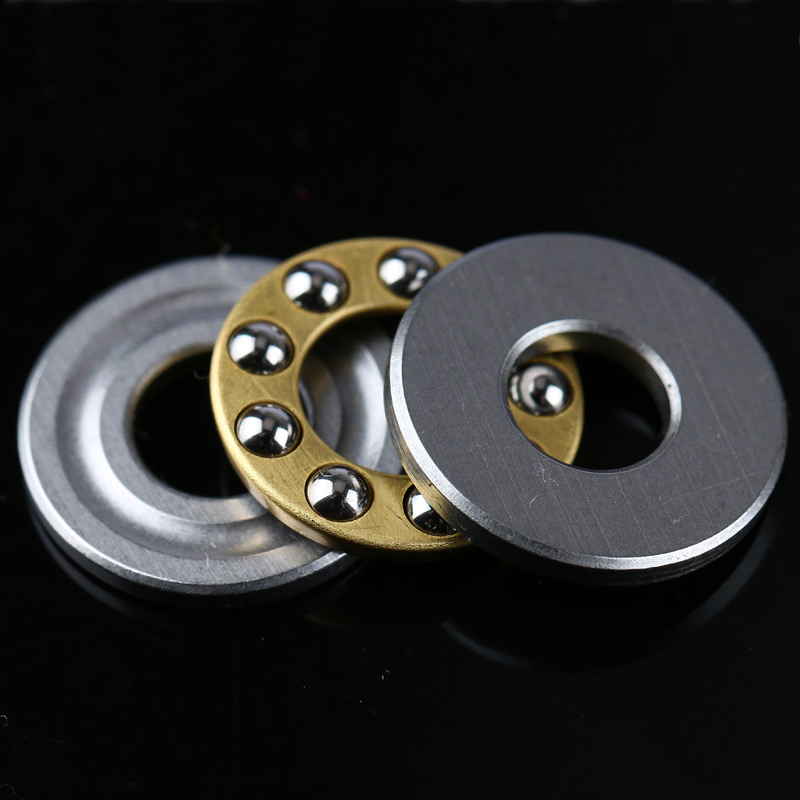

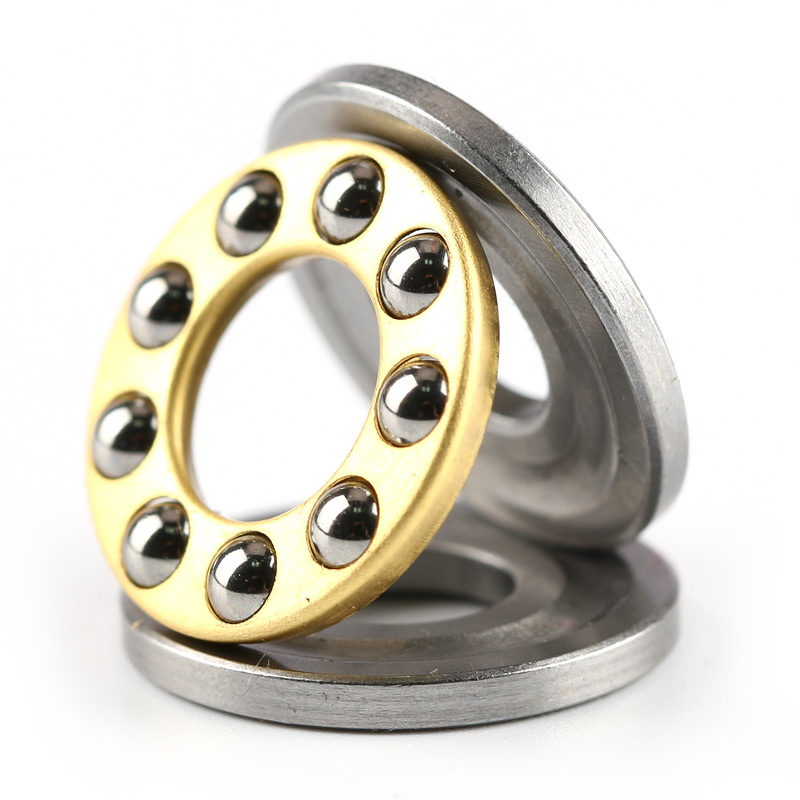

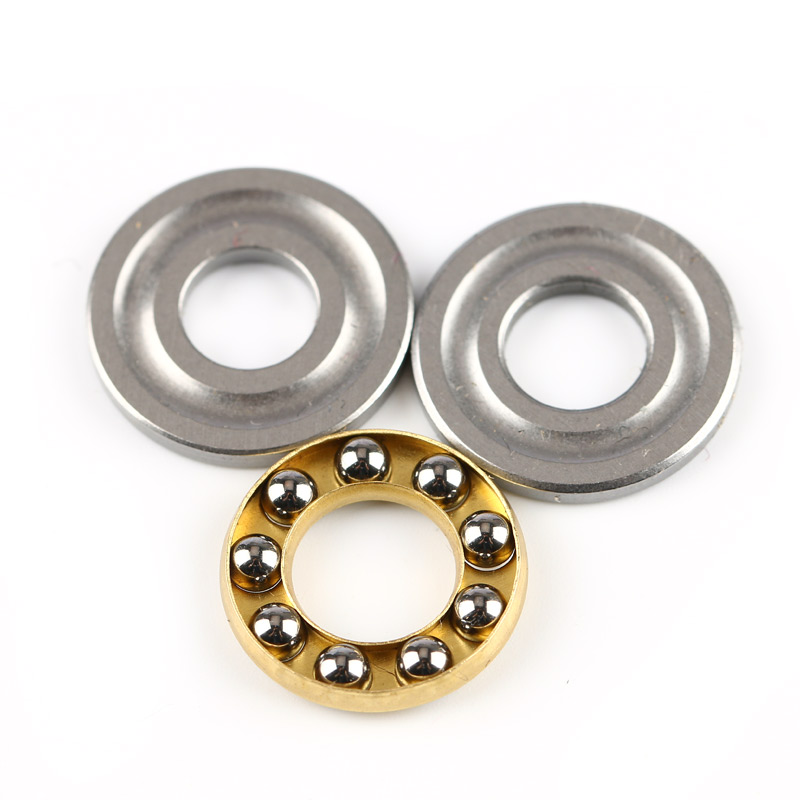

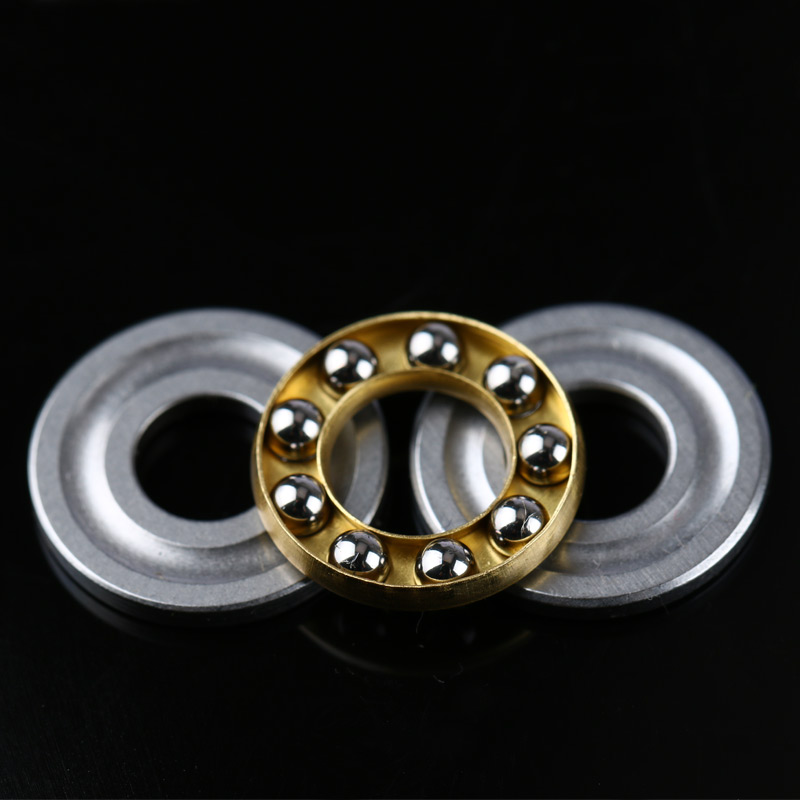

F5-10M
YWS or OEM
OEM Customized Services
Product Description
product information:
Structure:thrust ball bearing
Type:thrust ball bearing
Brand Name:YWS
Internal diameter:5mm
External diameter:10mm
Width:4mm
size:5x10x4mm
Material:Chrome steel/GCr15/Stainless steel/ceramic/ZrO2
Is customized: Yes (Drawings required)
Wholesale and freight: To provide you with accurate solutions
Tips: Please contact us for details of the required products.
Product description：
Retainers material is copper, plane thrust ball bearing is separable type
Thrust bearing limit rotational speed is low, steel to add centrifugal force of raceway outer, easy to scratch, but not suitable for high-speed operation
One-way thrust bearing can withstand one-way axial load, two-way bearing can be subject to bi-directional load
With a spherical seat thrust ball bearing with self-aligning performance, can eliminate the influence of the installation error
Product features：
Designed for low speed operation and axial loads only
Made from Chromium Steel (GCr15) , durability and resistance to deformity under loads
High performance, low noise and long life, easy to maintain
Mainly used in automotive industry and machine tool
| Size | stell balls | Weight | RPM r/min | load | ||||||
| Model number | ID | OD | H | balls quantity | Diameter | KG | grease | Oil | Co(KN) | C(KN) |
| F2.5-6 | 2.5 | 6 | 3 | 6 | 1.2 | 0.0007 | 16000 | 17500 | 0.6 | 85 |
| F3-8 | 3 | 8 | 3.5 | 7 | 1.588 | 0.001 | 9100 | 11700 | 0.72 | 0.9 |
| F4-9 | 4 | 9 | 4 | 8 | 1.588 | 0.0012 | 8800 | 11400 | 0.72 | 0.84 |
| F4-10 | 4 | 10 | 4 | 9 | 1.588 | 0.0016 | 8800 | 11400 | 0.72 | 0.84 |
| F5-10 | 5 | 10 | 4 | 9 | 1.588 | 0.0015 | 8500 | 11100 | 0.72 | 0.79 |
| F5-11 | 5 | 11 | 4.5 | 9 | 1.588 | 0.0021 | 8500 | 11100 | 1.7 | 1.81 |
| F5-12 | 5 | 12 | 4 | 9 | 1.58 | 0.0022 | 8500 | 11100 | 0.79 | 0.72 |
| F6-11 | 6 | 11 | 4.5 | 9 | 1.588 | 0.002 | 8500 | 11100 | 1.7 | 1.81 |
| F6-12 | 6 | 12 | 4.5 | 9 | 2 | 0.0024 | 5000 | 7000 | 1.9 | 1.96 |
| F6-14 | 6 | 14 | 5 | 5 | 2.381 | 0.0036 | 4000 | 7000 | 1.9 | 1.96 |
| F7-13 | 7 | 13 | 4.5 | 9 | 2 | 0.0025 | 4000 | 7000 | 1.9 | 1.96 |
| F7-15 | 7 | 15 | 5 | 8 | 3 | 0.004 | 3600 | 7000 | 1.91 | 1.975 |
| F7-15 | 7 | 15 | 5.5 | 9 | 2.381 | 0.004 | 3600 | 7100 | 1.91 | 1.974 |
| F7-17 | 7 | 17 | 6 | 6 | 3 | 0.006 | 3500 | 7100 | 2.56 | 3.15 |
| F8-16 | 8 | 16 | 5 | 9 | 3 | 0.004 | 4000 | 7000 | 1.88 | 1.943 |
| F8-19 | 8 | 19 | 7 | 10 | 3.175 | 0.009 | 3000 | 8000 | 3.5 | 3.85 |
| F9-17 | 9 | 17 | 5 | 10 | 3 | 0.0045 | 3400 | 5000 | 1.898 | 1.75 |
| F9-20 | 9 | 20 | 7 | 7 | 3.175 | 0.0089 | 2500 | 4500 | 3.5 | 3.85 |
| F10-18 | 10 | 18 | 5.5 | 10 | 3.175 | 0.006 | 2500 | 4500 | 2.56 | 3.15 |
| F12-21 | 12 | 21 | 5 | 11 | 3 | 0.006 | 1800 | 3000 | 2.1 | 2.6 |
| F12-23 | 12 | 23 | 7.5 | 11 | 3 | 0.013 | 1800 | 3000 | 3.605 | 3.9 |
| 2805 | 11.1 | 22.2 | 6.35 | 11 | 3 | 0.01 | 1800 | 3000 | 2.35 | 2.9 |
