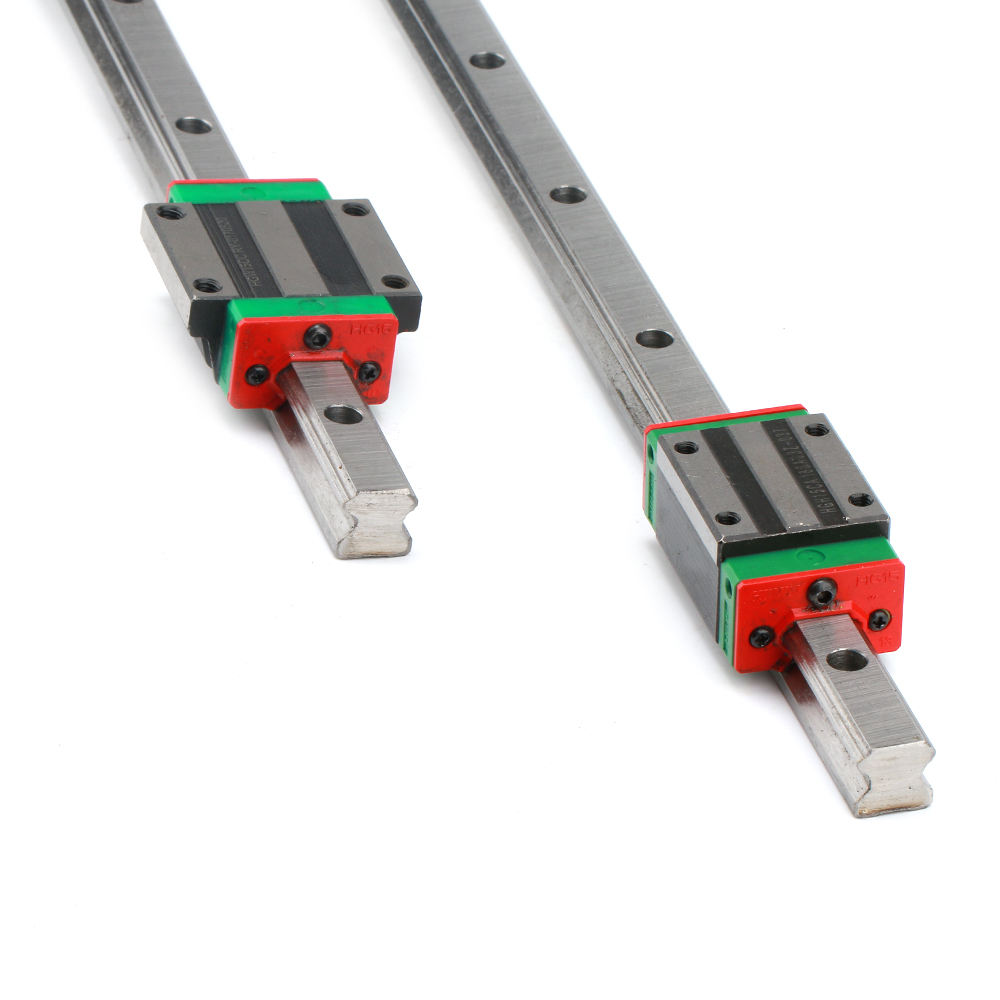

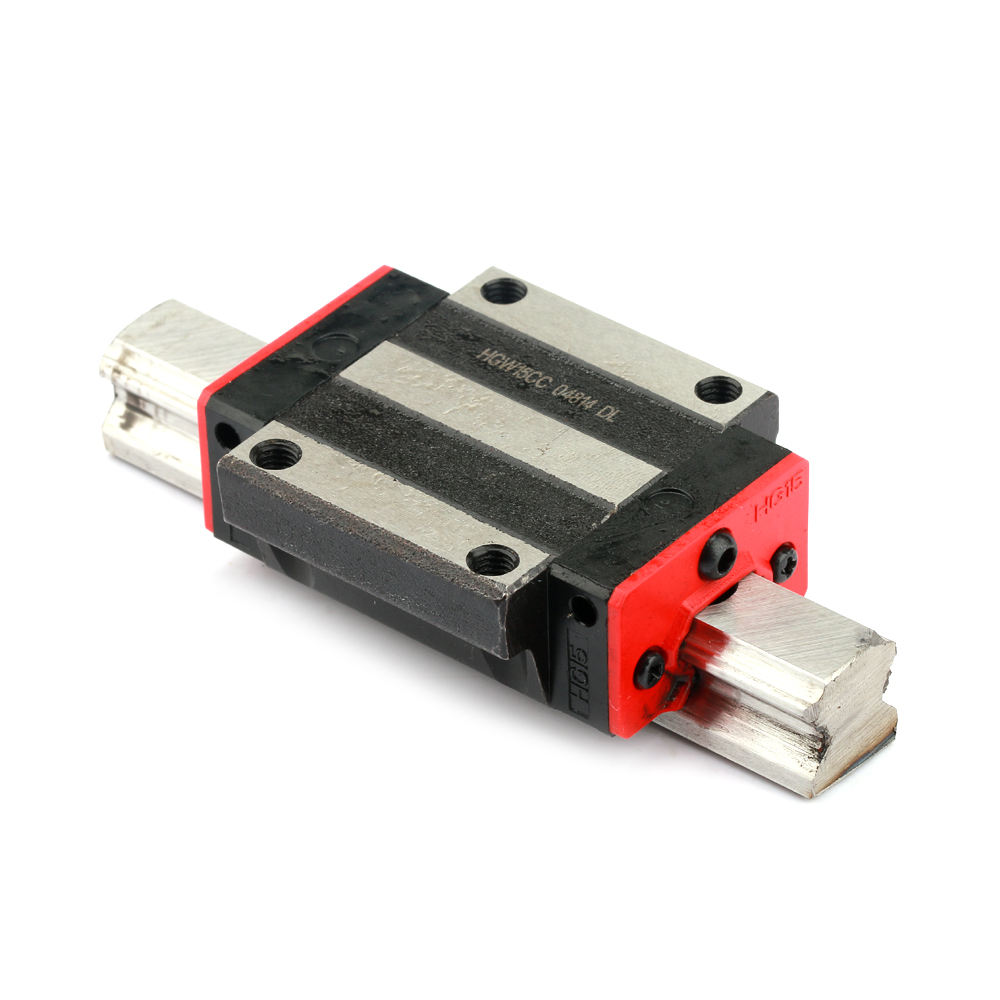

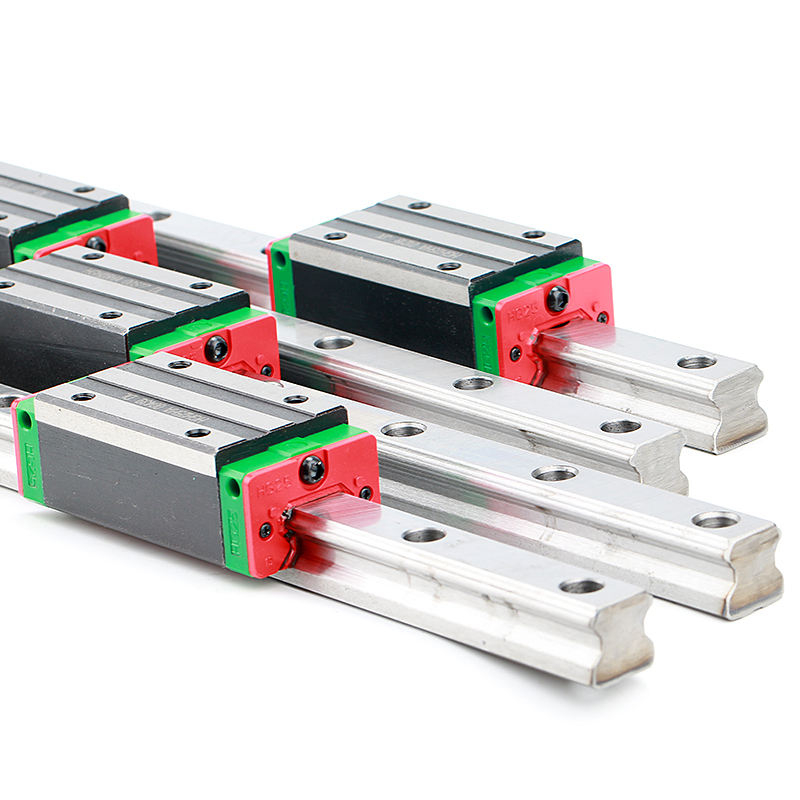

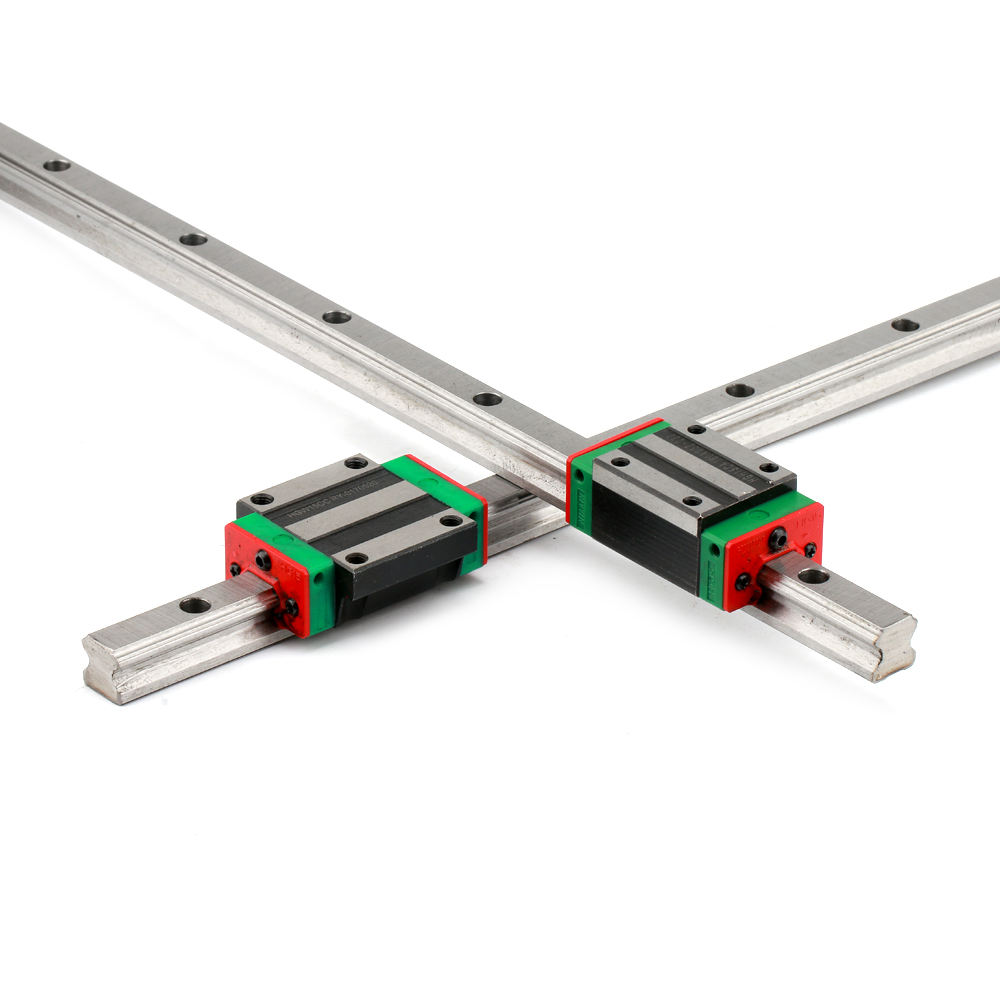

HGR20 Linear Guide Rail 20mm with HGH20CA Sliding Block for CNC Machinery & Precision Equipment

High-Performance Linear Guide Rail for Industrial Applications

The HGR20 linear guide rail with HGH20CA sliding block is designed for precision machinery requiring stable, high-speed linear motion. Combining advanced ball bearing technology with durable construction, it ensures minimal vibration and long-term reliability.

Key Features:

• High Load Capacity: Supports radial and axial loads up to 20,000N for heavy-duty industrial use.

• Smooth Motion: Precision-ground raceways and ball recirculation system reduce friction and noise.

• Modular Design: Compatible with HGH20CA sliding blocks for flexible installation in CNC machines and automation systems.

• Durable Construction: Made from high-carbon chrome steel (GCr15) with hardened surfaces for wear resistance.

• Customization Options: Adjustable rail length, anti-corrosion coatings (black oxide, zinc plating), and OEM branding.

• Fast Delivery: Standard orders ship within 1-5 days; bulk orders in 7-10 days.

Technical Specifications:

• Rail Model: HGR20

• Sliding Block Model: HGH20CA

• Rail Width: 20mm

• Material: GCr15 chrome steel (hardness HRC 60-62)

• Precision Grade: P4 (standard) or P2 (high-precision option)

• Dynamic Load Capacity: 20,000N

• Static Load Capacity: 50,000N

• Operating Temperature: -30°C to 150°C

• Surface Treatment: Standard rust-proof oil; optional black oxide or chrome plating

Applications:

• CNC machining centers (X/Y/Z axes)

• 3D printers and laser cutting machines

• Industrial automation systems (robotic arms, conveyors)

• Semiconductor manufacturing equipment

• Medical devices requiring linear motion

Why Choose Our HGR20 Linear Guide Rail?

1. Precision Engineering: ISO 9001-certified manufacturing with ±0.001mm accuracy.

2. Cost-Effective: 30% lower cost than branded alternatives without compromising performance.

3. Custom Solutions: Tailored rail lengths (up to 4,000mm) and surface treatments for specialized environments.

4. Quick Turnaround: Stocked items ship within 1-5 days; bulk orders in 7-10 days.

5. Technical Support: Free consultation for integration into CNC, robotics, or automation projects.

Upgrade Your Machinery with Precision Linear Motion

Ensure accuracy, efficiency, and longevity in your industrial systems with the HGR20 linear guide rail. Request a free sample or custom quote today to optimize your CNC or automation setup.

Contact us for technical specifications, volume discounts, or application-specific recommendations.

Manufactured by Jinan Yuki Bearing Co., Ltd. – 15+ years of expertise in industrial linear motion solutions.
