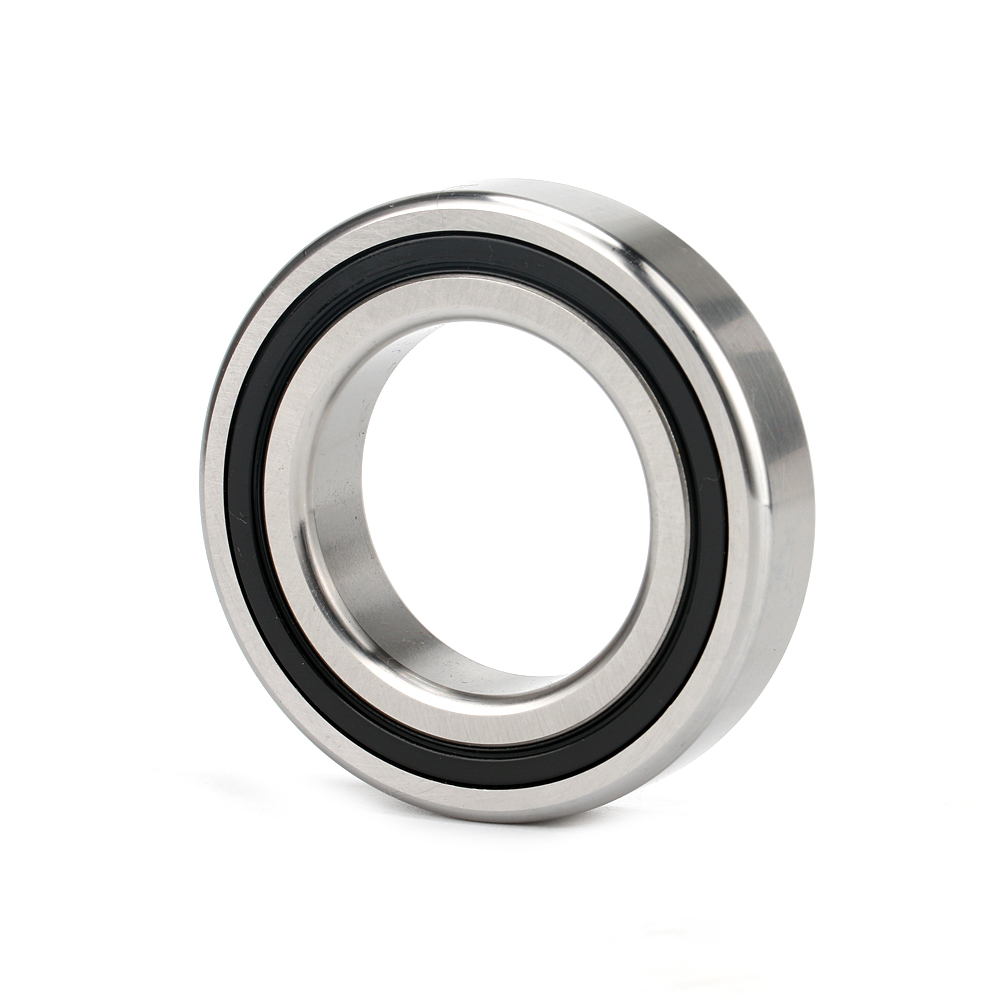

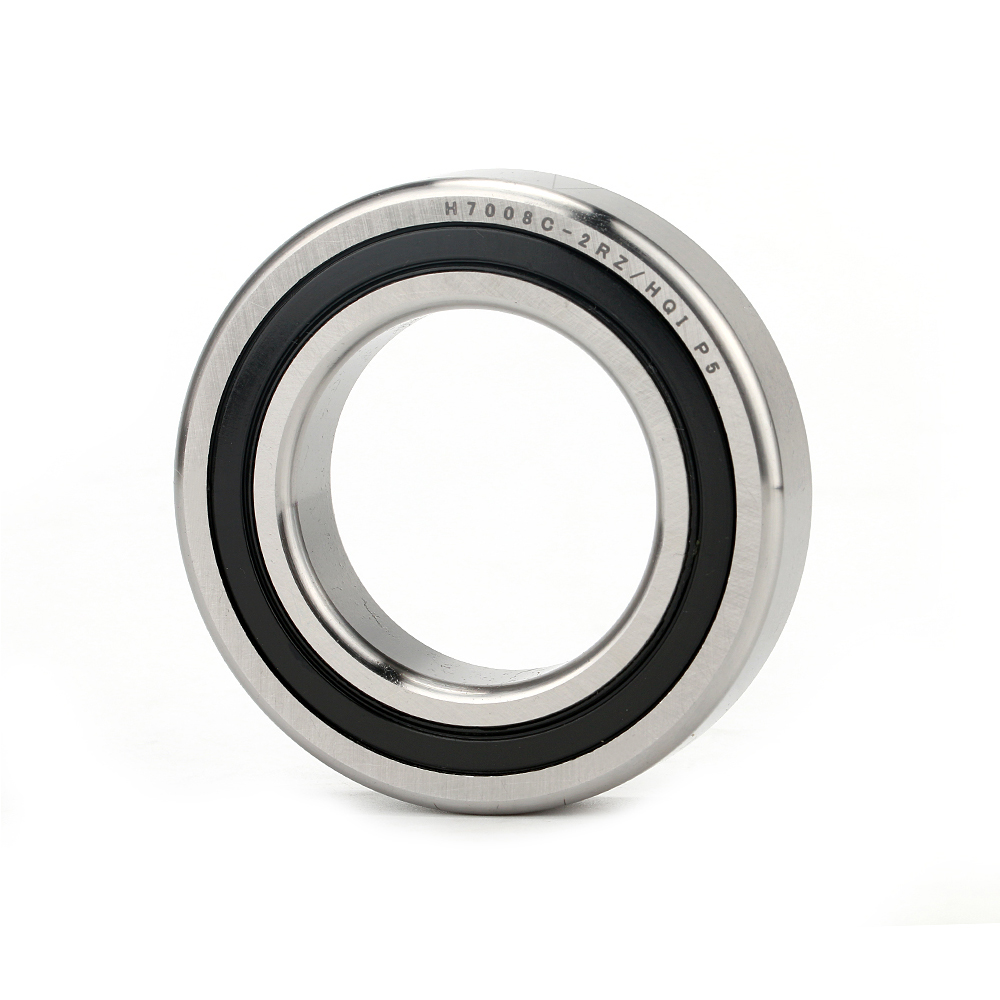

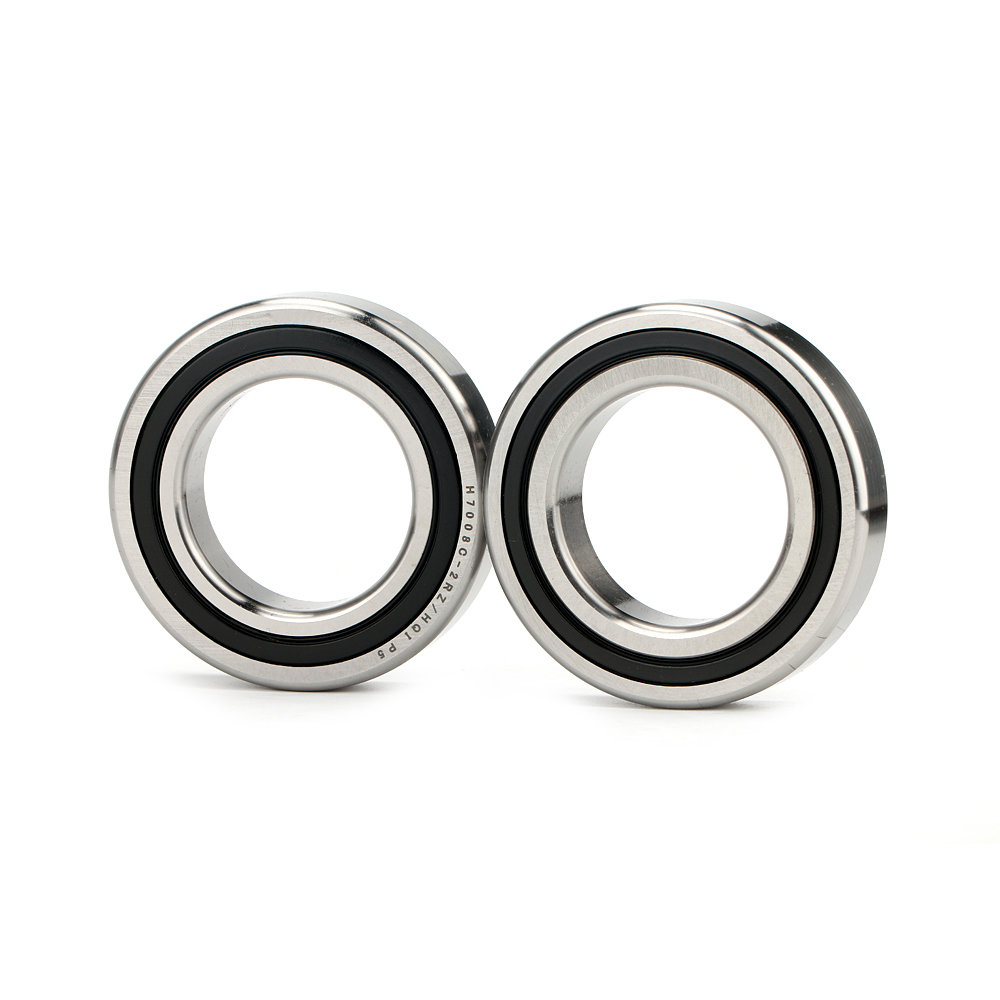

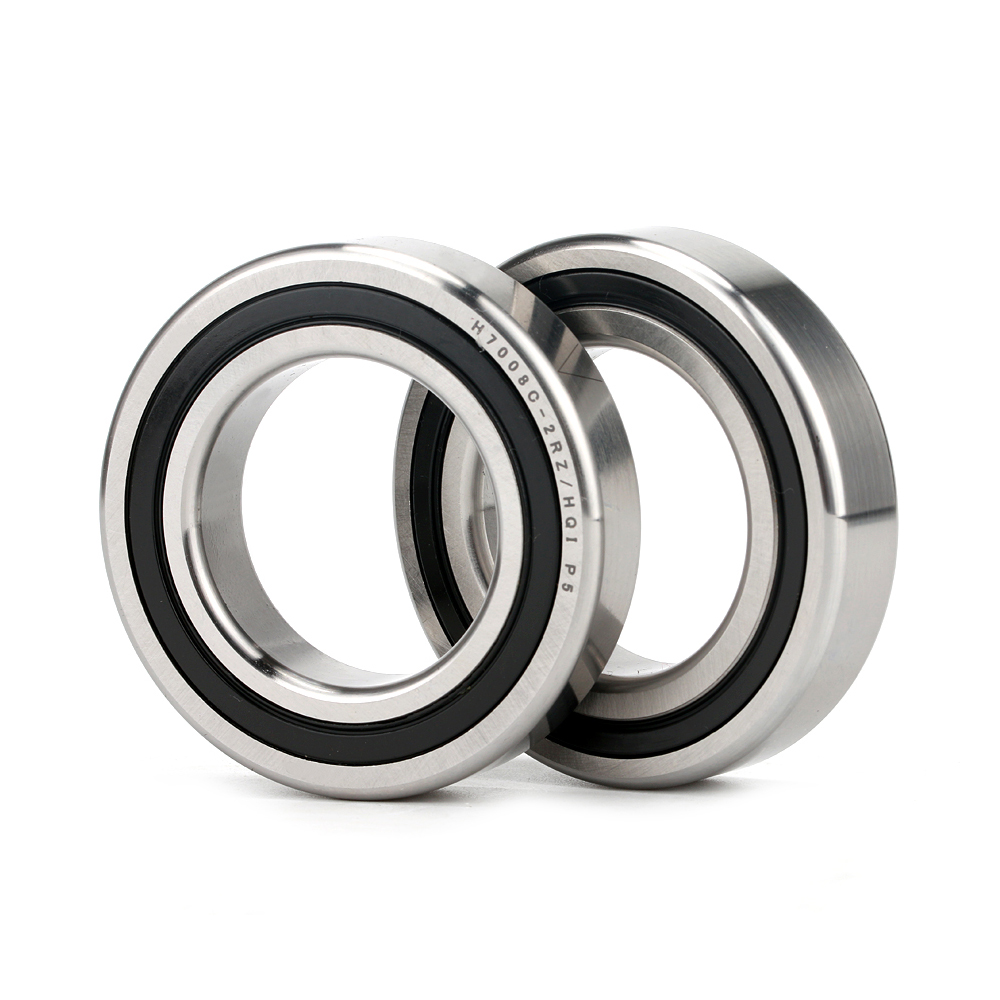

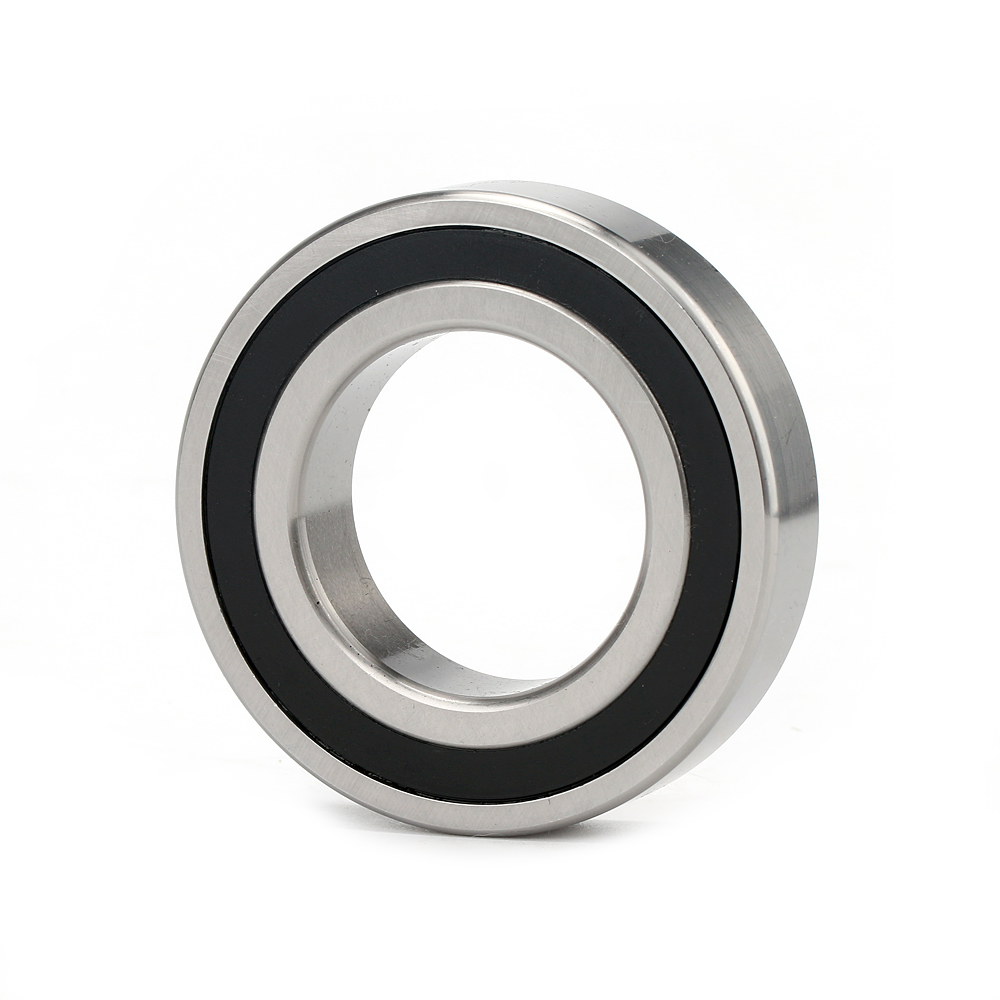

High Quality Angular Contact Ball Bearings H7008C 40x68x15mm

product information

Brand Name:YWS

Product Name: Angular contact ball bearing

Material: Chrome Steel

 Ball material：ceramic

Model: H7008C

Outer diameter:68mm

the inside diameter of:40mm

Bearing size:40x68x15mm

Rolling columns: Single /double

Roller type: Spherical roller

Service:OEM Service

Tips: Prices and attributes are for reference only, please email or call for details.

Packaging & Delivery

Packaging & Delivery

Packaging Details

1.Carton Tubo .

2.Wrapped by oil paper and water-proof belt

3.Wooden pallets or wooden cases of free fumigation

4.According to customer's requirement

Port

qingdao

Lead Time :

Quantity(Pieces)1 - 1000>1000

Est. Time(day)10To be negotiated

Product description

Angular contact ball bearings have a high limit speed and can withstand both radial and axial loads. They can also withstand pure axial loads. The axial load capacity is determined by the contact angle and increases with the contact angle.

1. Single row angular contact ball bearings can only bear axial load in one direction. When subjected to radial load, it will cause additional axial force and must be applied to the corresponding reverse load. Therefore, these bearings are generally used in pairs. .

2. Double row angular contact ball bearings can withstand large radial and axial bidirectional combined loads and moment loads mainly based on radial loads, which can limit the axial displacement of the shaft or casing, and the contact angle is 30 degrees.

Paired mounted angular contact ball bearings can withstand radial and axial bidirectional combined loads with radial loads and can withstand pure radial loads. The series configuration can only withstand axial loads in one direction, while the other two configurations can withstand axial loads in either direction. This type of bearing is generally selected by the manufacturer and assembled into a pair of users. After installation, there is preloading and interference, and the ferrule and the steel ball are in an axial preload state, thus improving the whole set of bearings as a single support stiffness and rotation. Precision.

Product features

High quality

Stable performance,

low temperature rise,

low noise,

high speed,

ultra-precision,

high stiffness and other advantages.

Application field

Widely used in machine tool spindles, high frequency motors, centrifugal separators, small car front wheels, booster pumps, food machinery, electric welders, electromechanical equipment, painting equipment, slot plates, various types of transmissions, printing machinery, inspection and analysis equipment , fine chemical machinery, etc.
