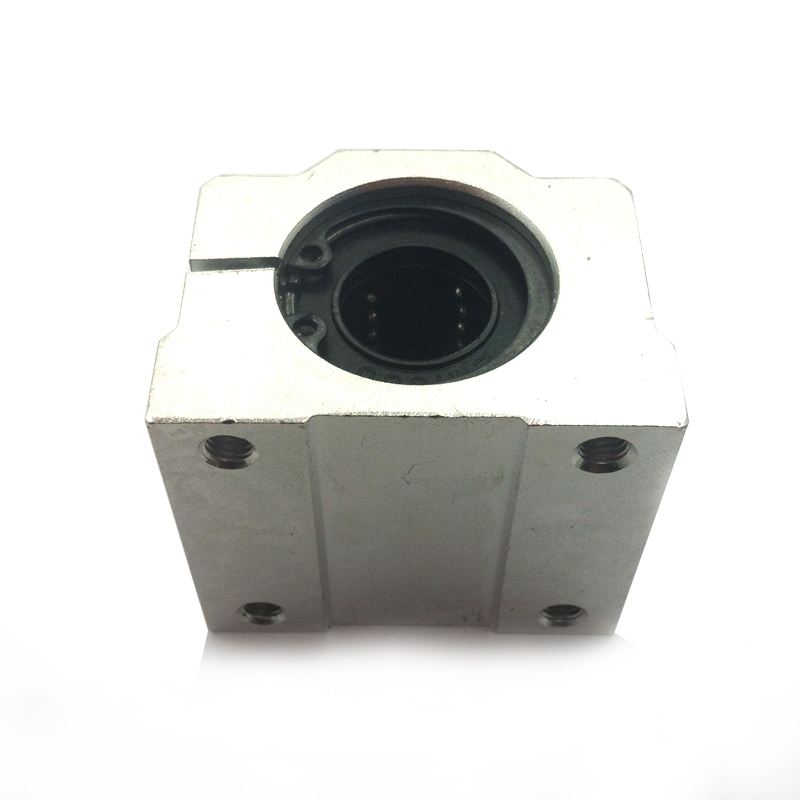

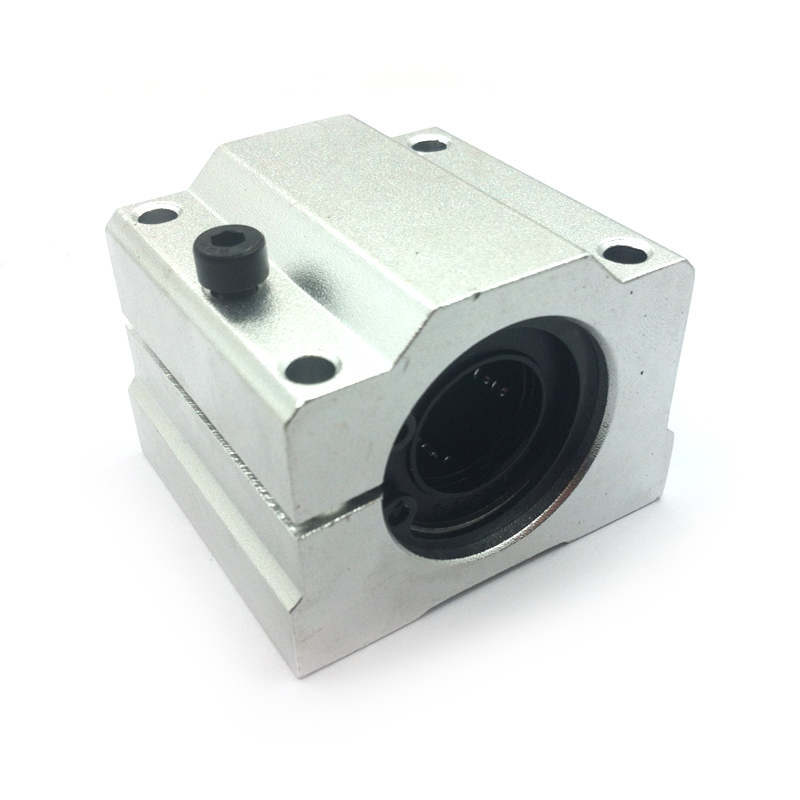

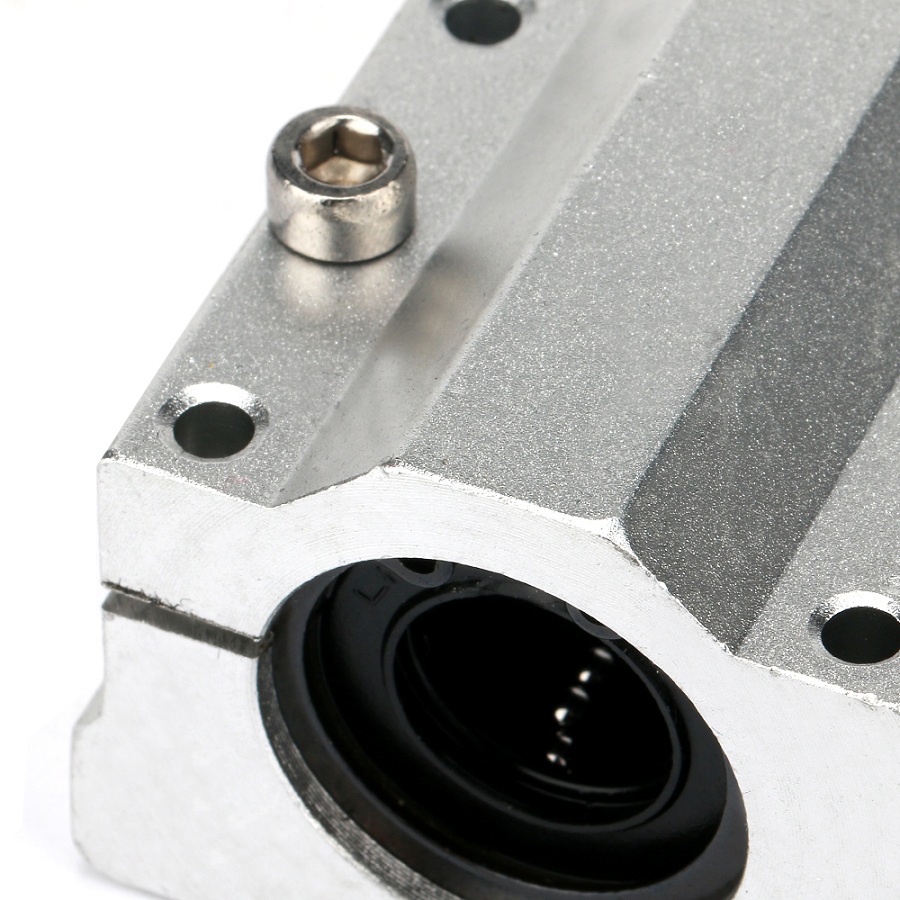

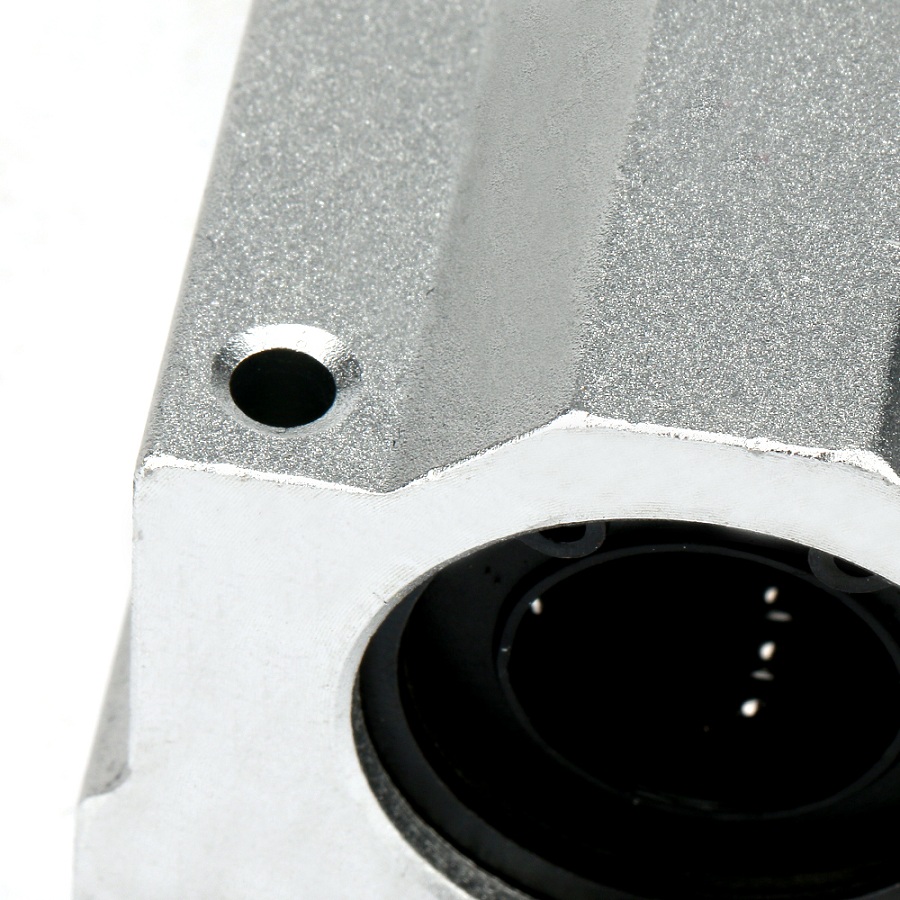

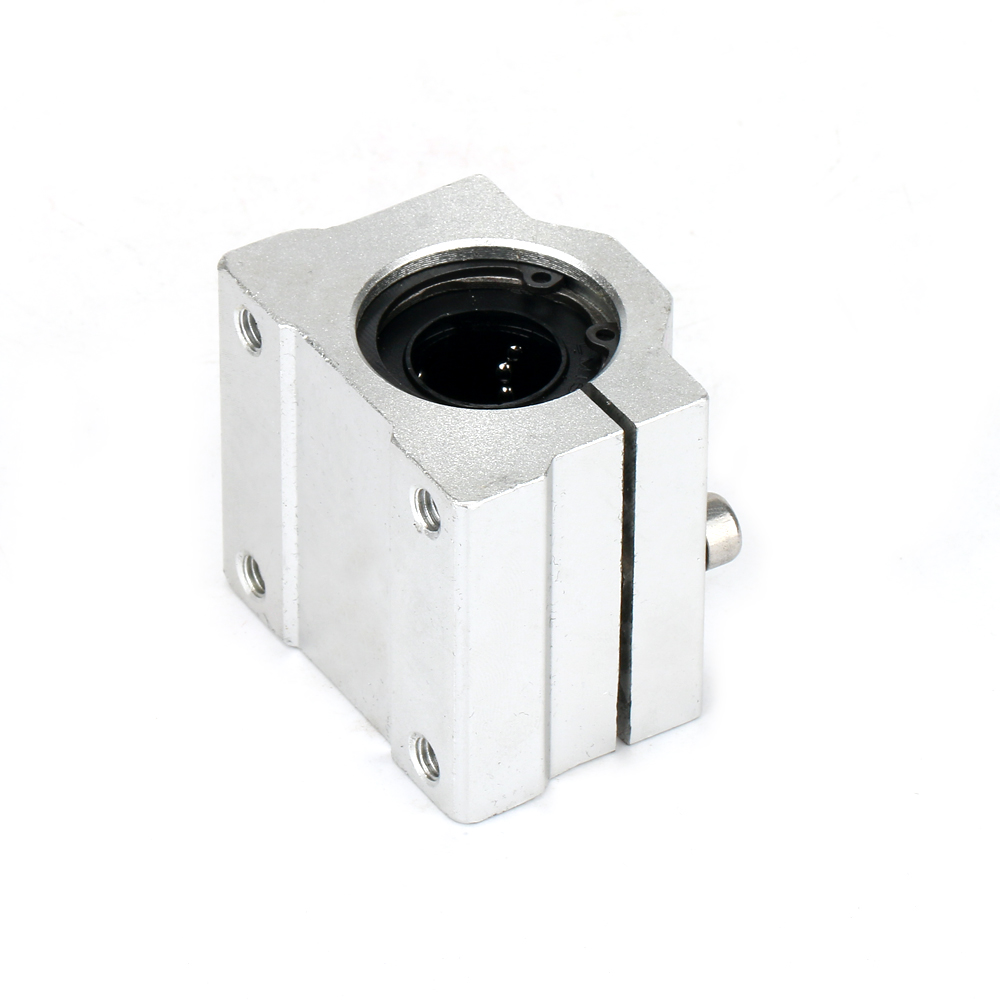

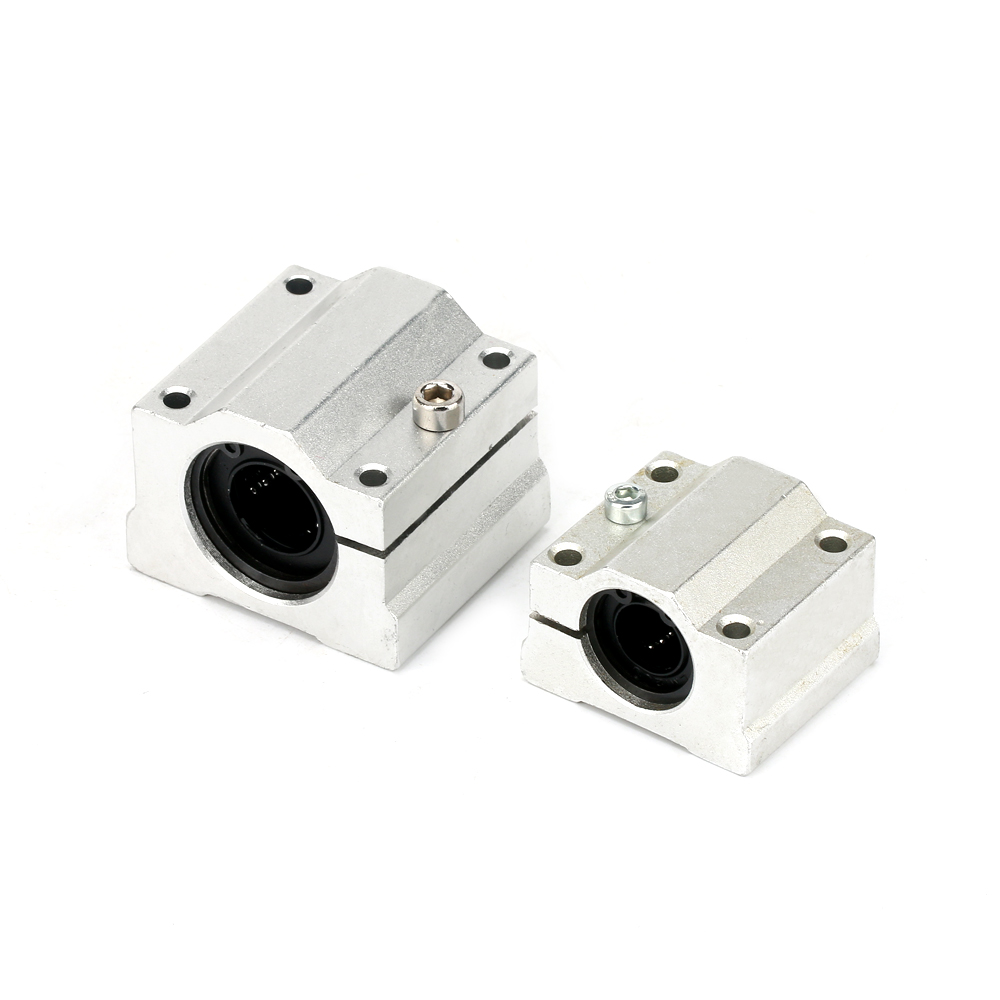

Linear Bearing Slide SCJ16UU Square Linear Bearing

Product information：

Product name:SCJ16UU linear slide bearing

Brand:YWS or OEM

weight:0.189kg

d:16mm

D:25mm

B:19mm

Load direction:Radial thrust

Bearing mechanism:Dynamic pressure bearing

Lubricant:Oil lubrication

Product feature:

Linear bearings are used in conjunction with hardened linear drive shafts. A system for infinite linear motion. The load

ball and the quenching drive shaft have a small allowable load because of point contact, but the frictional resistance is

the smallest, the precision is high, and the movement is quick.

Linear bearings are linear motion systems used for linear strokes in conjunction with cylindrical shafts. Since the

bearing ball is in contact with the bearing shell, the steel ball rolls with the minimum frictional resistance. Therefore,

the  linear bearing has small friction and is relatively stable, and does not change with the bearing speed, and can

obtain a smooth linear motion with high sensitivity and high precision. Linear bearing consumption also has its

limitations. The most important thing is that the bearing impact load capacity is poor, and the bearing capacity is also

poor. Secondly, the linear bearing has large vibration and noise during high-speed motion. Linear bearing quick and

easy automatic selection is included. Linear bearings are widely used in sliding parts of industrial machinery such as

precision machine tools, textile machinery, food packaging machinery, and printing machinery.
