Material: high quality 45 # steel or Gcr15 steel
Surface roughness: Ra0.2-0.4
Hard Chrome Thickness: 0.020-0.030mm
Surface hardness: HV700-1150
Straightness: 0.05-0.10um / m
Standard Length: 1-6 m
Another can be customized surface treatment by high waves depth 1-3mm, high waves hardness: HRC58 ℃ ~ 60 ℃
Note: Depending on the application to select
Chrome Thickness: Pressure = 0.02mm
Hydraulic = 0.02mm above
Carbon steel material/chrome steel material/stainless steel

  • SF25

  • YWS

  • 8483109000

  • linear

  • linear

  • YWS

  • 0mm

  • 25mm

  • SF25

  • P0 P6 P5

  • no

Availability:
Inquire

Product Description

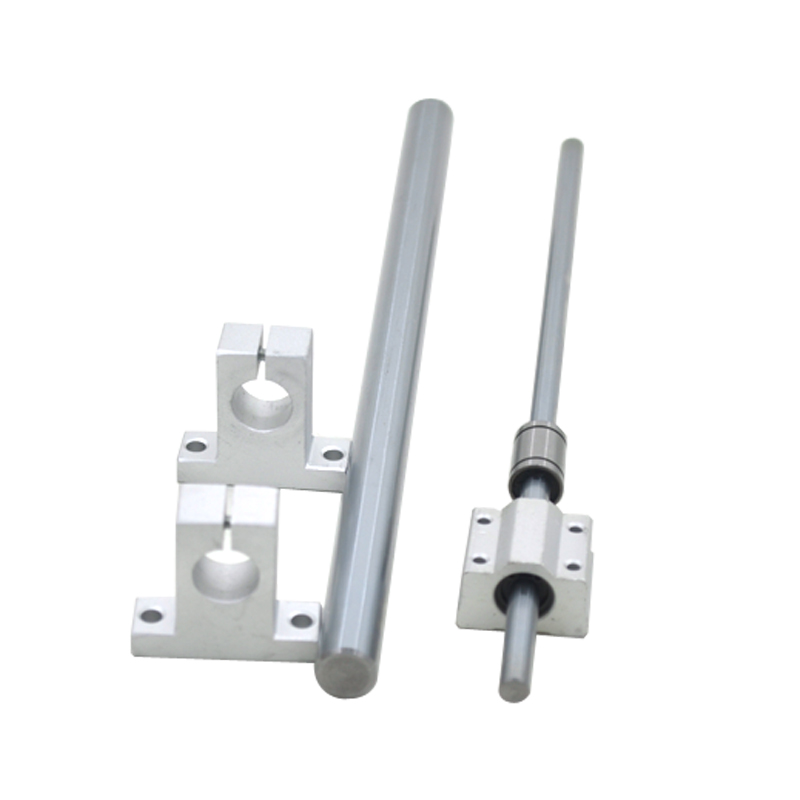

linear motion ball bearing LM25UU linear bearing shaft 25mm

Material: 45# steel or Gcr15 steel

we have 4mm~60mm diameter.

we can cut any length according to your demand.

And linear shaft are used on 3d printer,CNC, Cylinder rods, automatic precision printers, automatic cutting machines and industrial robots and many other linear motion systems.


Goods Description:


Diameter

3, 4, 5, 6, 8, 10,12,16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80mm

Or according to your requirement.

Length

100 ~ 6000mm

Quality

ISO9001:2008

Material

GCr15 steel ; C45 steel.

Surface finish

Hard Chrome plating

Plating Thickness

10um ~ 20um in radius.

Heat treated

Not Hardened / Induction Hardened

Surface Hardness

HRC:58-62

Hardness Depth

0.8-3.0mm

OD tolerance

g6, h6, h7 or according to your requirement.

Roughness

Ra<0.4

Custom-made

End Stepped, End Tapped, End Tread, Wrench Flats, Cross Drilled Holes, Key Groove, Set Screw Grooved, and so on.


guiderod1rod 5 (2)rod 5 (1)rod 3 (1)

package

 we can use carton box or wooden case, or according to customer's demand.
