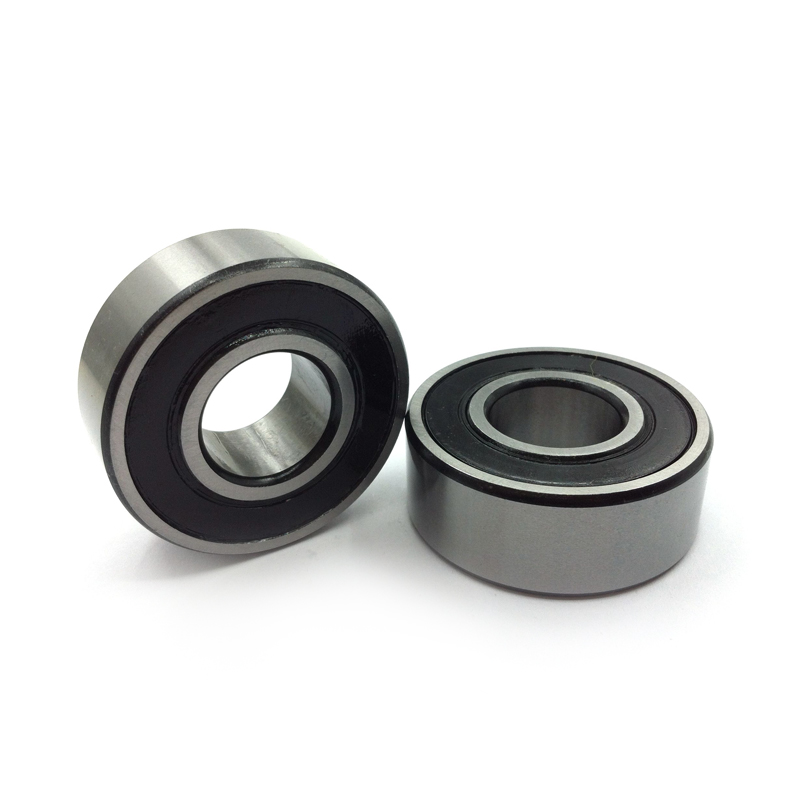

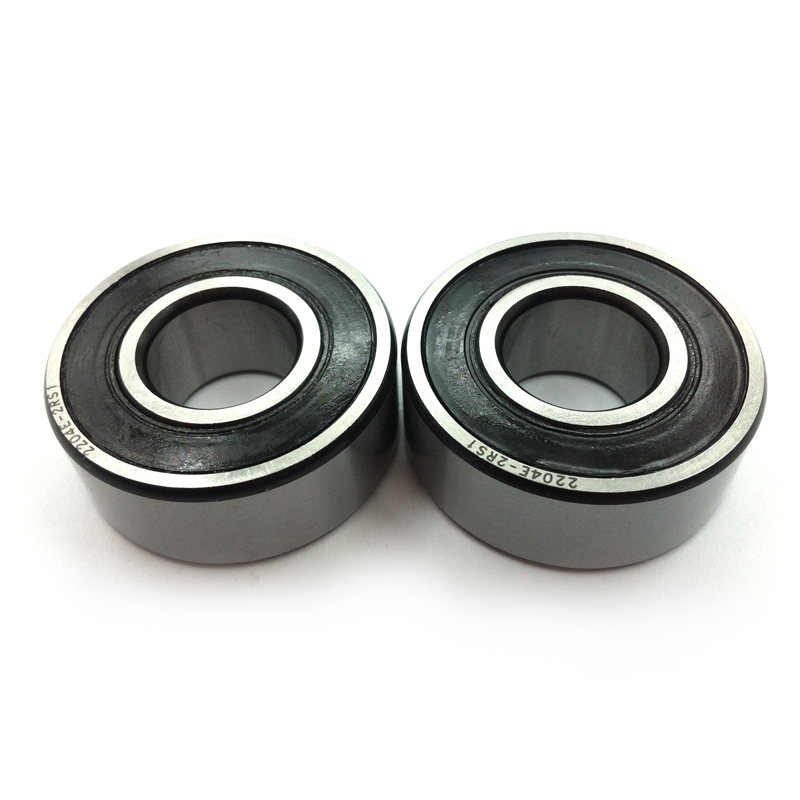

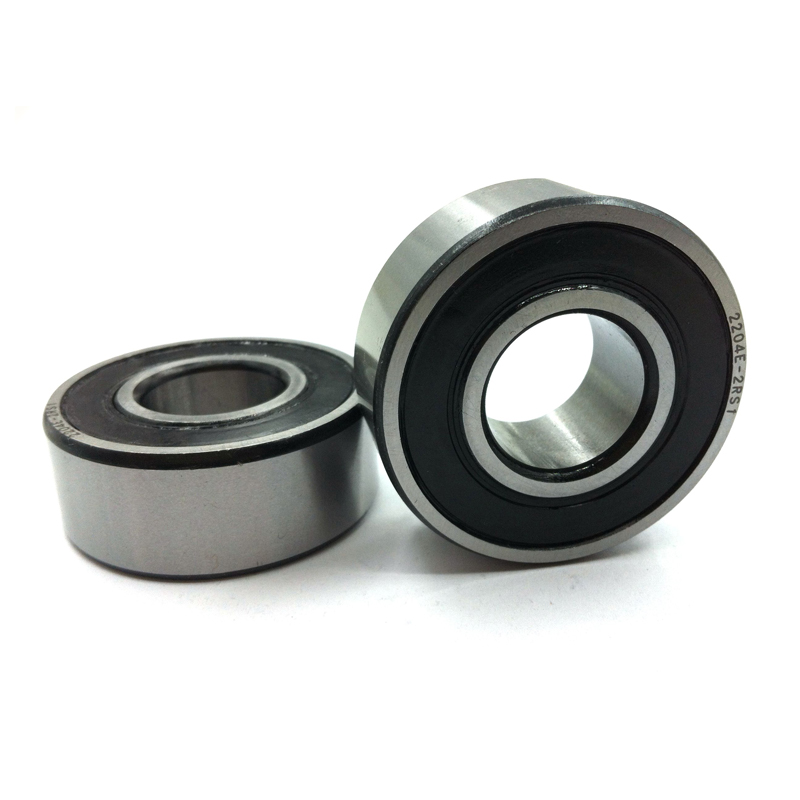

2204E
YWS or OEM
OEM Customized Services
Product Details
product information:
Structure:Self-Aligning
Type:Ball
Brand Name:YWS

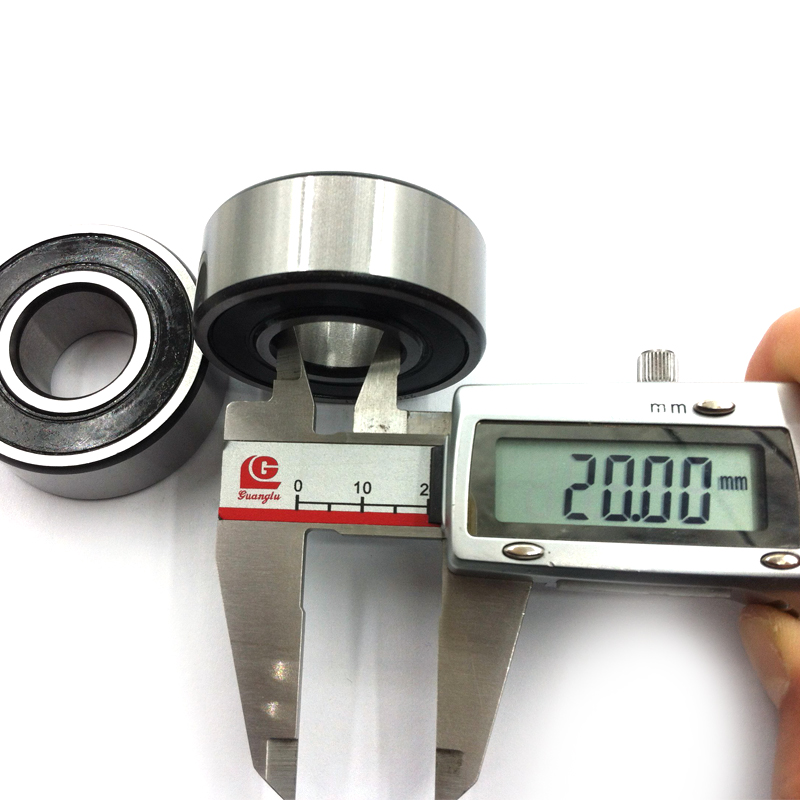

Internal diameter:20mm

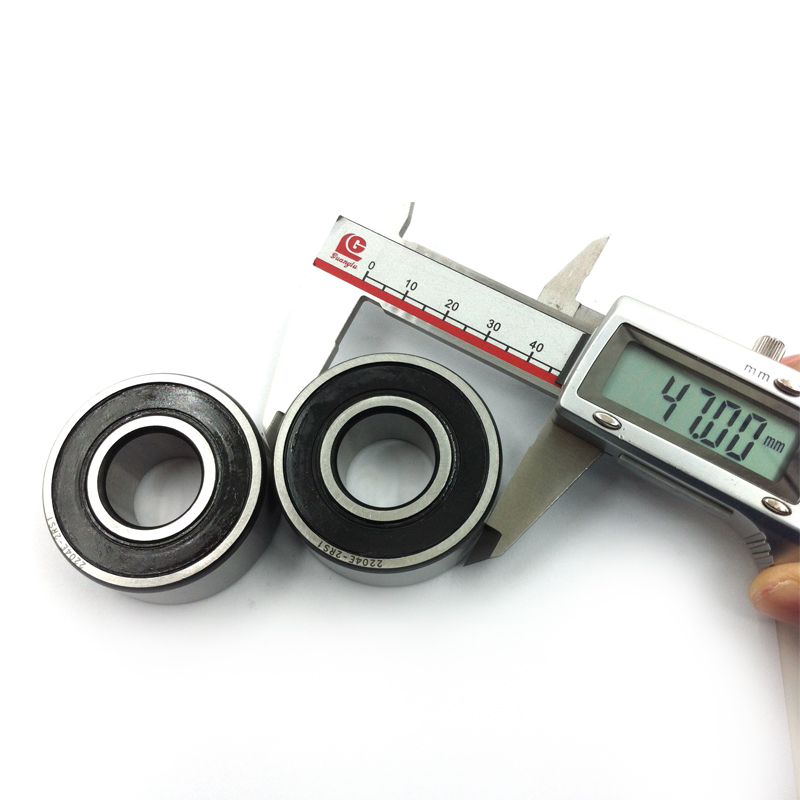

External diameter:47mm

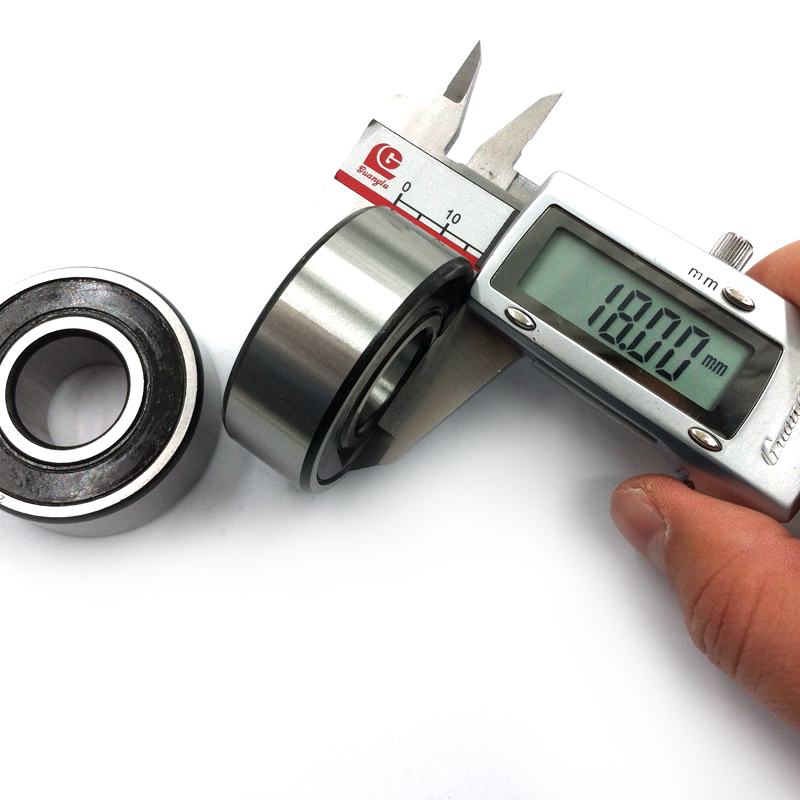

Width:18mm
size:20×47×18mm
weight：0.152kg
Dynamic Load Capacity: 3780 pounds
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：
This double-row self-aligning ball bearing is double-sealed, and has an optimized internal design, cylindrical bore, reinforced polyamide cage, and normal clearance rating. It is suitable for applications supporting moderate radial loads and moderate to low thrust loads. This bearing has concave sphered housing rings to compensate for static angular misalignments between the shaft and housing in applications subject to shaft deflections or mounting errors. Because this bearing type has the lowest operational friction of all rolling bearings, it runs cool at high speeds. The bearing is made of low-alloy, through-hardened chromium steel for durability and resistance to deformity under heavy loads. Due to its optimized internal design, an SKF bearing with an E suffix has a higher load rating than a standard SKF bearing of comparable size. This bearing has a straight bore for fitting on a conventional cylindrical shaft. Sheet-steel reinforced acrylonitrile-butadiene (NBR) rubber seals on both sides of the bearing keep out contaminants such as dirt and grime and hold in lubricant applied at manufacture. The permissible operating temperature range of NBR is from -40 to 120 degrees C (-40 to 250 degrees F). This bearing has an injection molded snap-type cage made of polyamide 66 to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. This cage type can be used at operating temperatures up to 120 degrees C (250 degrees F). The bearing has a normal radial internal clearance designation, making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. Additionally, the bearing is manufactured to normal tolerances in accordance with International Organization for Standardization (ISO) 492:2002 specifications. This self-aligning ball bearing is for use in commercial and industrial applications including film processing equipment, office automation, vertical spinning equipment, and industrial countershafts, among others.
Product features：
Self-aligning bearing for applications subject to shaft deflections or misalignments between the shaft and housing
Optimized internal design for a higher load rating than standard SKF self-aligning bearings
NBR rubber seal on both sides of the bearing keeps lubricant in and contaminants out
Polyamide 66 plastic cage evenly spaces balls for reduced friction, vibration, and noise
Normal radial internal clearance for applications where thermal expansion is not a factor
| model | d | D | B | model | d | D | B |
| 1200 | 10 | 30 | 9 | 1205 | 25 | 52 | 15 |
| 2200 | 10 | 30 | 14 | 2205 | 25 | 52 | 18 |
| 1300 | 10 | 35 | 11 | 1305 | 25 | 62 | 17 |
| 2300 | 10 | 35 | 17 | 2305 | 25 | 62 | 24 |
| 1201 | 12 | 32 | 10 | 1206 | 30 | 62 | 16 |
| 2201 | 12 | 32 | 14 | 2206 | 30 | 62 | 20 |
| 1301 | 12 | 37 | 12 | 1306 | 30 | 72 | 19 |
| 2301 | 12 | 37 | 17 | 2306 | 30 | 72 | 27 |
| 1202 | 12 | 35 | 11 | 1207 | 35 | 72 | 17 |
| 2202 | 12 | 35 | 14 | 2207 | 35 | 72 | 23 |
| 1302 | 15 | 42 | 13 | 1307 | 35 | 80 | 21 |
| 2302 | 15 | 42 | 17 | 2307 | 35 | 80 | 31 |
| 1203 | 17 | 40 | 12 | 1208 | 40 | 80 | 18 |
| 2203 | 17 | 40 | 16 | 2208 | 40 | 80 | 23 |
| 1303 | 17 | 47 | 14 | 1308 | 40 | 90 | 23 |
| 2303 | 17 | 47 | 19 | 2308 | 40 | 90 | 33 |
| 1204 | 20 | 47 | 14 | 1209 | 45 | 85 | 19 |
| 2204 | 20 | 47 | 18 | 2209 | 45 | 85 | 23 |
| 1304 | 20 | 52 | 15 | 1309 | 45 | 100 | 25 |
| 2304 | 20 | 52 | 21 | 2309 | 45 | 100 | 36 |
| model | d | D | B | model | d | D | B |
| 1210 | 50 | 90 | 20 | 1215 | 75 | 130 | 25 |
| 2210 | 50 | 90 | 23 | 2215 | 75 | 130 | 31 |
| 1310 | 50 | 110 | 27 | 1315 | 75 | 160 | 37 |
| 2310 | 50 | 110 | 40 | 2315 | 75 | 160 | 55 |
| 1211 | 55 | 100 | 21 | 1216 | 80 | 140 | 26 |
| 2211 | 55 | 100 | 25 | 2216 | 80 | 140 | 33 |
| 1311 | 55 | 120 | 29 | 1316 | 80 | 170 | 39 |
| 2311 | 55 | 120 | 43 | 2316 | 80 | 170 | 58 |
| 1212 | 60 | 110 | 22 | 1217 | 85 | 150 | 28 |
| 2212 | 60 | 110 | 28 | 2217 | 85 | 150 | 36 |
| 1312 | 60 | 130 | 31 | 1317 | 85 | 180 | 41 |
| 2312 | 60 | 130 | 46 | 2317 | 85 | 180 | 60 |
| 1213 | 65 | 120 | 23 | 1218 | 90 | 160 | 30 |
| 2213 | 65 | 120 | 31 | 2218 | 90 | 160 | 40 |
| 1313 | 65 | 140 | 33 | 1318 | 90 | 190 | 43 |
| 2313 | 65 | 140 | 18 | 2318 | 90 | 190 | 64 |
| 1214 | 70 | 125 | 24 | 1220 | 100 | 180 | 34 |
| 2214 | 70 | 125 | 31 | 2220 | 100 | 180 | 46 |
| 1314 | 70 | 150 | 35 | 1320 | 100 | 215 | 47 |
| 2314 | 70 | 150 | 51 | 2320 | 100 | 215 | 73 |
Prducts name | Bearing (Ball bearing, roller bearing) |
Bra0nd name | YWS |
Series | 1208KTN1 1213KTN1 2207K-2RSTN1 1206K 2307 2309 2200 |
ID size | 5 mm - 350 mm |
Cage material | Steel , brass , Iron , plastic |
Precision | PO P6 |
Sealing | C3 C4 C1 C2 C0 |
Quality standard | ISO9001:2000 standard |
Service | OEM service |
Delivery date
| Normally ready goods and stock winthin 15 days |
Payment terms
| A:100% L/C at sight B: 30% T/T in advance .70% against copy of B/L |
Application | Mining. Metallurgy. Agriculture. Conveying machinery.auto. machine |
Package | single color box |
Details
| Jinan yuki bearing Co., Ltd. is one of the leading bearing manufacturers in China. With 20 years’ experience, advanced manufacturing facilities and excellent management staff, we can produce products that are equivalent to the world leading brand bearings. We have our own bearing brand YWS and also distribute bearings of global brands, |
