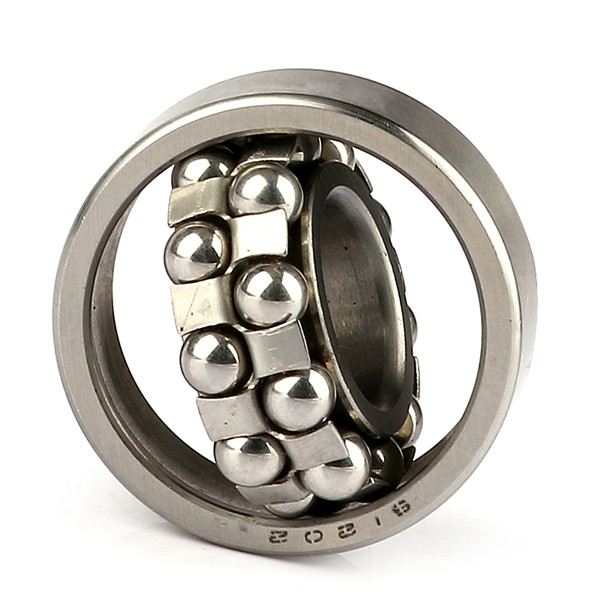

high precious & hot sale bearing 45x85x19 double row Self-Aligning ball bearing 1209K

product information:

Structure:Self-aligning bearing

Type:Self-aligning bearing

Brand Name:YWS

Internal diameter:45mm

External diameter:85mm

Width:19mm

size:45×85×19mm

Static Load Capacity:7350  kilograms

Dynamic Load Capacity:22000  kilograms

Material:Chrome steel/GCr15/Stainless steel

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.

Product description：

Double row self-aligning bearings utilize an inner ring with two rows of balls in two deep raceways, and an outer ring with a single spherical raceway. In this way, the inner and outer rings can be misaligned relative to each other. The resulting effect is a comparatively large angle imposing moment loads upon the balls. The boundary dimensions of the 1200 and 1300 series are the same as the 6200 and 6300 single row deep groove bearings.

Product features：

Self-aligning bearing for applications subject to shaft deflections or misalignments between the shaft and housing

Tapered bore with 1:12 taper for compensating for a flexing shaft or fitting to a tapered shaft

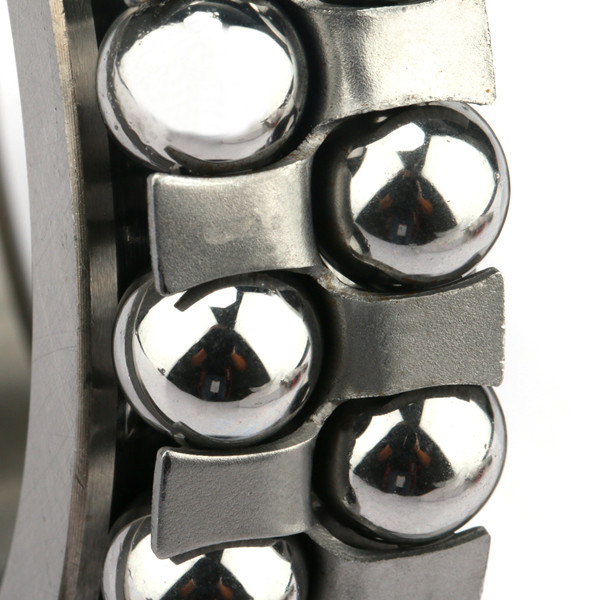

Steel cage evenly spaces balls for reduced friction, vibration and noise

Open bearing for lubrication applied in place

CN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision
