self-aligning ball bearings and all types of bearing form china factory 1217K

product information:

Structure:self aligning ball bearings

Type:self aligning ball bearings

Brand Name:YWS

Internal diameter:85mm

External diameter:150mm

Width:28mm

size:85×150×28mm

weight：2.07kg

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.

Product description：

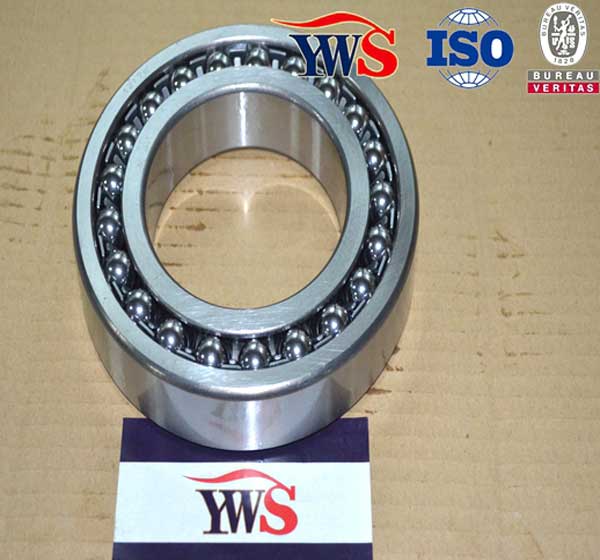

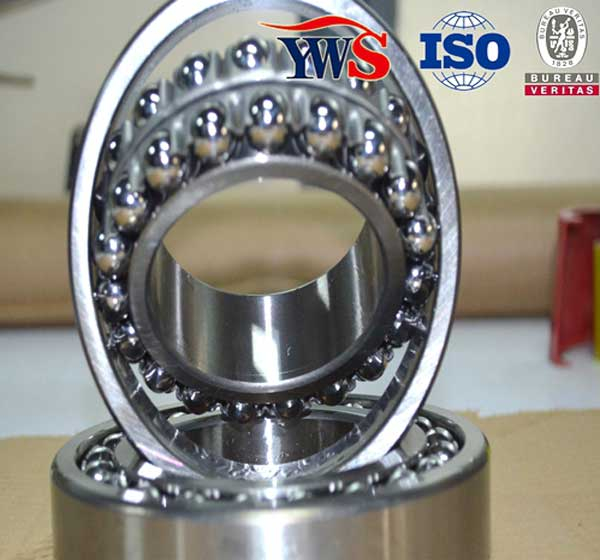

1217K Bearing has spherical outer race where the balls and cage continue to rotate, this type of bearing is suitable when the displacement of the center around which the shaft and housing rotate and shaft deflection is likely to occur. Bearing is made of Chrome Steel. Bearing is tapered with adapter sleeve.

Product features：

Self-aligning bearing for applications subject to shaft deflections or misalignments between the shaft and housing

Tapered bore with 1:12 taper for compensating for a flexing shaft or fitting to a tapered shaft

Open configuration for lubrication applied in place

Glass fiber reinforced polyamide 66 plastic cage evenly spaces balls for reduced friction, vibration, and noise

C3 radial internal clearance is larger than normal allowing for thermal expansion
