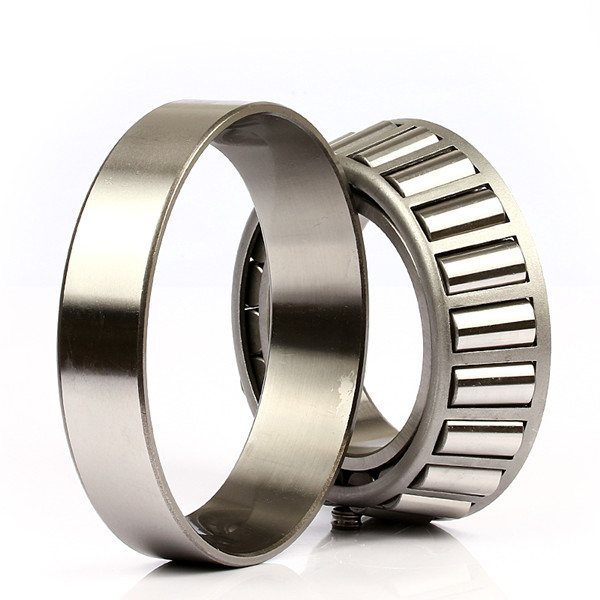

32207
YWS or OEM
OEM Customized Services
Product Details
product information:
Internal diameter:35mm
External diameter:72mm
Width:24.25mm
Size: 35×72×24.25mm
Limiting Speed Grease:5500
Limiting Speed Oil:7400
Cr (KN):70.6
Cor (KN):89.5
M (kg):0.44
assembly type: Cone & Cup
cage material: Steel
Material:Chrome steel/GCr15/Stainless steel/ceramic
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：

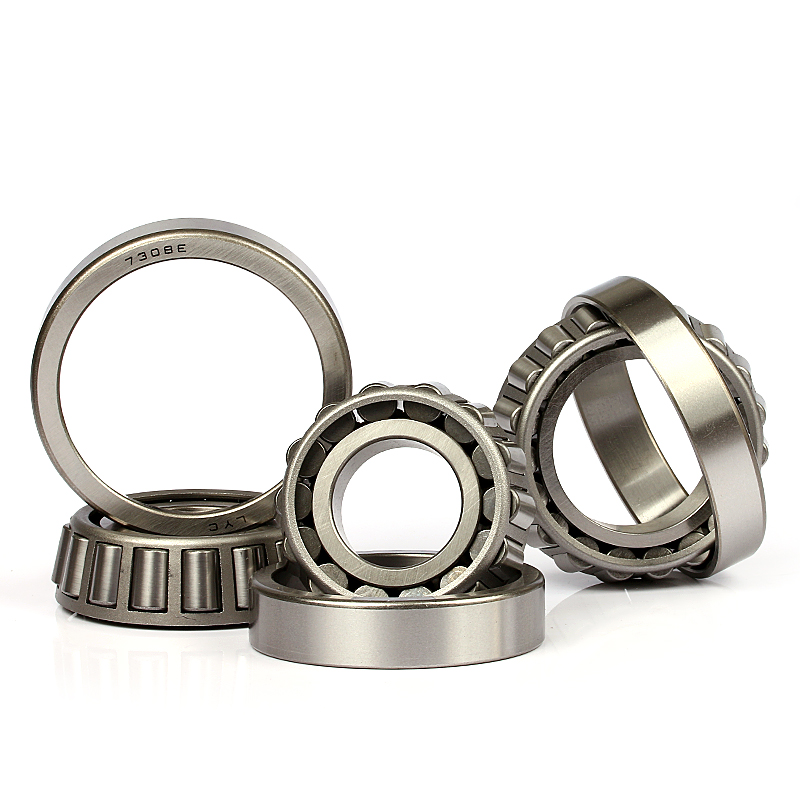

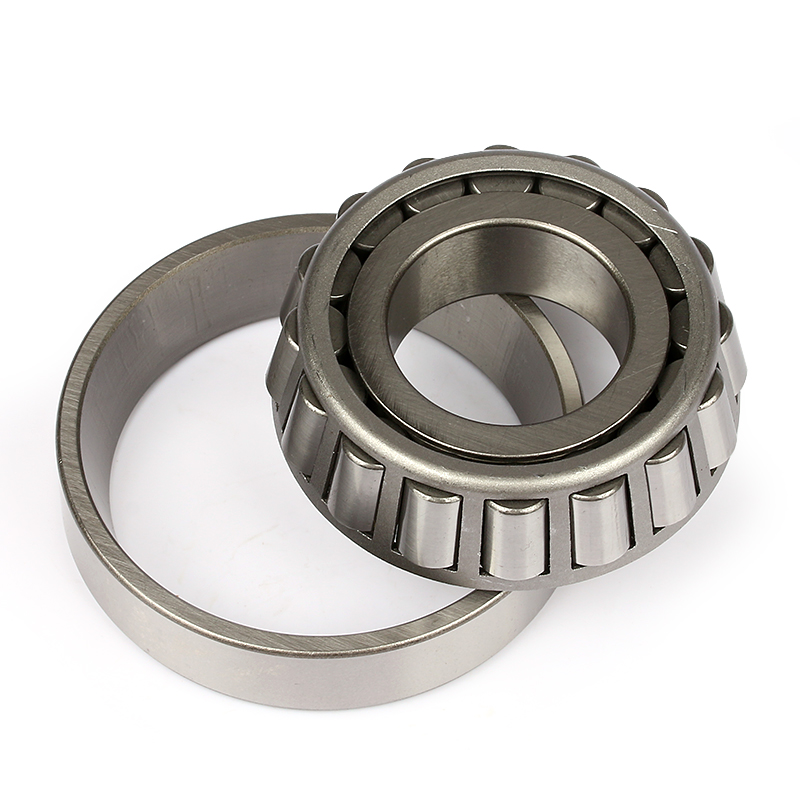

Single Row Tapered Roller Bearings are designed to accommodate combined loads.
These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and axial loads evenly across the roller.
The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
This single tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems.
product features：
Single row tapered roller bearings must be used either with a second bearing or as a matched pair
Components are separable and interchangeable that easy for maintenance
Features low friction and low noise that provide operational reliability
Offers heavy load carrying capacity and long service life
Bearing No. | d(mm) | D(mm) | T(mm) |
25877/21 | 34.925 | 73.025 | 23.812 |
L68149/10 | 34.980 | 59.131 | 15.875 |
L68149/11 | 34.980 | 59.975 | 15.875 |
78349A/78310A | 34.988 | 61.973 | 16.700 |
HM88648/10 | 35.717 | 72.223 | 25.400 |
HM89449/10 | 36.512 | 76.200 | 29.370 |
JL69349/10 | 38.000 | 63.000 | 17.000 |
LM29748/10 | 38.100 | 65.088 | 18.034 |
LM29749/10 | 38.100 | 65.088 | 18.034 |
LM29749/11 | 38.100 | 65.088 | 19.812 |
13685/21 | 38.100 | 69.012 | 19.050 |
16150/282 | 38.100 | 71.996 | 19.000 |
2788/20 | 38.100 | 76.200 | 23.812 |
3490/20 | 38.100 | 79.375 | 29.370 |
25572/20 | 38.100 | 82.931 | 23.812 |
418/414 | 38.100 | 88.501 | 26.988 |
300849/11 | 40.988 | 67.975 | 17.500 |
Welcome your inquiry!！
