32309
YWS or OEM
OEM Customized Services
Product Details
product information:
Internal diameter:45mm
External diameter:100mm
Width:38.25mm
Size: 45×100×38.25mm
M (kg):1.499
Static Load Capacity:191000 kilograms
Dynamic Load Capacity:154000 kilograms
assembly type: Cone & Cup
cage material: Steel
Material:Chrome steel/GCr15/Stainless steel/ceramic
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：

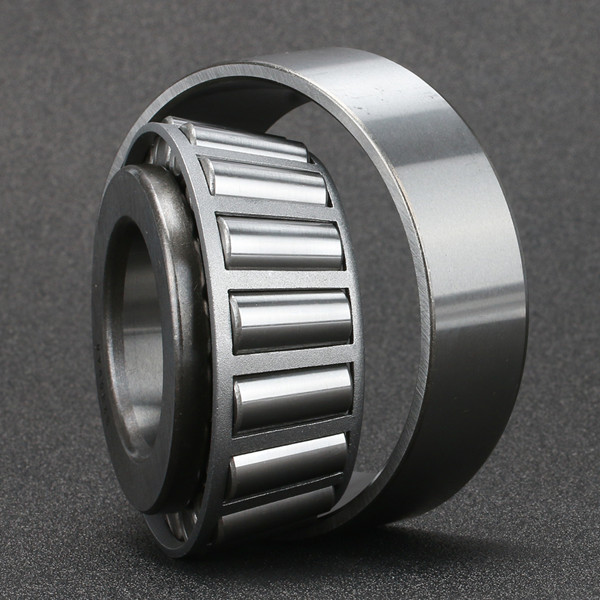

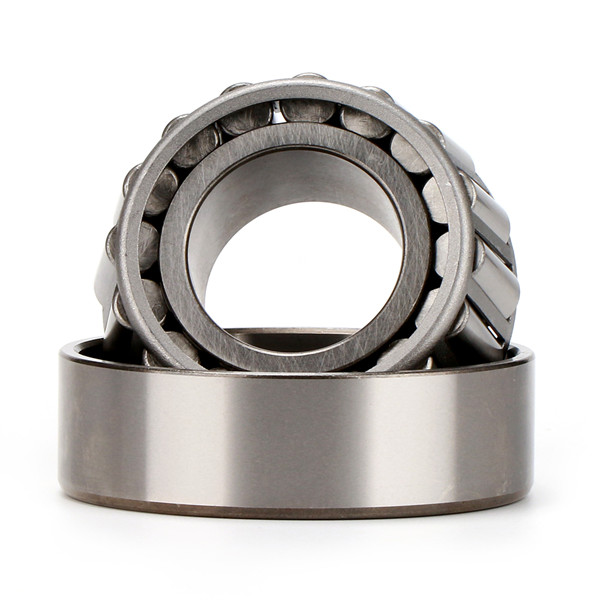

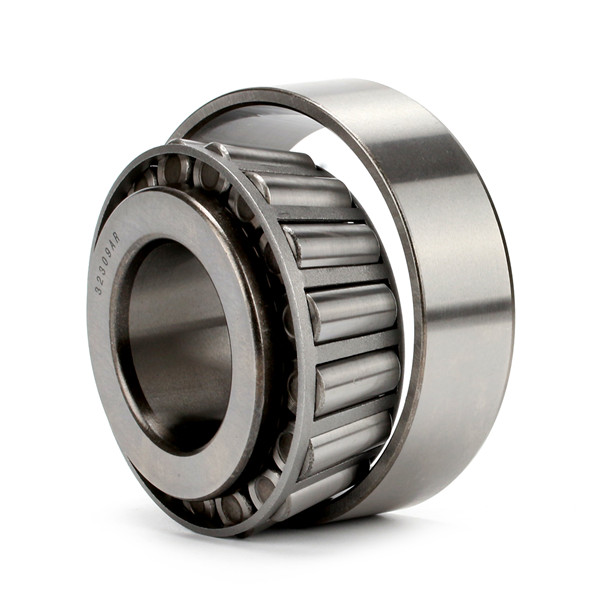

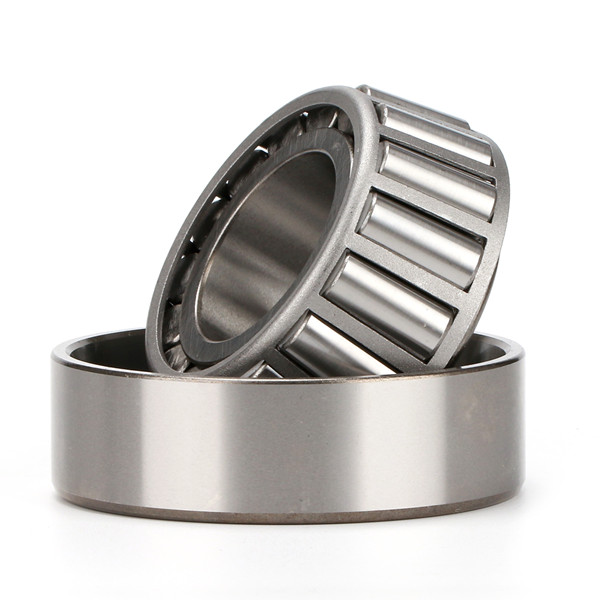

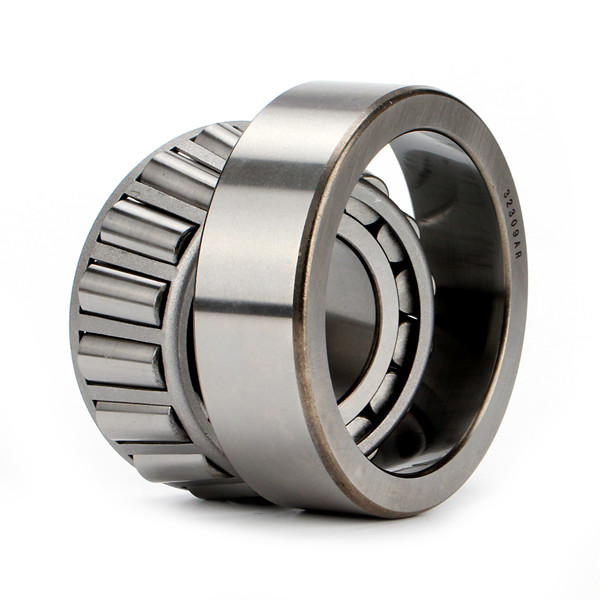

These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and axial loads evenly across the roller.
The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
This single tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems.
Product features:
Single row tapered roller bearings must be used either with a second bearing or as a matched pair
Components are separable and interchangeable that easy for maintenance
Features low friction and low noise that provide operational reliability
Offers heavy load carrying capacity and long service life
| Bearing No. | Dimensions(mm) | Weight | ||
| d | D | B | (kg) | |
| 32303 | 17 | 47 | 20.25 | 0.173 |
| 32304 | 20 | 52 | 22.25 | 0.23 |
| 32305 | 25 | 62 | 25.25 | 0.368 |
| 32306 | 30 | 72 | 28.75 | 0.562 |
| 32307 | 35 | 80 | 32.75 | 0.763 |
| 32308 | 40 | 90 | 35.25 | 1.04 |
| 32309 | 45 | 100 | 38.25 | 1.4 |
| 32310 | 50 | 110 | 42.25 | 1.89 |
| 32311 | 55 | 120 | 45.5 | 2.37 |
| 32312 | 60 | 130 | 48.5 | 2.9 |
| 32313 | 65 | 140 | 51 | 3.51 |
| 32314 | 70 | 150 | 54 | 4.34 |
| 32315 | 75 | 160 | 58 | 5.37 |
| 32316 | 80 | 170 | 61.5 | 6.38 |
| 32317 | 85 | 180 | 63.5 | 7.31 |
| 32318 | 90 | 190 | 67.5 | 8.81 |
| 32319 | 95 | 200 | 71.5 | 10.1 |
| 32320 | 100 | 215 | 77.5 | 13 |
| 32321 | 105 | 225 | 81.5 | 14.8 |
| 32309 | 45 | 100 | 38.25 | 1.4 |
