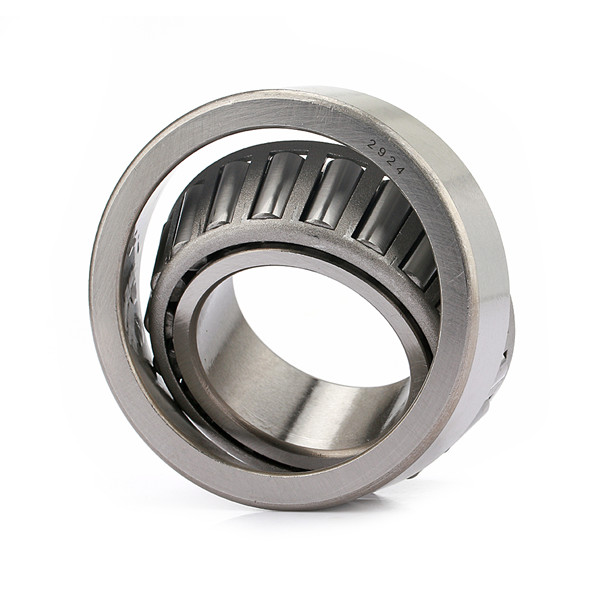

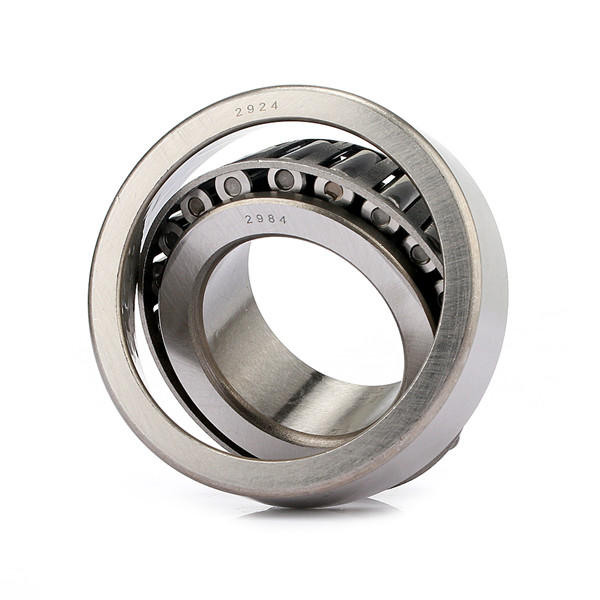

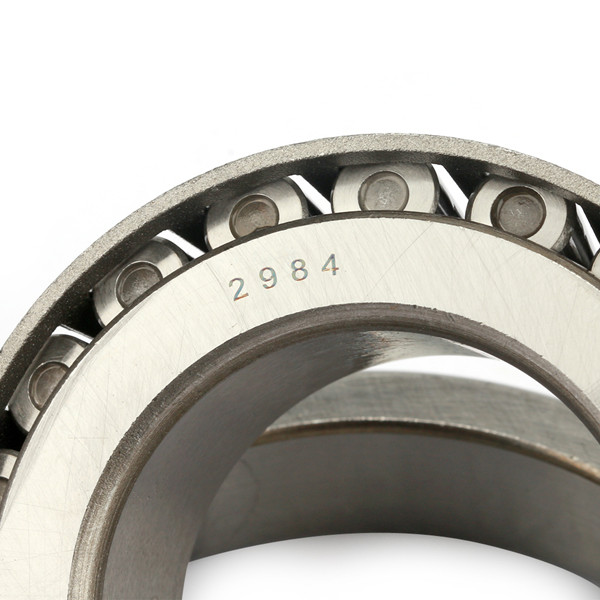

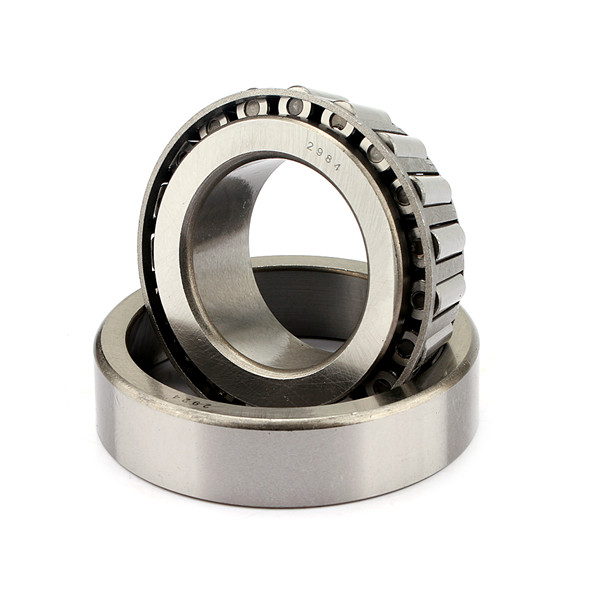

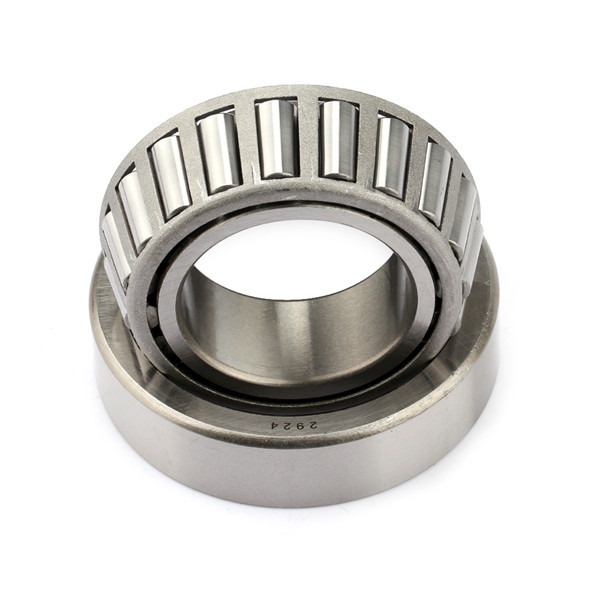

2984/2924
YWS or OEM
OEM Customized Services
Product Details
product information:
Internal diameter:46.038mm
External diameter:85mm
Width:25.4mm
Size: 46.038×85×25.4
M (kg):0.61
assembly type: Cone & Cup
cage material: Steel
Material:Chrome steel/GCr15/Stainless steel/ceramic
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：
This single cone, straight bore, steel tapered roller bearing matches with a single or double cup ( sold separately) to assemble into a complete tapered roller bearing, suitable for applications that support radial loads and one direction thrust loads. This single cone bearing works with both straight and flanged cups. Typically mounted in opposing pairs on a shaft to evenly distribute loads, this single cone (inner ring) is made of through-hardened alloy steel for durability, heat tolerance, and resistance to deformity under heavy loads. The rollers are heat-treated and coated with a thin layer of Austenite, increasing their compressive load capacity, corrosion resistance, and service life. The steel cage prevents the rollers from coming into contact during use, reducing friction, vibrations, and noise. As part of a separable tapered roller bearing unit, this single cone assembly has an open design that allows for lubrication and adjustments. This tapered roller bearing is suitable for use in high-load, moderate-speed applications such as automotive axle systems and conveyor systems in heavy duty industries such as mining, construction, and agriculture, among others.
Product features:
Single cone (inner ring) for connecting to compatible straight or flanged cups (outer rings, sold separately) to form a complete single tapered roller bearing
Supports both radial loads and thrust loads in one direction
Through-hardened alloy steel for strength and durability
Heat-treated rollers with a layer of Austenite that increases compressive load capacity, corrosion resistance, and service life
Steel cage evenly spaces rollers for reduced friction, vibration and noise
| New items | Specifications(dxDxB) | Weight/kg |
| A2031/A2126 | 7.938×31.991×10.008 | 0.050 |
| A2037/A2126 | 9.525×31.991×10.008 | 0.040 |
| A4044/A4138 | 11.112×34.988×10.998 | 0.060 |
| A2047/A2126 | 11.987×31.991×10.008 | 0.040 |
| A4049/A4138 | 12.680×34.988×10.998 | 0.050 |
| A4050/A4138 | 12.700×34.988×10.998 | 0.050 |
| 00050/00150 | 12.700×38.100×13.495 | 0.080 |
| A4059/A4138 | 14.987×34.988×10.998 | 0.050 |
| L21549/L21511 | 15.875×34.988×10.998 | 0.050 |
| A6062/A6157 | 15.875×39.992×12.014 | 0.070 |
| 03062/03162 | 15.875×41.275×14.288 | 0.090 |
| 15578/15520 | 25.400×57.150×17.462 | 0.240 |
| 11590/11520 | 15.875×42.862×14.288 | 0.100 |
| 17580/17520 | 15.875×42.862×16.670 | 0.120 |
| 05062/05185 | 15.875×47.000×14.381 | 0.130 |
| 09062/09195 | 15.875×49.225×19.845 | 0.200 |
| 09062/09194 | 15.875×49.225×23.020 | 0.210 |
| 21063/21212 | 15.875×53.975×22.225 | 0.260 |
| HM81649/HM81610 | 15.987×46.975×21.000 | 0.190 |
