china hot sale high precision high quality 32209 taper roller bearing
You are here: Home » Products » Tapered Roller Bearings » china hot sale high precision high quality 32209 taper roller bearing

china hot sale high precision high quality 32209 taper roller bearing

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 32209

  • YWS or OEM

  • OEM Customized Services

Availability:
Inquire

Product Details

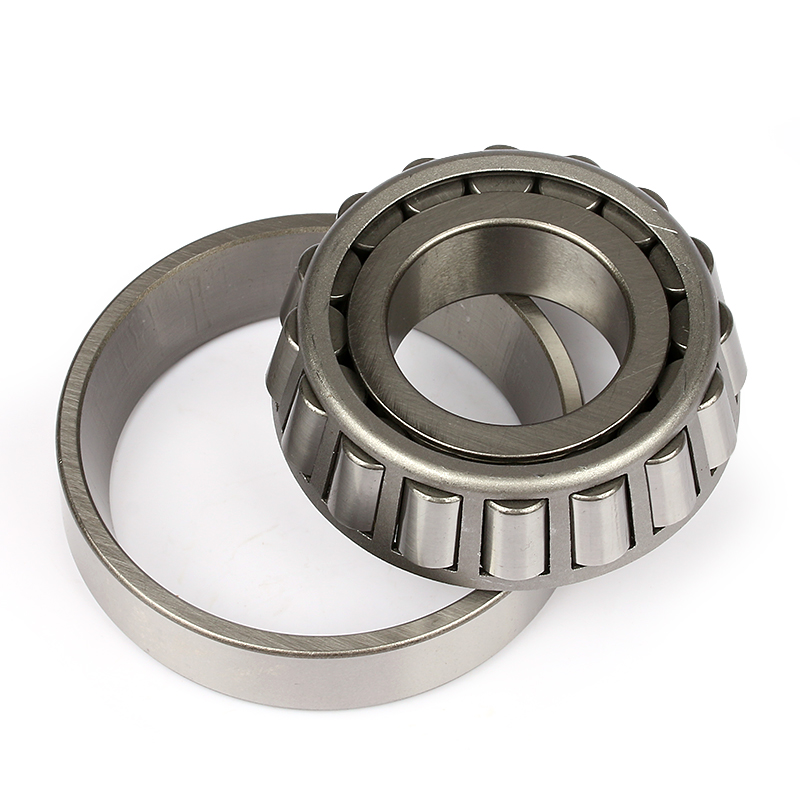

china hot sale high precision high quality 32209 taper roller bearing with low price


product information:


Internal diameter:45mm

External diameter:85mm

Width:24.75mm

Size: 45x85x24.75mm

Limiting Speed Grease:4200

Limiting Speed Oil:5500

Cr (KN):80.7

Cor (KN):104

M (kg):0.6

assembly type: Cone & Cup

cage material: Steel

Material:Chrome steel/GCr15/Stainless steel/ceramic

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions


Product description：


Tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

Widest choice including both inch and metric sizes

Engineered to deliver higher speeds, heavier loads and longer life

Unrivaled technology and engineering support

Single row bearings are the most common configuration

An assembly includes separable inner (cone) and outer (cup) rings



New itemsSpecifications(dxDxB)Weight/kg
A2031/A21267.938×31.991×10.0080.050
A2037/A21269.525×31.991×10.0080.040
A4044/A413811.112×34.988×10.9980.060
A2047/A212611.987×31.991×10.0080.040
A4049/A413812.680×34.988×10.9980.050
A4050/A413812.700×34.988×10.9980.050
00050/0015012.700×38.100×13.4950.080
A4059/A413814.987×34.988×10.9980.050
L21549/L2151115.875×34.988×10.9980.050
A6062/A615715.875×39.992×12.0140.070
03062/0316215.875×41.275×14.2880.090
15578/1552025.400×57.150×17.4620.240
11590/1152015.875×42.862×14.2880.100
17580/1752015.875×42.862×16.6700.120
05062/0518515.875×47.000×14.3810.130
09062/0919515.875×49.225×19.8450.200
09062/0919415.875×49.225×23.0200.210
21063/2121215.875×53.975×22.2250.260
HM81649/HM8161015.987×46.975×21.0000.190
