CSK25
YWS or OEM
OEM Customized Services
Product Details
product information:
Structure:Deep groove ball bearing
Type:Ball, ball bearing
Brand Name:YWS

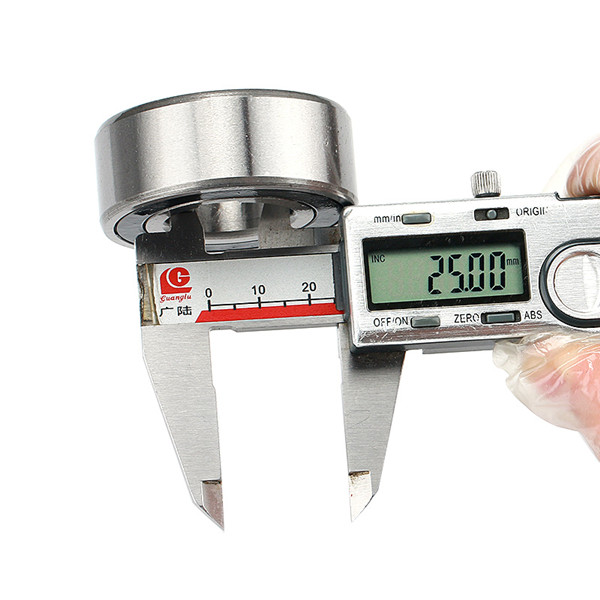

Internal diameter:25mm
External diameter:52mm
Width:15mm
size:25x52x15mm
weight:0.028kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Tips: Please contact us for details of the required products.
Product description：

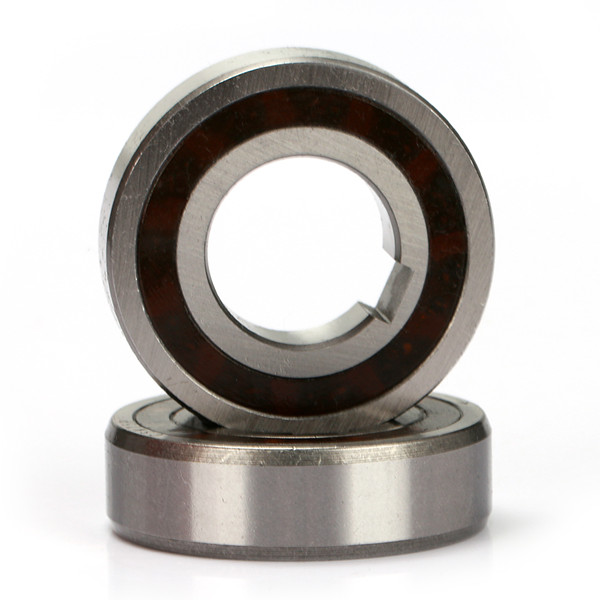

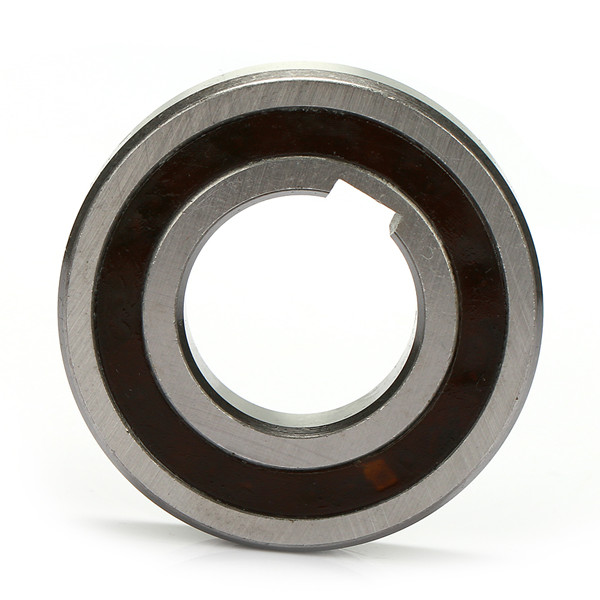

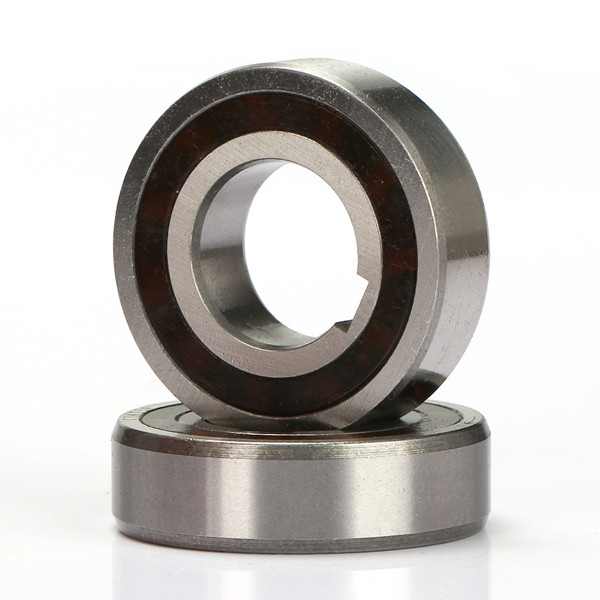

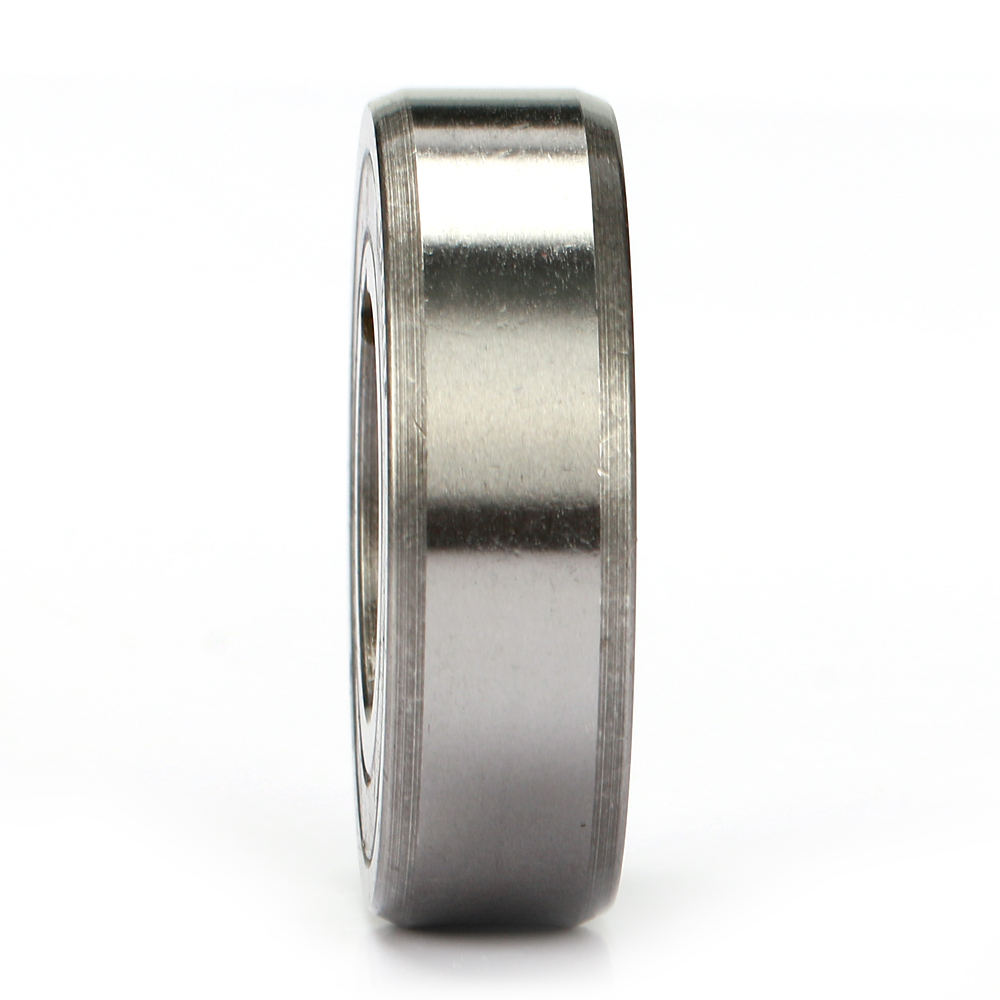

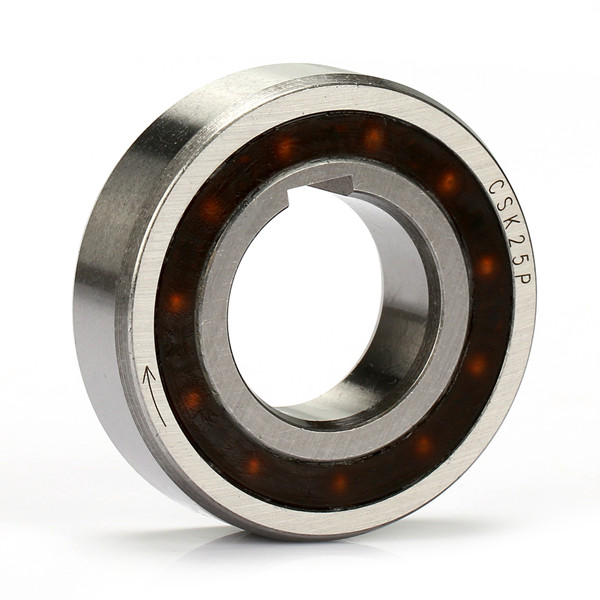

This CSK25 one-way ball bearing with sprag freewheel backstop clutch is made of chrome steel, is double shielded, and has a steel cage. It has a 25 mm inside diameter, a 52 mm outside diameter, and a 15 mm depth. This single row ball bearing is suitable for applications that support radial loads. This bearing's inner and outer races are made of chrome steel for durability and resistance to deformity under heavy loads. It has Normal radial internal clearance for applications that do not involve thermal expansion or atypical precision. Metal shields on both sides of the bearing keep the lubricant in and contaminants out. A steel cage evenly spaces rollers for reduced friction, vibration, and noise. This bearing has a sprag clutch bearing that rotates in only one direction to provide backstop functionality for applications requiring stoppage of rotation without rollback.
Product features：
Single row bearing for supporting radial loads
Chrome steel for durability and resistance to deformity under heavy loads
Normal radial internal clearance for applications that do not involve thermal expansion or atypical precision
Metal shields on both sides of the bearing keep the lubricant in and contaminants out
| Model NO. | nominal torque Tn(N.m) | boundary dimension | limit speed (r/min) | bearing series | inner ring keyway (b×t) | Outer ring keyway (b×t) | |||||
| bore d | OD | breadth L | bore | outer ring | |||||||
| grease lubrication | oil lubrication | grease lubrication | oil lubrication | ||||||||
| CSK12 | 7.4 | 12 | 32 | 10 | 10000 | 11000 | 5500 | 6500 | 6201 | ||
| CSK15 | 13.5 | 15 | 35 | 11 | 8400 | 9400 | 5000 | 6000 | 6202 | 5×1.5 | 2×0.6 |
| CSK17 | 24.5 | 17 | 40 | 12 | 6300 | 7800 | 4200 | 5200 | 6203 | 5×1.8 | 2×1.0 |
| CSK20 | 40 | 20 | 47 | 14 | 6300 | 7800 | 4200 | 5200 | 6204 | 6×2.0 | 3×1.5 |
| CSK25 | 68 | 25 | 52 | 15 | 4800 | 5900 | 3400 | 4200 | 6205 | 8×2.0 | 6×2.0 |
| CSK30 | 110 | 30 | 62 | 16 | 4000 | 5000 | 2800 | 3500 | 6206 | 10×2.3 | 6×2.0 |
| CSK35 | 140 | 35 | 72 | 17 | 3500 | 4000 | 2200 | 2800 | 6207 | 10×2.4 | 8×2.5 |
| CSK40 | 260 | 40 | 80 | 22 | 3000 | 3800 | 2000 | 2500 | 12×2.4 | 10×3.0 | |
| CSK12 2RS | 7.4 | 12 | 32 | 14 | 10000 | 11000 | 5500 | 6500 | |||
| CSK15 2RS | 13.5 | 15 | 35 | 16 | 8400 | 9400 | 5000 | 6000 | 5×1.5 | 2×0.6 | |
| CSK17 2RS | 24.5 | 17 | 40 | 17 | 6300 | 7800 | 4200 | 5200 | 5×1.8 | 2×1.0 | |
| CSK20 2RS | 40 | 20 | 47 | 19 | 6300 | 7800 | 4200 | 5200 | 6×2.0 | 3×1.5 | |
| CSK25 2RS | 68 | 25 | 52 | 20 | 4800 | 5900 | 3400 | 4200 | 8×2.0 | 6×2.0 | |
| CSK30 2RS | 110 | 30 | 62 | 21 | 4000 | 5000 | 2800 | 3500 | 10×2.3 | 6×2.0 | |
| CSK35 2RS | 140 | 35 | 72 | 22 | 3500 | 4000 | 2200 | 2800 | 10×2.4 | 8×2.5 | |
| CSK40 2RS | 260 | 40 | 80 | 27 | 3000 | 3800 | 2000 | 2500 | 12×2.4 | 10×3.0 | |
