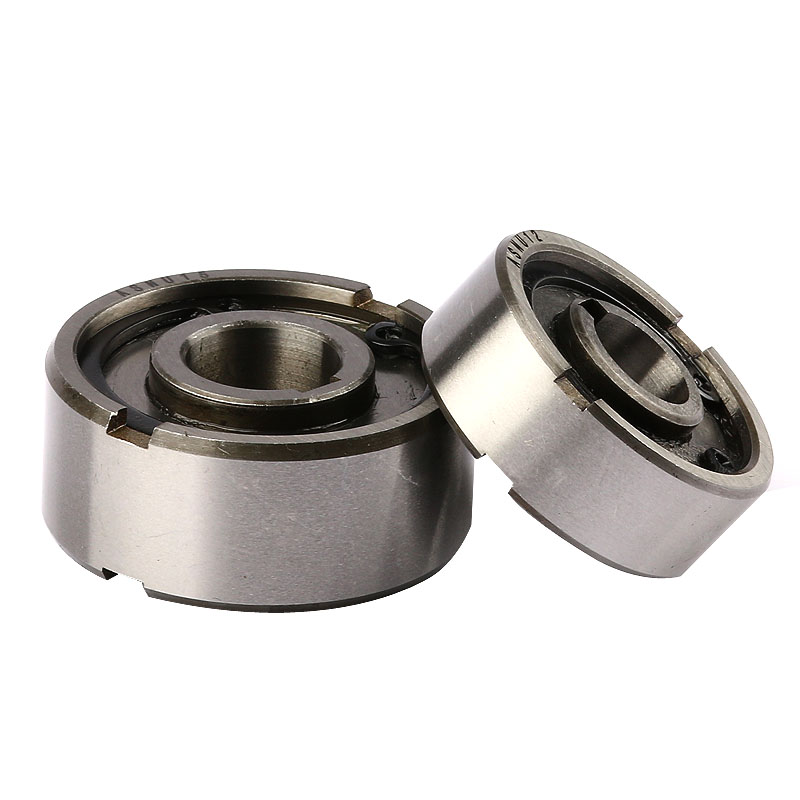

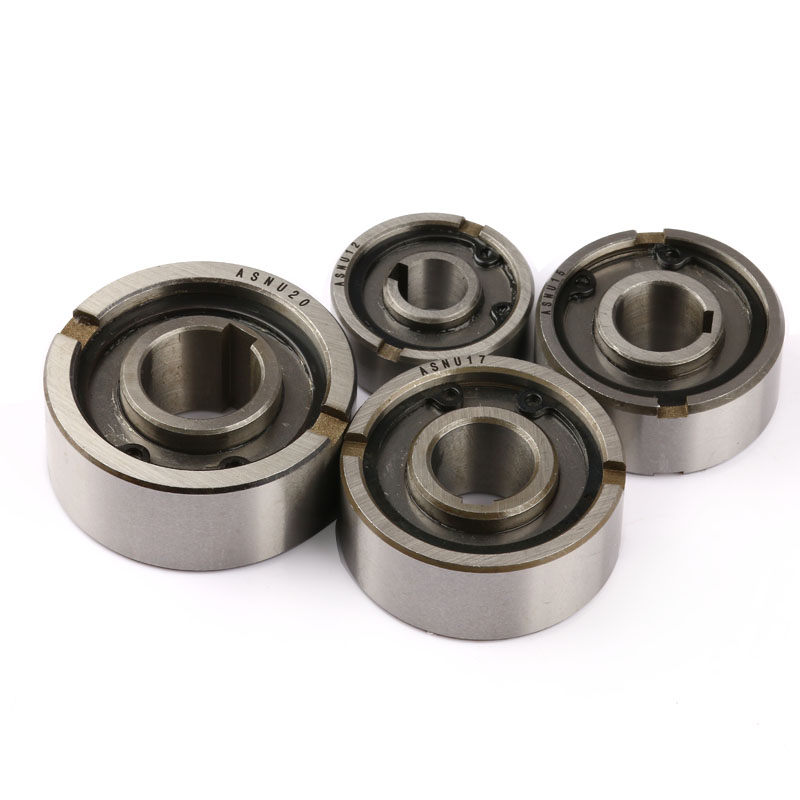

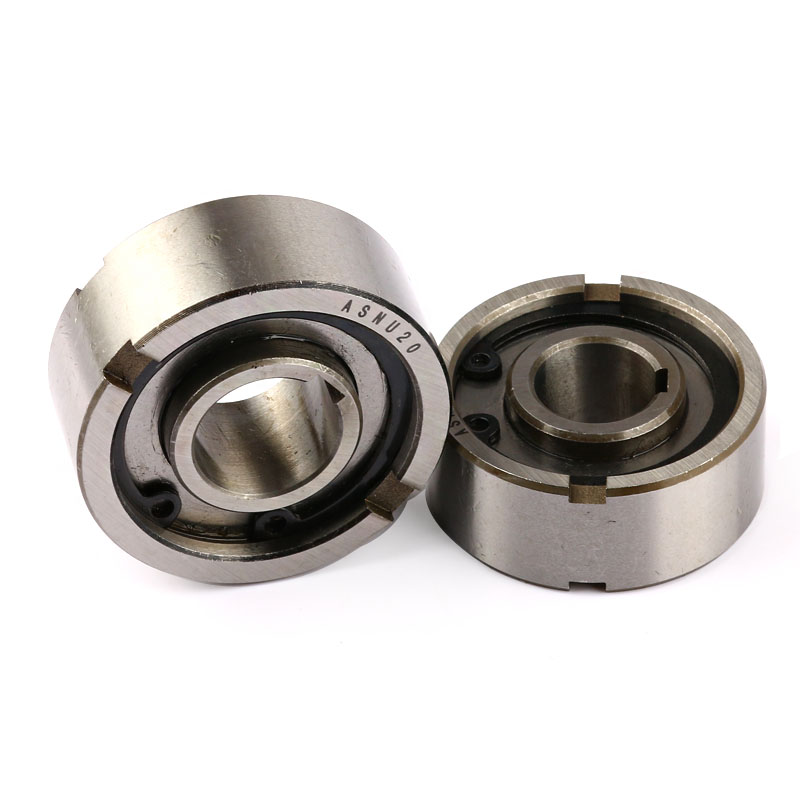

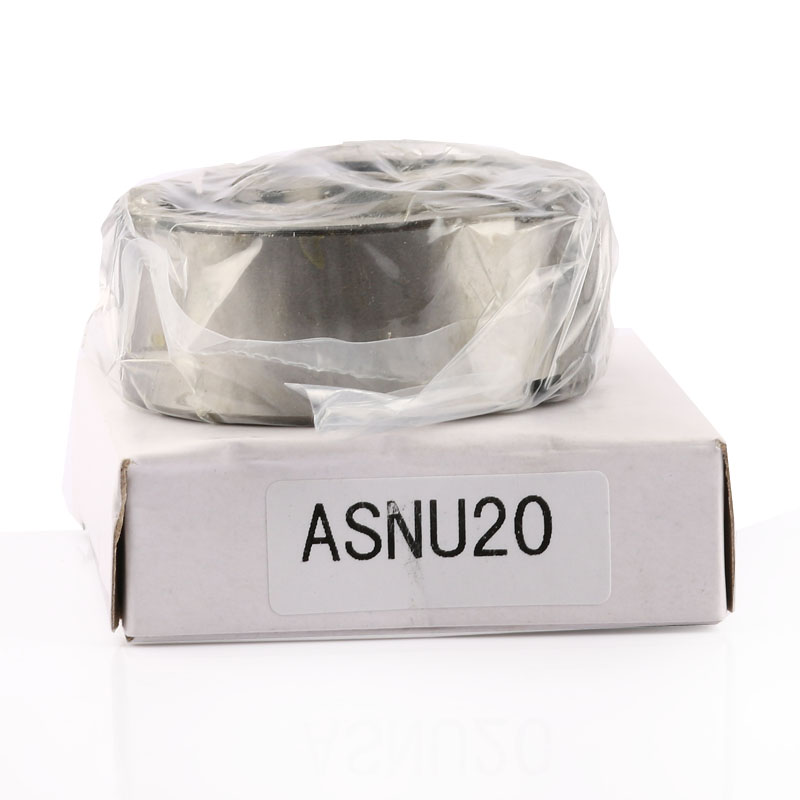

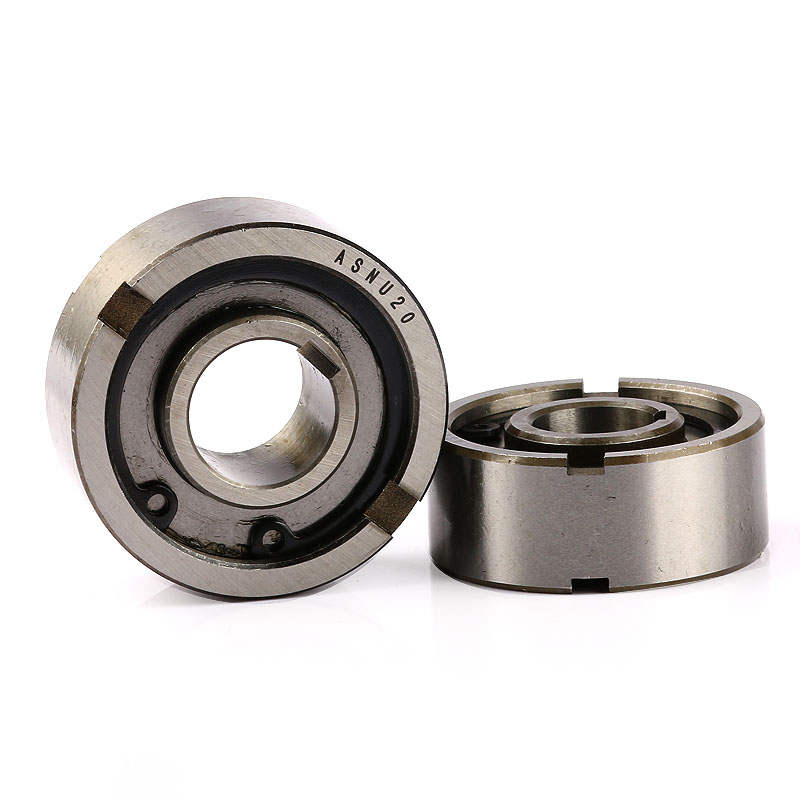

ASNU20
YWS or OEM
OEM Customized Services
Product Details
product information:
Item: ASNU20
Structure:clutch bearing
Type:clutch bearing
Brand Name:YWS
Internal diameter:20mm
External diameter:52mm
width：21mm
size:20x52x21mm
Torque: 62 TKN
Max Torque: 155 TKN
Inner Race Overrun: 2,100 RPM
Outer Race Overrun: 3,100 RPM
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：
ASNU20 One Way Clutch One Clutch ASNU20 = NFS20 ASNU20 is a one-way clutch. One way Sprag/Clutch Freewheel and also called as Backstops. ASNU20 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
| Bearing NO. | nominal torque Tn(N.m) | boundary dimension | limit speed (r/min) | bearing series | weight (kg) | |||||
| bore d | OD | breadth L | bore | outer ring | ||||||
| grease lubrication | oil lubrication | grease lubrication | oil lubrication | |||||||
| CSK12 | 7.4 | 12 | 32 | 10 | 10000 | 11000 | 5500 | 6500 | 6201 | 0.04 |
| CSK15 | 13.5 | 15 | 35 | 11 | 8400 | 9400 | 5000 | 6000 | 6202 | 0.06 |
| CSK17 | 24.5 | 17 | 40 | 12 | 6300 | 7800 | 4200 | 5200 | 6203 | 0.07 |
| CSK20 | 40 | 20 | 47 | 14 | 6300 | 7800 | 4200 | 5200 | 6204 | 0.11 |
| CSK25 | 68 | 25 | 52 | 15 | 4800 | 5900 | 3400 | 4200 | 6205 | 0.14 |
| CSK30 | 110 | 30 | 62 | 16 | 4000 | 5000 | 2800 | 3500 | 6206 | 0.21 |
| CSK35 | 140 | 35 | 72 | 17 | 3500 | 4000 | 2200 | 2800 | 6207 | 0.3 |
| CSK40 | 260 | 40 | 80 | 22 | 3000 | 3800 | 2000 | 2500 | 0.5 | |
| CSK12 2RS | 7.4 | 12 | 32 | 14 | 10000 | 11000 | 5500 | 6500 | 0.05 | |
| CSK15 2RS | 13.5 | 15 | 35 | 16 | 8400 | 9400 | 5000 | 6000 | 0.07 | |
| CSK17 2RS | 24.5 | 17 | 40 | 17 | 6300 | 7800 | 4200 | 5200 | 0.09 | |
| CSK20 2RS | 40 | 20 | 47 | 19 | 6300 | 7800 | 4200 | 5200 | 0.154 | |
| CSK25 2RS | 68 | 25 | 52 | 20 | 4800 | 5900 | 3400 | 4200 | 0.175 | |
| CSK30 2RS | 110 | 30 | 62 | 21 | 4000 | 5000 | 2800 | 3500 | 0.27 | |
| CSK35 2RS | 140 | 35 | 72 | 22 | 3500 | 4000 | 2200 | 2800 | 0.4 | |
| CSK40 2RS | 260 | 40 | 80 | 27 | 3000 | 3800 | 2000 | 2500 | 0.6 | |
Sincerely welcome to send enquiry to us!!!
