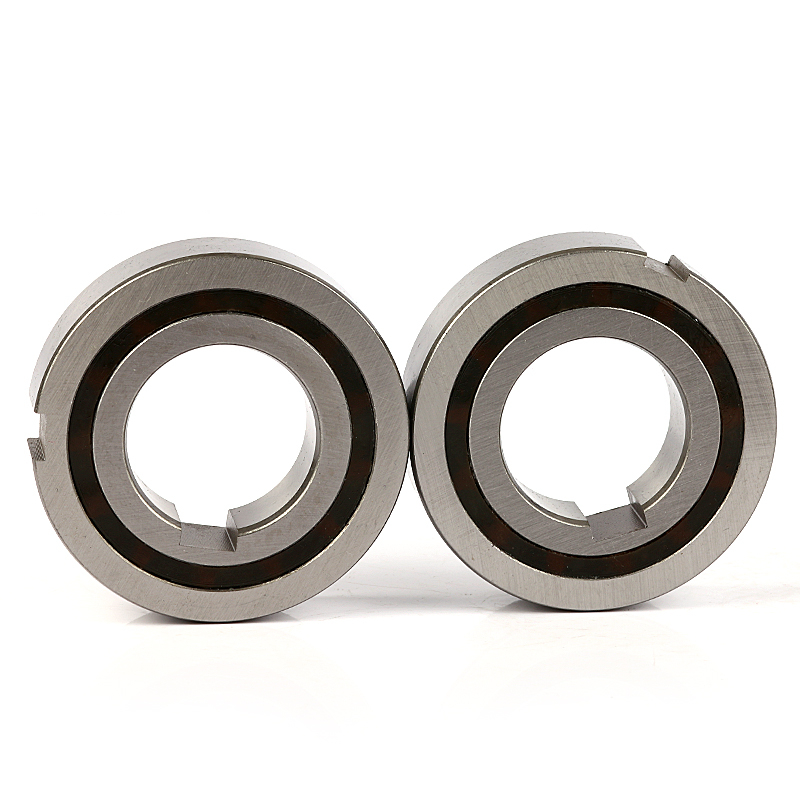

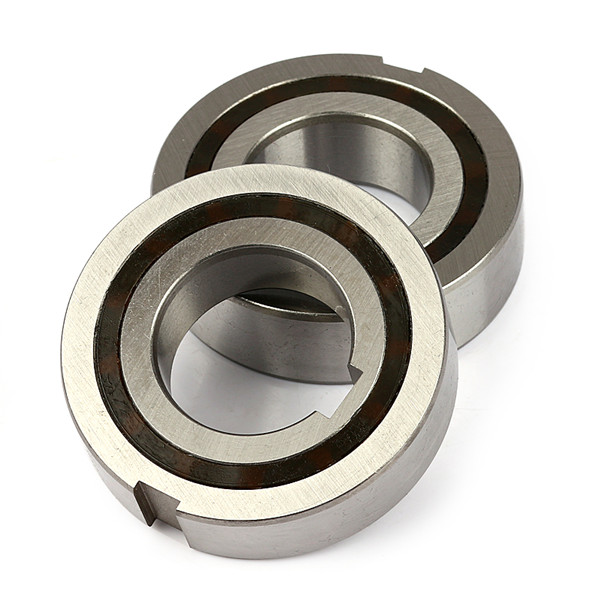

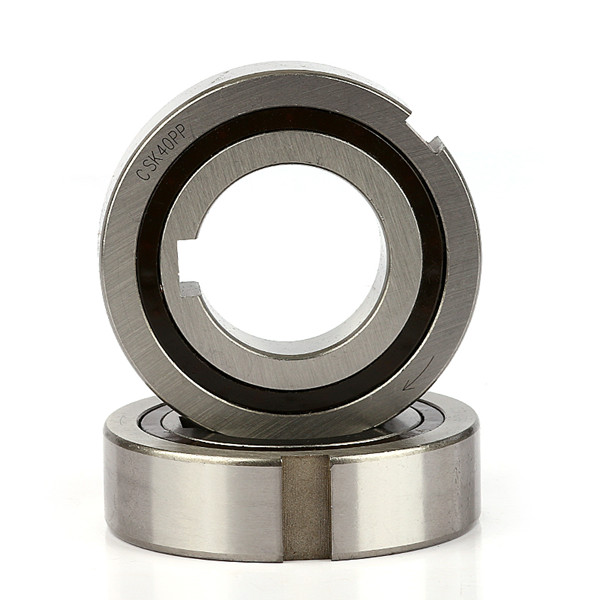

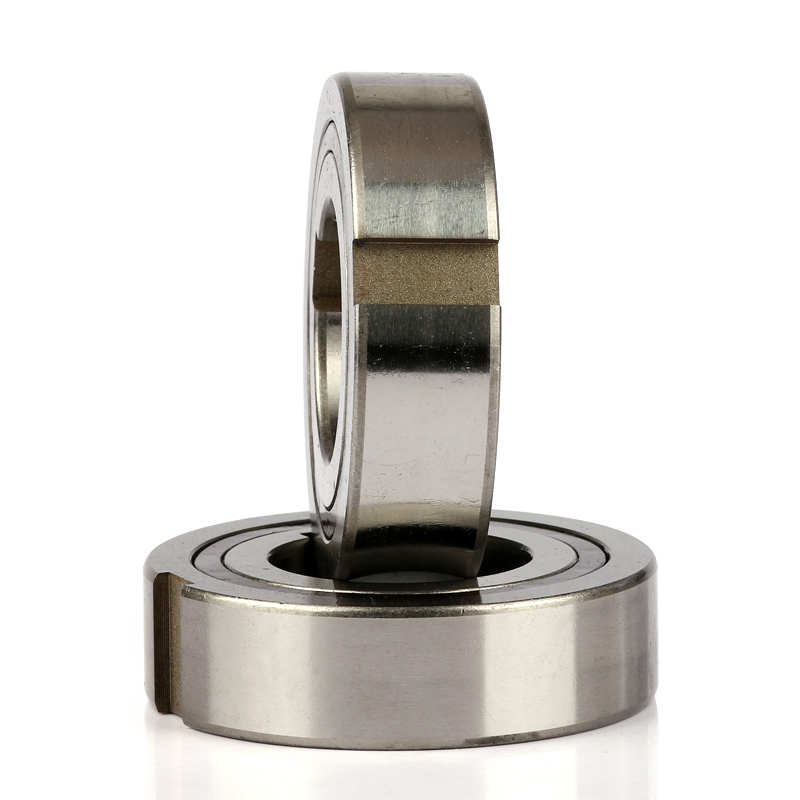

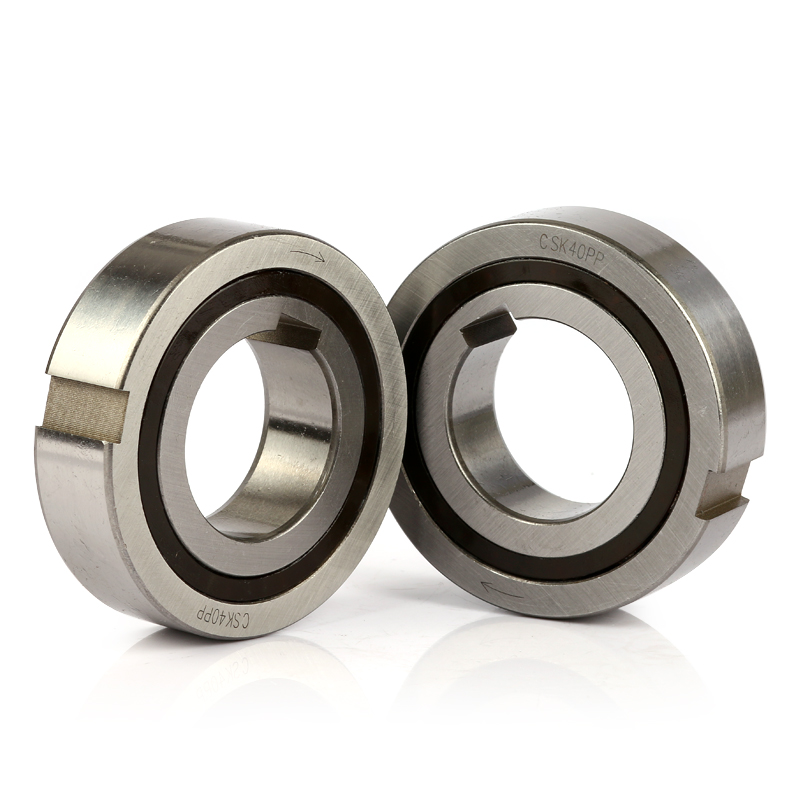

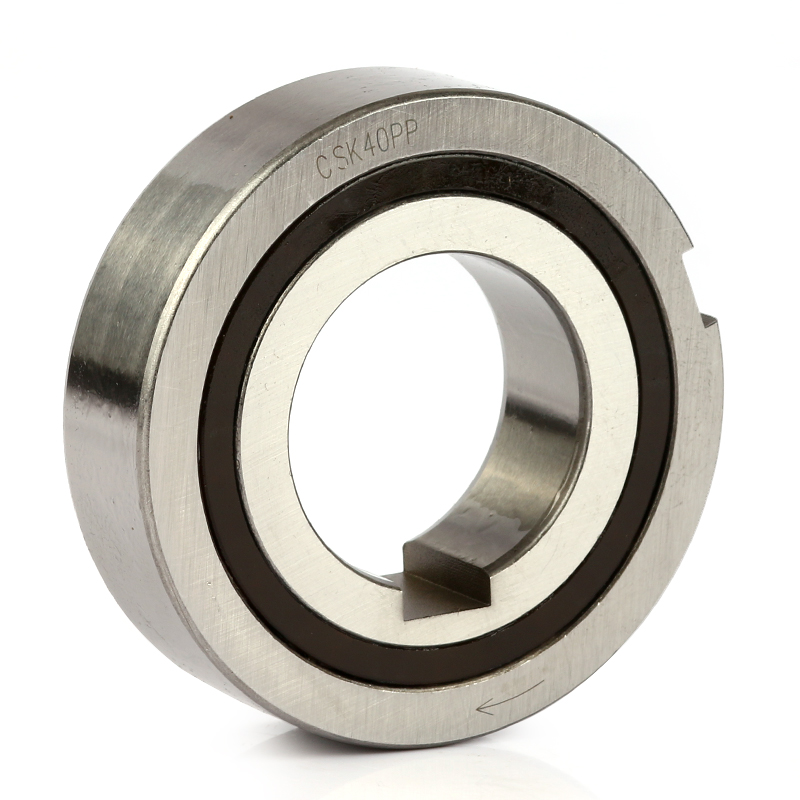

CSK40
YWS or OEM
OEM Customized Services
Product Details
product information:
Structure:One Way clutch bearing
Type:One Way clutch bearing
Brand Name:YWS
Internal diameter:40mm
External diameter:80mm
Width:22mm
size:40x80x22mm
Material:Chrome steel/GCr15/Stainless steel
Is customized: Yes (Drawings required)
Wholesale and freight: To provide you with accurate solutions
Tips: Please contact us for details of the required products.
Product description：
CSK40 One-way (clutch) Bearing The CSK series is a one-way (clutch) bearing. One way Bearing Sprag/Clutch Freewheel and also called as Backstops. The one-way bearings are used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
Product features：
Single-row ball bearing supports integrated sprag clutch
Chrome steel for durability and resistance to deformity under heavy loads
CN (normal)radial internal clearance for applications that do not involve thermal expansion or atypical precision
Metal shields on both sides of the bearing keep the lubricant in and contaminants out
Steel cage evenly spaces rollers for reduced friction, vibration, and noise
Model NO. | nominal torque | boundary dimension | limit speed (r/min) | bearing series | inner | Outer ring keyway | |||||
Tn(N.m) | bore | OD | breadth | bore | outer | ring keyway | (b×t) | ||||
| d | L | ring | (b×t) |
| ||||||
|
|
| grease lubrication | oil lubrication | grease lubrication | oil lubrication |
|
| |||
CSK12 | 7.4 | 12 | 32 | 10 | 10000 | 11000 | 5500 | 6500 | 6201 |
|
|
CSK15 | 13.5 | 15 | 35 | 11 | 8400 | 9400 | 5000 | 6000 | 6202 | 5×1.5 | 2×0.6 |
CSK17 | 24.5 | 17 | 40 | 12 | 6300 | 7800 | 4200 | 5200 | 6203 | 5×1.8 | 2×1.0 |
CSK20 | 40 | 20 | 47 | 14 | 6300 | 7800 | 4200 | 5200 | 6204 | 6×2.0 | 3×1.5 |
CSK25 | 68 | 25 | 52 | 15 | 4800 | 5900 | 3400 | 4200 | 6205 | 8×2.0 | 6×2.0 |
CSK30 | 110 | 30 | 62 | 16 | 4000 | 5000 | 2800 | 3500 | 6206 | 10×2.3 | 6×2.0 |
CSK35 | 140 | 35 | 72 | 17 | 3500 | 4000 | 2200 | 2800 | 6207 | 10×2.4 | 8×2.5 |
CSK40 | 260 | 40 | 80 | 22 | 3000 | 3800 | 2000 | 2500 |
| 12×2.4 | 10×3.0 |
CSK12 2RS | 7.4 | 12 | 32 | 14 | 10000 | 11000 | 5500 | 6500 |
|
|
|
CSK15 2RS | 13.5 | 15 | 35 | 16 | 8400 | 9400 | 5000 | 6000 |
| 5×1.5 | 2×0.6 |
CSK17 2RS | 24.5 | 17 | 40 | 17 | 6300 | 7800 | 4200 | 5200 |
| 5×1.8 | 2×1.0 |
CSK20 2RS | 40 | 20 | 47 | 19 | 6300 | 7800 | 4200 | 5200 |
| 6×2.0 | 3×1.5 |
CSK25 2RS | 68 | 25 | 52 | 20 | 4800 | 5900 | 3400 | 4200 |
| 8×2.0 | 6×2.0 |
CSK30 2RS | 110 | 30 | 62 | 21 | 4000 | 5000 | 2800 | 3500 |
| 10×2.3 | 6×2.0 |
CSK35 2RS | 140 | 35 | 72 | 22 | 3500 | 4000 | 2200 | 2800 |
| 10×2.4 | 8×2.5 |
CSK40 2RS | 260 | 40 | 80 | 27 | 3000 | 3800 | 2000 | 2500 |
| 12×2.4 | 10×3.0 |
