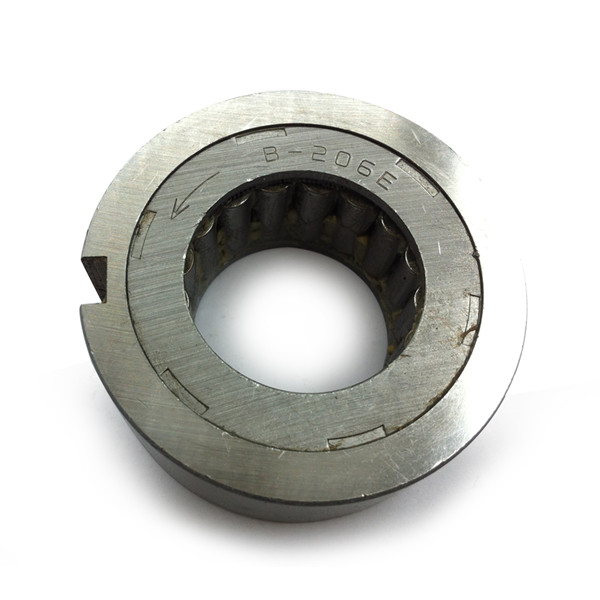

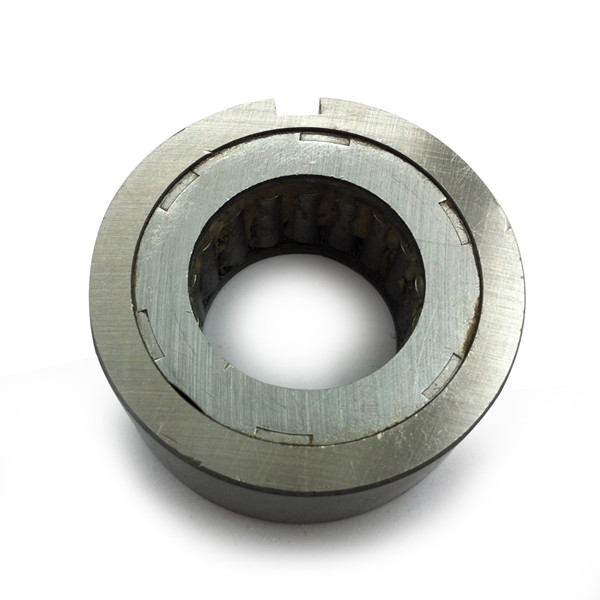

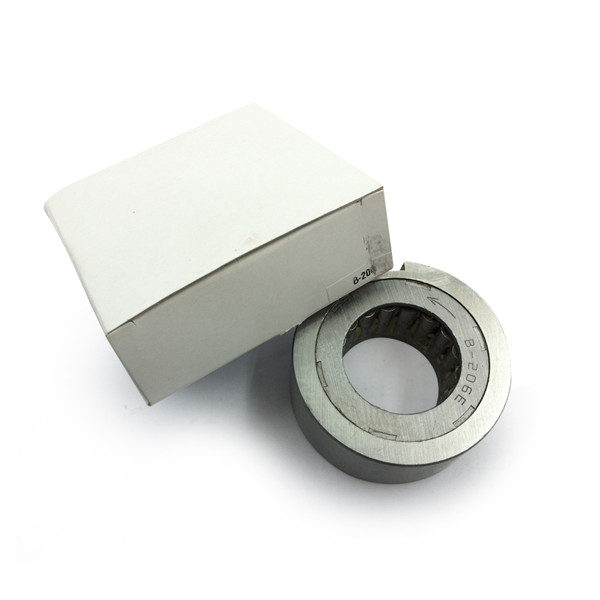

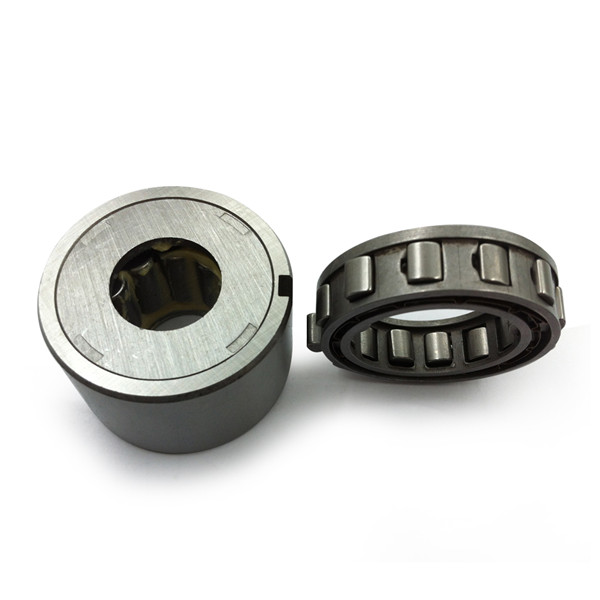

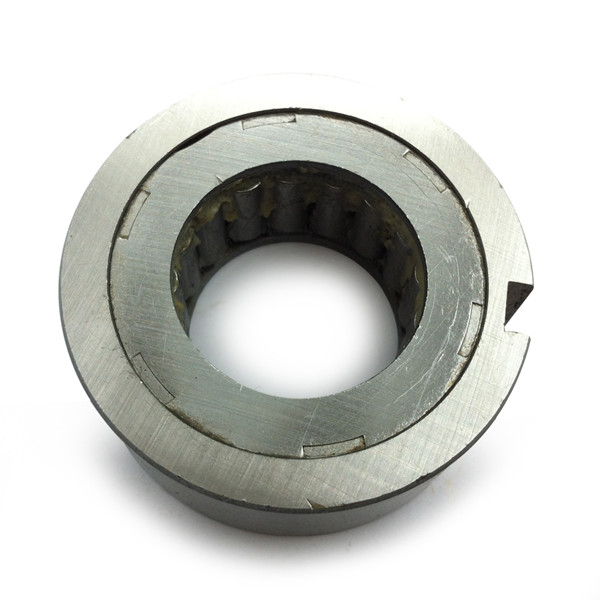

Sprag Freewheel Backstop cam Clutch bearing one way clutch bearing B206e B206

product information:

Structure:one way clutch bearing

Type:one way clutch bearing

Brand Name:YWS

Shaft size：32.766mm

Outer race h7: 62mm

Thickness: 28mm

weight：0.022kg

Key way: 7.0×4.0

Overrunning Speed (r/min)

inner race(r/min): 1800

outer race(r/min): 350

Drag torque(N.m):235

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Cam clutch MZ series is a type sprag freewheel supported by double  bearings used for overrunning speed between 600-1500rmin, torque 180-8000 N.m, even highest torque more than 70000N.m. It allows roation in package machine, derrick machine, metallurgy machine, etc.

Product Feature：

1. Outer race surface ground finish

2. Outer race surface centering groove finish

(refer to the use's manual)

Sincerely welcome to send enquiry to us!!!
